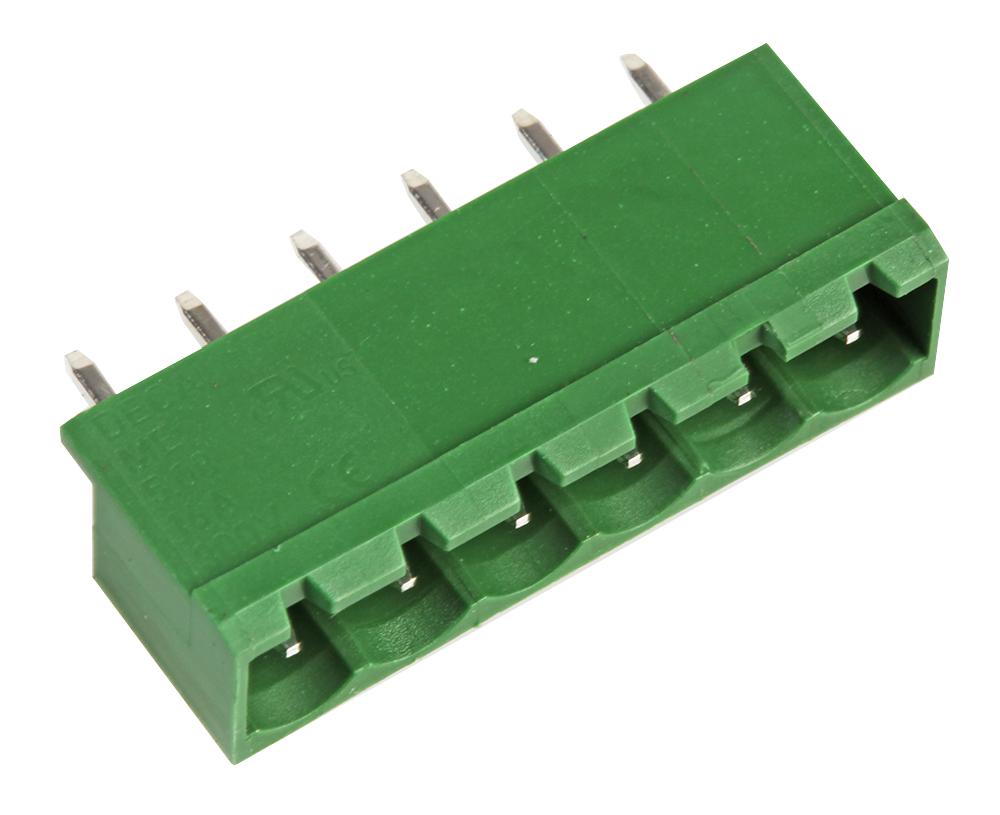

MULTICOMP PRO MC000204 Vertical Terminal Block
Pluggable terminal blocks offer easy, secure connections for industrial wiring applications with a rated current of 12A and voltage of 300V AC. Crafted from green polyamide 66 insulative material, these blocks feature brass solder pins with tin plating for durability and corrosion resistance. Designed for a wide operating temperature range from -40°C to +105°C, they provide high insulation resistance exceeding 2,000MQ at 500V DC and withstand insulation voltages up to 2,000V AC. Available in various pole configurations, these vertical headers ensure reliable, efficient connections in control panels and electronic assemblies. Compact, easy-to-mount, and RoHS compliant, they are ideal for industrial projects requiring robust terminal connections.
MULTICOMP PRO MC000204 Vertical Terminal Block Specifications:
- Rated Current: 12Amperes
- Rated Voltage: 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000MQ 500V DC
- Operating Temperature: -40°C to +105°C
- Material: Polyamide 66 - Green
- Solder Pin Material: Brass Tin Plated
- Dimensions: Length varies with pole number; Pitch: 5.08mm (0.2 inch)
- Pole options: 8, 10, 12 poles (e.g., 06 Way: MC000204)
Buy the Multicomp Series Vertical Terminal Block: MC000204
Enhance your electronic assemblies with our high-quality Vertical Terminal Blocks. Rated for 12A and 300V AC, these reliable connectors feature sturdy brass pins, durable polyamide insulation, and high insulation resistance exceeding 2000MQ. Designed for easy installation and compatible with various pole configurations, they are suitable for industrial control panels, automation systems, and electronic projects. RoHS compliant and operating efficiently from -40°C to +105°C, these terminal blocks guarantee safe, stable, and secure electrical connections. Purchase online today for quality and durability you can trust.
Order your Multicomp Series 6 Way Vertical Terminal Block today and ensure reliable, high-quality wiring connections for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000204?
You can click on the BUY or RFQ button to purchase MC000204 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000204?
You can download the MC000204 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000204?
MULTICOMP PRO
