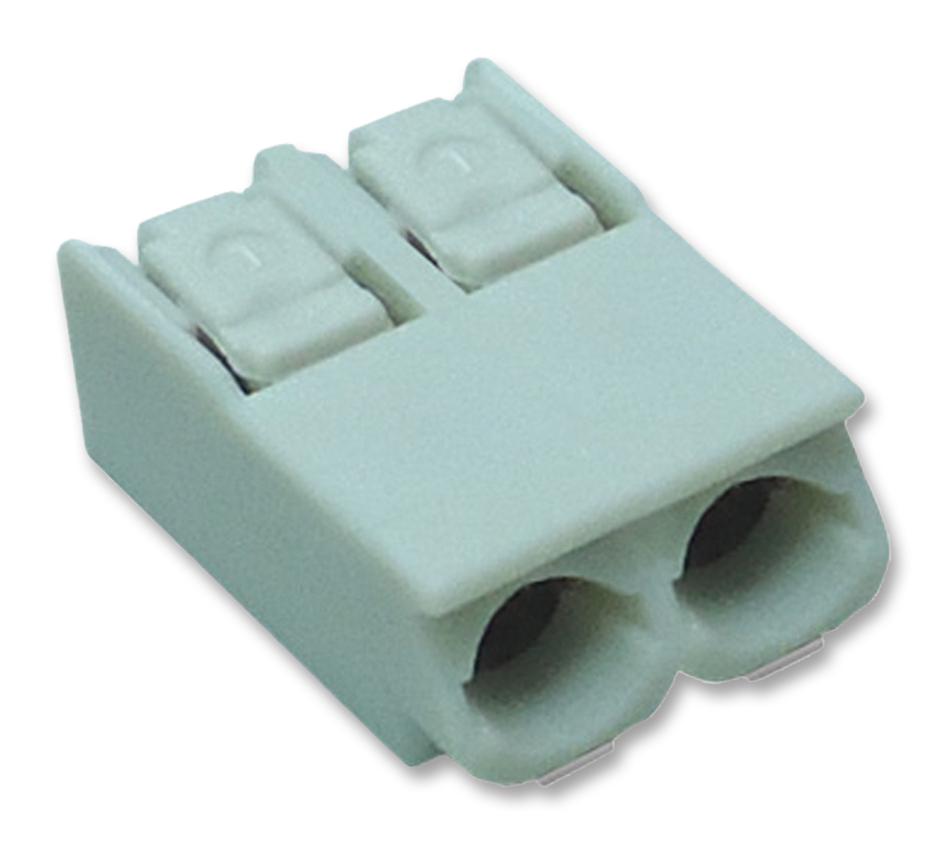

MULTICOMP PRO MC000780 SMD Terminal Block
This SMD Terminal Block features a 4mm pitch and is designed for reliable connections in electronic assemblies and industrial applications. Made from durable polyamide 6.6 with copper contacts, it provides excellent insulation and corrosion resistance, with tin plating on contacts for enhanced electrical performance. Suitable for wire ranges of 18-24 AWG with a strip length of 8-9mm, it withstands voltages up to 1,500V AC and temperatures from -60°C to +105°C. Available in 2 poles, it ensures secure, easy-to-maintain connections in compact electronic designs.
MULTICOMP PRO MC000780 SMD Terminal Block Specifications:
- Pitch: 4mm
- Wire Range: 18-24 AWG
- Wire Strip Length: 8-9mm
- Current Rating: 9A AC (1 Pole), 9A AC (2-3 Poles)
- Voltage Withstand: 1500V AC
- Insulation Resistance: >2,000 MΩ at DC 500V
- Temperature Range: -60°C to +105°C
- Contact Material: Copper, Tin plated
- Body Material: Polyamide 6.6
- Color: Grey
- Pole options: 1, 2, or 3 poles
- Dimensions (approximate): Pole 1 - 8mm, Pole 2 - 12mm, Pole 3 - 16mm lengths
- Reel Diameter: 13 inches (330mm)
- Pack Unit: 21,300 pieces per reel
Buy the Multicomp 2 Pole U+2013 Reliable SMD Terminal Block for Industrial Applications
Purchase the reliable SMD Terminal Block with a 4mm pitch from Multicomp online today. Designed for high voltage withstand, excellent insulation, and durability, this terminal block supports wire ranges of 18-24 AWG and handles temperatures from -60°C to +105°C. Its compact size and high current rating make it perfect for electronics, industrial automation, and control systems. With thousands available per reel, order now to ensure efficient and secure connections in your electronic projects and manufacturing processes.
Buy Multicomp 2 Pole SMD Terminal Block now and experience secure, high-performance connections ideal for industrial electronics and assembly lines.
