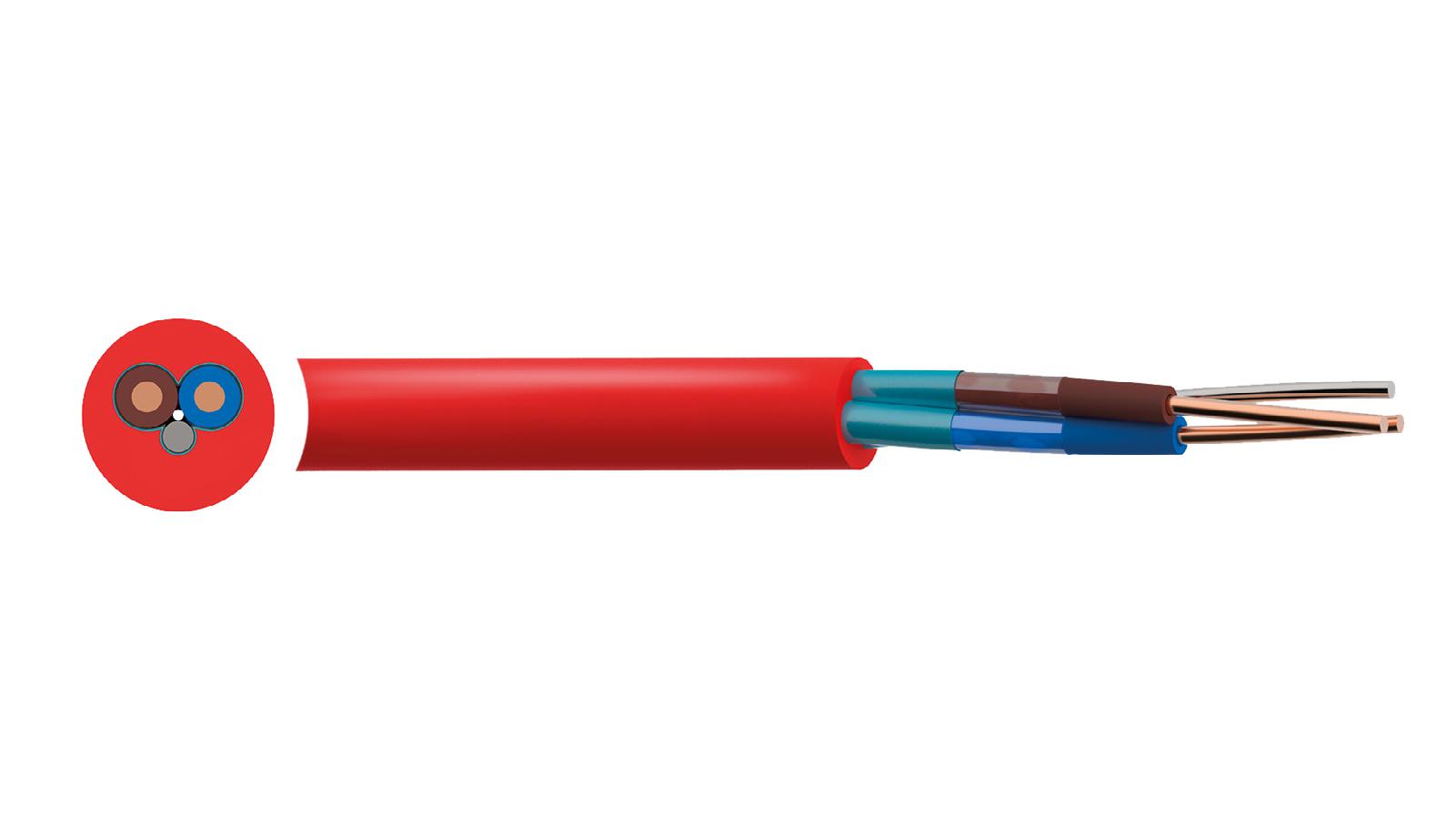

MULTICOMP-PRO MP002421 fire-resistant multicore cable
This fire-resistant multicore cable with a 1.5mm² cross-sectional area is designed for critical fire detection, alarm, and emergency lighting circuits. Constructed with high-performance silicone rubber insulation and a low smoke zero halogen sheath, it ensures safety and durability in fire situations. It features solid class 1 copper conductors, multiple cores with color-coded insulation, and an overall screen for electromagnetic interference protection. Certified by BASEC and compliant with relevant standards, this cable provides reliable performance up to 300/500V and temperatures from -40°C to +90°C, suitable for various fire safety applications.
MULTICOMP-PRO MP002421 fire-resistant multicore cable Specifications:
- Voltage Rating: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Minimum Bending Radius: 6 x overall diameter
- Conductor: Class 1 Solid Copper, 1.5mm² cross-sectional area
- Insulation: High-performance fire resistant silicone rubber
- Outer Sheath: LSZH (Low Smoke Zero Halogen), Red & White
- Number of cores: 4 cores + Bare Earth
- Core Identification: Blue, Brown, Black, Grey + Bare Earth
- Screen: Aluminium/Polyester Tape (AI/PET)
- Overall Diameter: approximately 9.4 mm
- Weight: 140 kg/km
- Standards & Compatibility: BS 7629-1, BS 5839-1, BS EN/IEC 60754-1/2, BS EN 61034-2, BS EN 50200-PH30/60/90/120, BS 6387, BS 5266-1, BS 8519, BS EN 60228
- RoHS Compliant: Yes
Buy the Multicomp MP002421 – Reliable Fire-Resistant Multicore for Industrial Applications
Order Multicomp MP002421 now to ensure high-quality fire-resistant multicore cabling for your safety systems. Designed for fire alarm, emergency lighting, and safety circuits, it features high-performance silicone insulation, solid copper conductors, and LSZH sheathing. Certified by BASEC and compliant with industry standards, this durable cable operates safely up to 300/500V and withstands temperatures from -40°C to +90°C. Secure your installations with reliable, compliant, and robust cable solutions available for online purchase today.
Buy Multicomp MP002421 now and experience unmatched reliability and performance in critical fire safety circuits.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002421?
You can click on the BUY or RFQ button to purchase MP002421 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002421?
You can download the MP002421 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002421?
MULTICOMP-PRO
