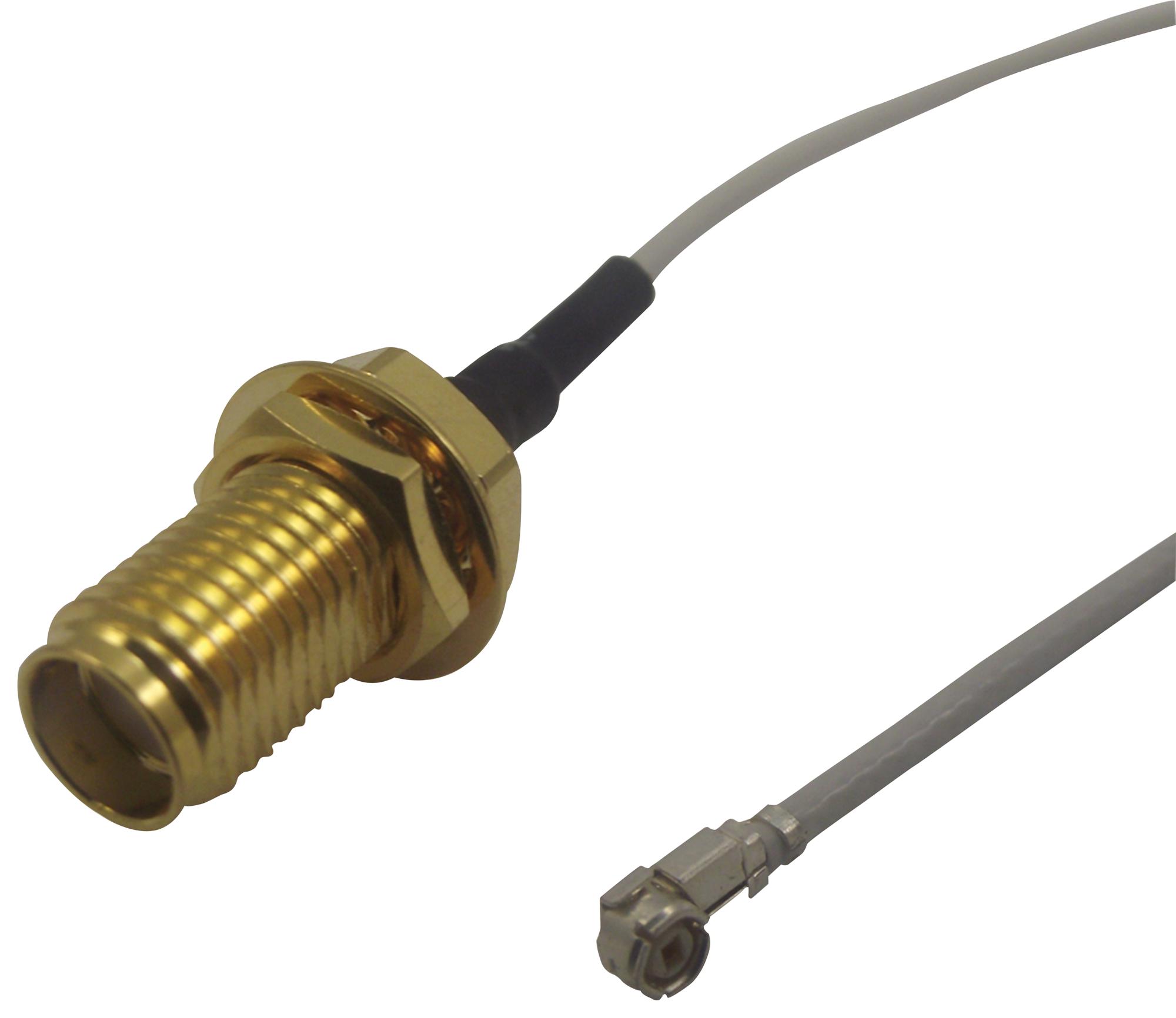

MULTICOMP PRO MC000814 RF Coaxial Cable Assembly
This 200mm white RF coaxial cable assembly features a 1.37mm low-loss micro coaxial cable with 50Ω impedance, suitable for outdoor RF communication. It has SMA bulkhead and 90° U.FL connectors, operates from DC to 3 GHz, and supports up to 60 Vrms voltage. The dielectric withstand voltage is 200 Vrms, insulator resistance is 500 MΩ, and insertion loss is maximum -1.0 dB with VSWR 1.4:1. The white sheath is rated for -20°C to +70°C, making it ideal for reliable RF signal transmission across various applications.
MULTICOMP PRO MC000814 RF Coaxial Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 3GHz
- Working Voltage: 60Vrms Max.
- Dielectric Withstanding Voltage: 200Vrms Min.
- Insulator Resistance: 500 MΩ Min.
- Cable Length: 200mm
- Connector 1: SMA bulkhead jack
- Connector 2: 90° U.FL plug
- Sheath Color: White
- Temperature Range: -20°C to +70°C
- Insertion Loss: Max. -1.0 dB
- VSWR: 1.4:1 Max.
- RoHS Compliant
Buy the Multicomp 814 U+2013 Reliable RF Coaxial Cable Assembly for Industrial Applications
Order the Multicomp 814 RF coaxial cable assembly online today to ensure high-quality signal transmission for your outdoor RF projects. This 200mm white cable features a low-loss 1.37mm impedance-matched design, with SMA and U.FL connectors. It operates efficiently from DC to 3 GHz, supporting up to 60 Vrms voltage, with excellent dielectric properties and long-term durability in outdoor environments. Perfect for reliable RF links in communication, broadcast, and industrial applications—order now for fast delivery and seamless integration.
Buy Multicomp 814 now and experience unmatched reliability and performance in outdoor RF communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000814?
You can click on the BUY or RFQ button to purchase MC000814 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000814?
You can download the MC000814 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000814?
MULTICOMP PRO
