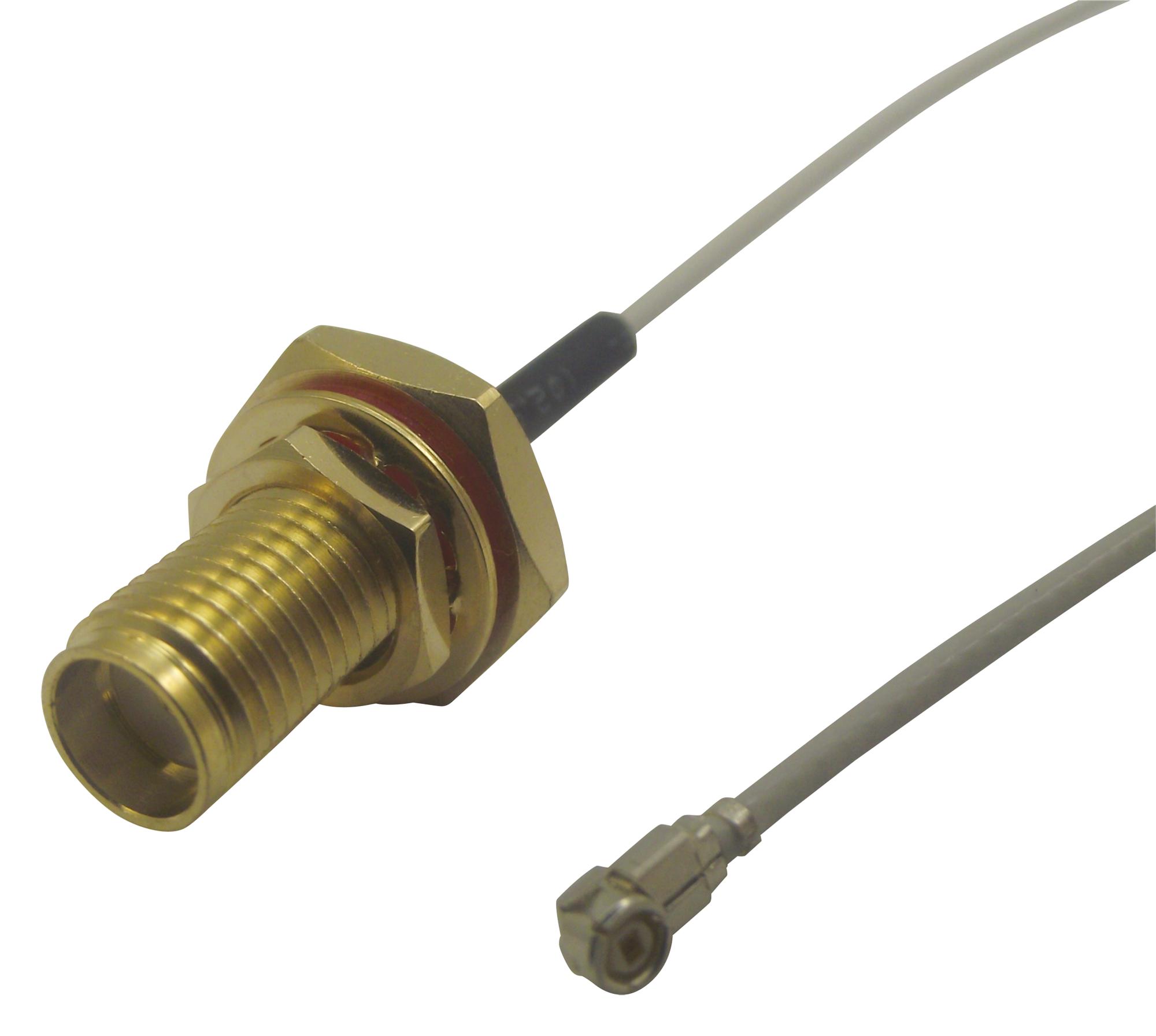

MULTICOMP PRO MC000822 RF Coaxial Cable Assembly
The MC000822 is a 150mm white IP67-rated RF coaxial cable assembly designed for outdoor applications. It features a low-loss 1.37mm micro coaxial cable with 50Ω impedance, capable of supporting frequencies up to 3 GHz. This robust assembly includes a male SMA bulkhead connector and a 90° U.FL connector, providing a maximum working voltage of 60V RMS and dielectric withstand voltage of 200V RMS. With an insertion loss no greater than -0.9 dB and a VSWR of 1.4:1, it ensures reliable performance. The white sheath enhances durability, operational from -20°C to +70°C, ideal for outdoor wireless setups.
MULTICOMP PRO MC000822 RF Coaxial Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 3GHz
- Working Voltage: 60Vrms Max.
- Dielectric Withstanding Voltage: 200Vrms Min.
- Insulator Resistance: 500 MΩ Min.
- Cable Length: 150mm
- Connector Type: SMA bulkhead, U.FL
- Tube Diameter: 1.37mm
- Sheath Color: White
- Maximum VSWR: 1.4:1
- Insertion Loss: -0.9dB Max.
- Temperature Range: -20°C to +70°C
Buy the Multicomp Series RF Cable Assembly: 150mm White IP67 RF Coaxial Cable MC000822
Order the Multicomp MC000822 RF coaxial cable assembly online today. Designed for outdoor use, it features IP67 rating, 50Ω impedance, and supports frequencies up to 3 GHz. With a durable white sheath, excellent voltage ratings, and minimal insertion loss, this reliable cable assembly ensures high performance for wireless systems and RF applications in harsh environments. Easy to install with SMA bulkhead and U.FL connectors, it's the perfect choice to enhance and secure your outdoor RF communications—buy now for durability and top-tier linkage performance.
Get Multicomp MC000822 today—built for outdoor RF communication with IP67 protection and support for frequencies up to 3 GHz.
