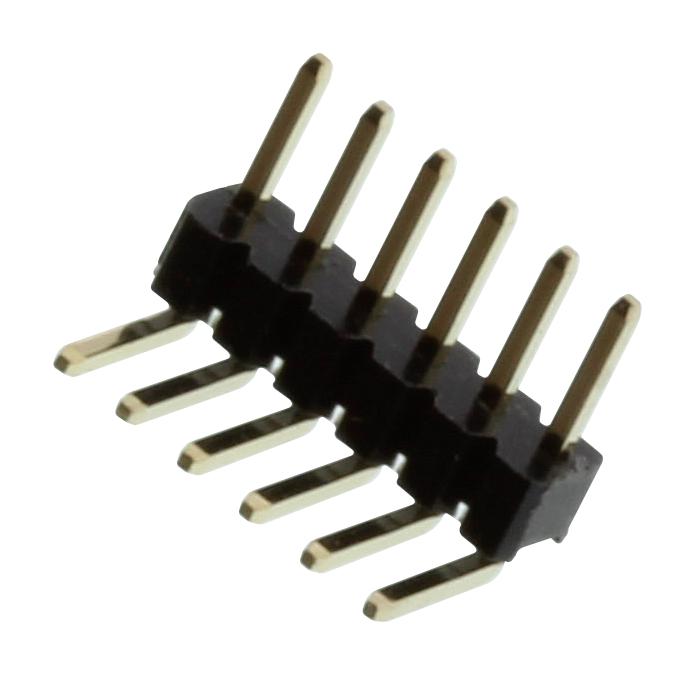

MULTICOMP PRO MCHRT1S06G Pin Header
This 1.27mm pitch right-angle pin header features a single row configuration with through-hole mounting, made from high-temperature nylon with gold-plated copper alloy contacts. Designed for durability and reliable connections, it supports current ratings of up to 1A and voltage ratings of 50V AC/DC. The header can withstand voltages of 500V for one minute and operate within -25°C to +105°C temperature range. Its RoHS-compliant construction ensures environmentally friendly manufacturing, making it suitable for various electronic applications requiring secure pin connections.
MULTICOMP PRO MCHRT1S06G Pin Header Specifications:
- Pitch: 1.27mm
- Number of Positions: 6
- Configuration: Single row, right angle
- Mounting: Through hole
- Current Rating: 1A
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 500V for one minute
- Operating Temperature Range: -25°C to +105°C
- Materials: Copper alloy contacts, gold plated
- Insulator: High temperature nylon (UL94V-0)
- Color: Black
- RoHS Compliant
- Dimensions: 1.27X6+0.38 mm (including position spacing), typical length with pin: 20.70 mm
Buy the Multicomp Series R/A 1.27mm 6Pos: MCHRT1S06G
Transform your electronic assemblies with this 1.27mm pitch right-angle pin header, featuring six positions, gold-plated contacts, and a high-temp nylon insulator. Designed for durability and high performance, it ensures secure connections across temperature ranges from -25°C to +105°C. Its through-hole mounting makes it suitable for a variety of applications, including industrial and consumer electronics. RoHS-compliant and made from environmentally friendly materials, this header offers excellent electrical performance with minimal contact resistance. Purchase online today for dependable quality and seamless integration into your designs.
Order your Multicomp Series R/A 1.27mm 6Pos pin header today and give your electronic projects the reliable, durable connections they deserve.
