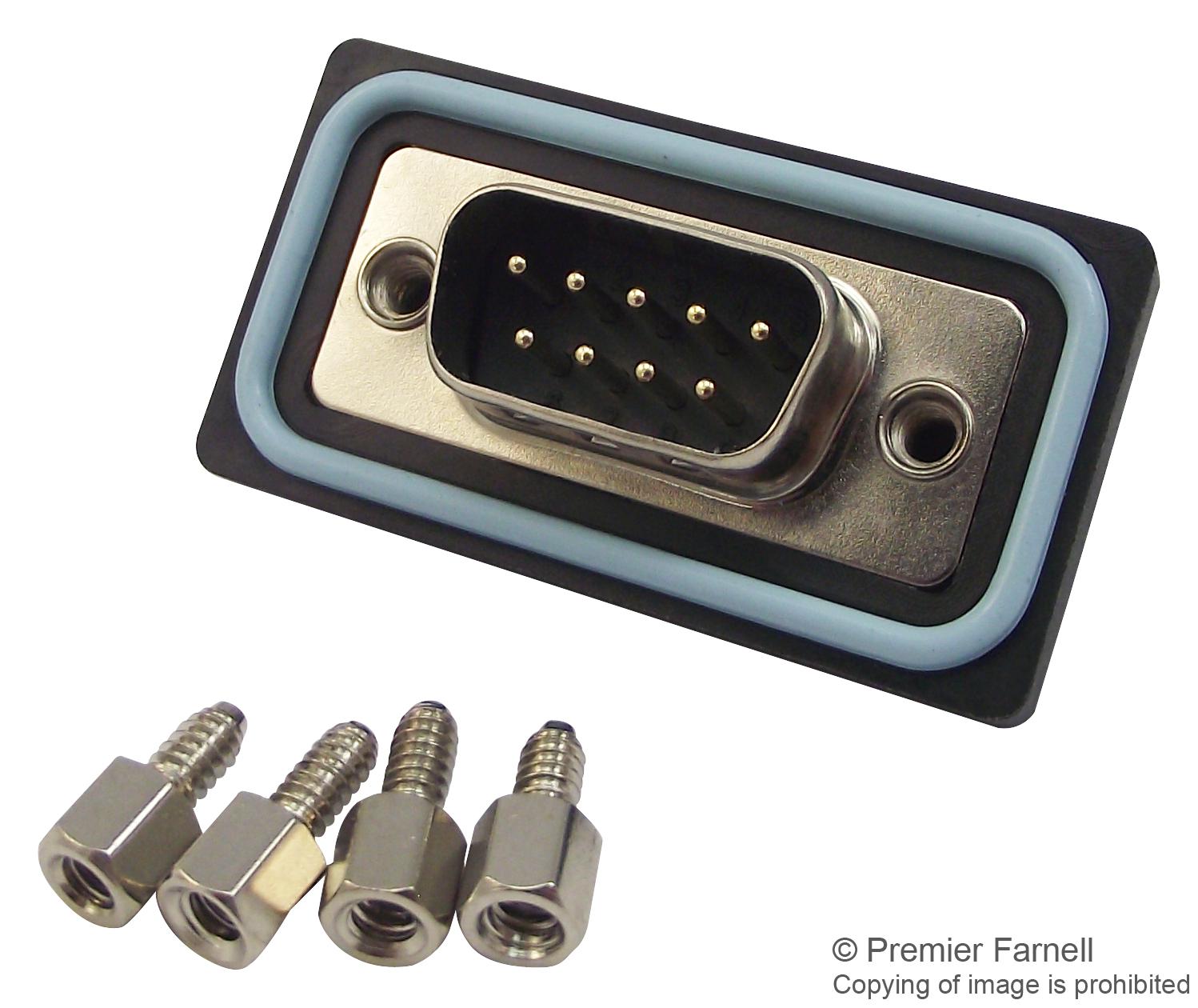

MULTICOMP-PRO MC000958 Waterproof D-Sub Connector
The waterproof D-Sub connectors are standard density, panel mount, solder pin units designed for industrial applications requiring reliable sealing and electrical performance. These connectors feature an IP67 rating for dust and water resistance and achieve an IP68 waterproof rate when properly mated. They operate within an extensive temperature range of -40°C to +105°C and are RoHS compliant, ensuring environmentally friendly compliance. Suitable for panel mounting with screw options tailored for panel thicknesses from 1.2mm to 2.0mm, these connectors include 9-pin configurations, rugged steel shells, and gold-plated brass pins for enhanced conductivity and corrosion resistance. Their robust insulators and sealed design ensure durability in harsh environments.
MULTICOMP-PRO MC000958 Waterproof D-Sub Connector Specifications:
- Connector Type: Waterproof D-Sub Panel Mount Solder Pin
- Pin Configuration: 9 pins
- Current Rating: 5A per contact
- Voltage Rating: 120V AC
- Dielectric Withstanding Voltage: 1,000V AC RMS
- Insulation Resistance: Min. 100MQ at 500V DC
- Contact Resistance: Max. 25mΩ
- Operating Temperature: -40°C to +105°C
- IP Rating: IP67
- Waterproof Rating: IP68 when properly mated
- Material: Steel shell, nylon+33%GF insulator, brass pins
- Plating: Nickel and gold plated
- Panel Thickness: 1.2mm to 2.0mm (screw lengths L=5.0mm and 6.0mm)
- Screw Material: Brass, Ni plated, 80μm
- RoHS Compliant
- Design for rugged industrial environments
Buy the Multicomp Waterproof D-Sub – Reliable Panel Mount Connectors for Industrial Applications
Order the waterproof D-Sub connectors online today to ensure your industrial applications benefit from high durability, IP67/IP68 protection, and reliable connectivity. These connectors are perfect for harsh environments, providing robust sealing, corrosion resistance, and a secure connection. Designed with precision and quality, they meet RoHS standards and feature easy panel mounting with screws suitable for various panel thicknesses. Don't compromise on reliability—purchase now for rapid delivery and exceptional performance in your critical projects.
Buy multicomp waterproof D-Sub connectors now and experience unmatched durability, water resistance, and reliable electrical performance in harsh conditions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC000958?
You can click on the BUY or RFQ button to purchase MC000958 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000958?
You can download the MC000958 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC000958?
MULTICOMP-PRO
