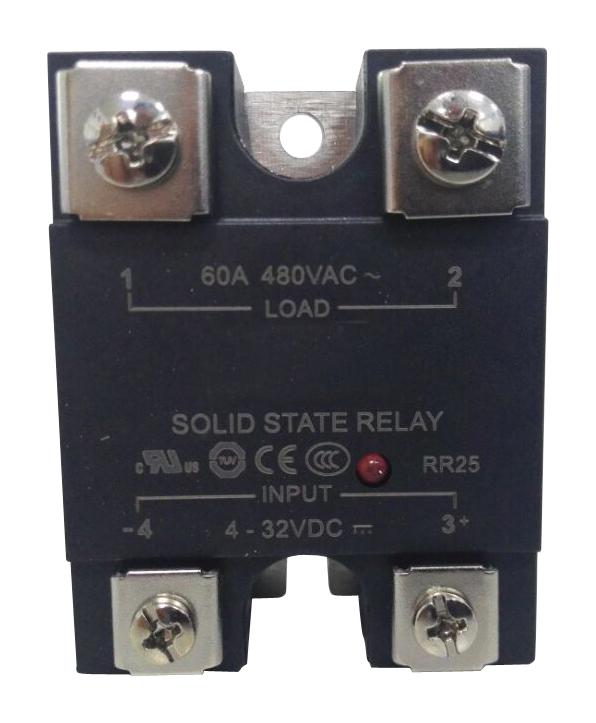

MULTICOMP-PRO MC002302 Solid State Relay
This panel mount solid state relay is designed for single phase AC loads, featuring zero crossing or random-on operation, load currents from 10A up to 125A, and handling voltage ranges of 240V, 480V, and 600V AC. It supports both AC and DC control voltages from 4V to 280V, making it versatile for industrial applications like HVAC, food processing, and machinery. Its dielectric strength of 24,000V, LED indicator, and optional built-in MOV or TVS improve reliability and safety in various industry environments, ensuring efficient load switching and durability.
MULTICOMP-PRO MC002302 Solid State Relay Specifications:
- Load Current: 10A to 125A @ 48 ~ 660V AC
- Load Voltage Range: 240V AC, 480V AC, 600V AC
- Control Voltage: 4-32V DC, 90-280V AC
- Dielectric Strength: 24,000V ACrms
- Response Time: Turn-on within 10-40ms depending on input type
- Surge Current: up to 1250A (10ms)
- Maximum Off-state Leakage Current: 5mA at Rated Voltage
- Operating Temperature: -30°C to +80°C
- Weight: 96g (standard), optional high profile 180g
- Insulation: Input/Output 2,500Vrms, dielectric strength 4,000Vrms
Buy the Buy Multicomp Pro Solid State Relay Part Number MC002302 Online
Order the high-performance Multicomp Pro Solid State Relay MC002302 today for industry-grade reliability. Designed for single-phase AC loads, it handles currents up to 125A at voltages of 240V, 480V, and 600V AC. Suitable for demanding applications like HVAC, machinery, and food processing, it features zero crossing or random-on operation, a dielectric strength of 24,000V, and optional built-in MOV or TVS for enhanced safety. Ensure efficient, safe load switching with this durable relay for your industrial needs.
Get Multicomp Pro MC002302 today—built for precision, long-lasting durability, and reliable load switching in industrial settings.
