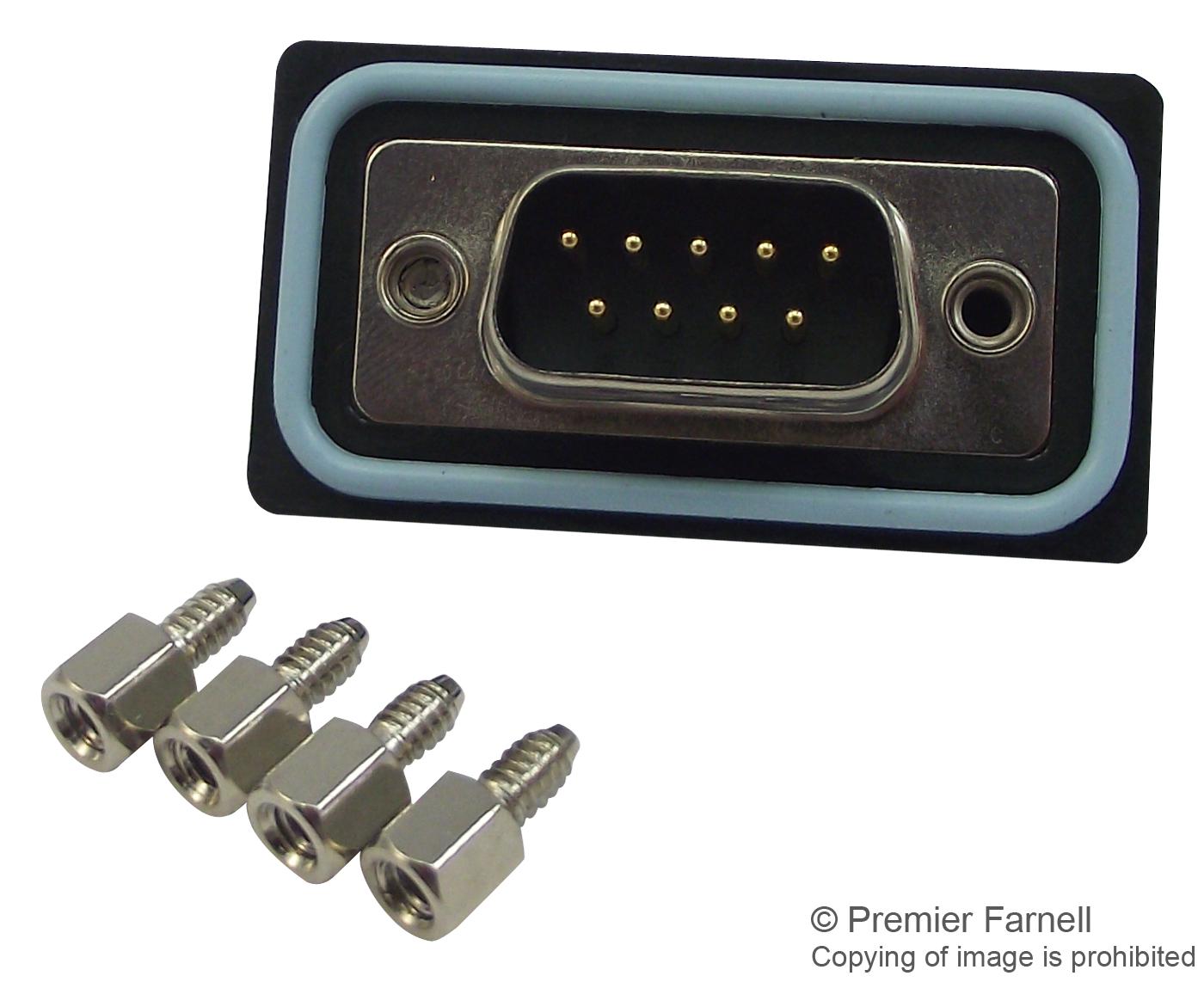

MULTICOMP-PRO MC000961 Waterproof D-Sub Connector
This waterproof panel mount D-Sub connector with standard density solder pins offers robust connection solutions for industrial applications. Rated IP67 and IP68 for waterproof performance when properly mated, it supports 9-pin configurations with a current rating of 5A per contact and a voltage of 120V AC. Operating within -40°C to +105°C, it features durable materials including nylon with 33% glass fiber, cold rolled steel, and gold-plated brass contacts. Designed for panel thicknesses from 1.2mm to 2.0mm, it ensures reliable, waterproof connectivity for demanding environments.
MULTICOMP-PRO MC000961 Waterproof D-Sub Connector Specifications:
- Pin Configuration: 9 pins
- Current Rating: 5A per contact
- Voltage Rating: 120V AC
- Dielectric Withstanding Voltage: 1,000V AC R.M.S.
- Insulation Resistance: 100MQ Min. at 500V DC
- Contact Resistance: 25mQ Max.
- Operating Temperature: -40°C to +105°C
- IP Rating: IP67, waterproof rate IP68 (when properly mated)
- Materials: Nylon+33%GF, Cold Roller Steel Ni Plated, Brass Gold Plated, Silicon Light Blue O-Ring
- Panel Thickness: Suitable for 1.2mm to 2.0mm panels
- Screw Length: 5.0 mm for panels under 1.2mm; 6.0 mm for panels between 1.2–2.0mm
Buy the Multicomp Waterproof D-Sub Connectors – Reliable Waterproof Panel Mount for Industrial Applications
Purchase the high-performance waterproof D-Sub connector online now to ensure secure and durable connections in tough industrial environments. Designed with IP67/IP68 ratings and robust materials, this 9-pin panel mount connector supports operating temperatures from -40°C to +105°C. Featuring gold-plated brass contacts, it guarantees excellent conductivity and corrosion resistance. Ideal for demanding environments, it offers easy installation with panel thickness compatibility from 1.2mm to 2.0mm. Enhance your industrial connectivity today with reliable waterproof solutions available for fast online purchase.
Get Multicomp waterproof D-Sub connector today—built for rugged, waterproof, and reliable industrial connectivity solutions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC000961?
You can click on the BUY or RFQ button to purchase MC000961 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000961?
You can download the MC000961 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC000961?
MULTICOMP-PRO
