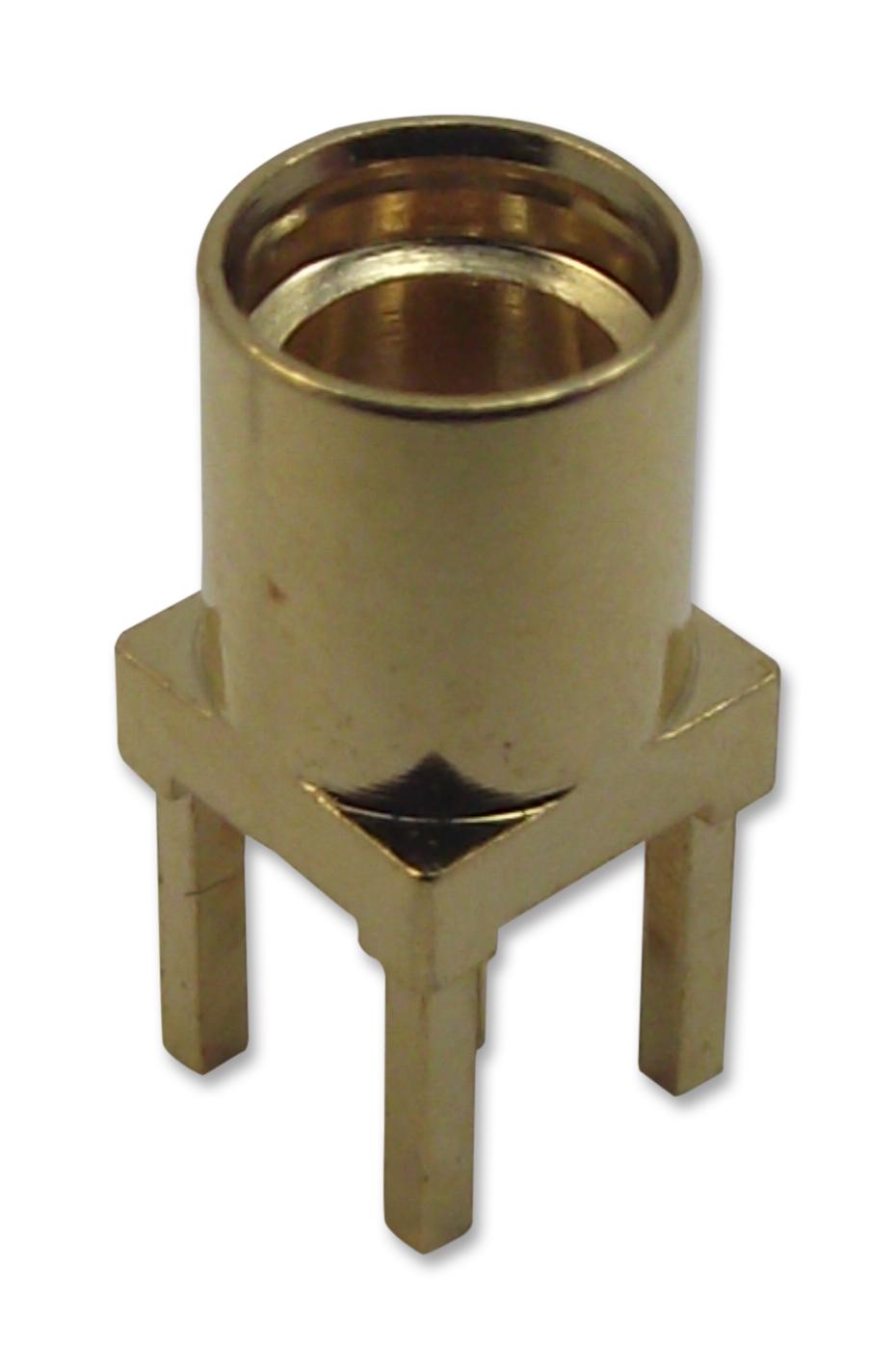

MULTICOMP-PRO MC000990 RF Jack Receptacle
The MMCx Straight PCB Mount Jack Receptacle offers reliable and efficient RF connections for industrial and electronic applications. Its high-frequency range of DC-6GHz and impedance of 50 ohms make it suitable for various communication systems. Made from durable brass with gold finishes, it ensures excellent conductivity and corrosion resistance. The centerpiece contact is crafted from beryllium copper, providing superior electrical performance. With an operating temperature range of -55°C to +155°C and RoHS compliance, this receptacle guarantees optimal performance in harsh environments. Its compact design facilitates easy PCB mounting for reliable electronic connections.
MULTICOMP-PRO MC000990 RF Jack Receptacle Specifications:
- Frequency Range: DC-6GHz
- Nominal Impedance: 50 ohms
- Voltage Rating: 250V Max.
- VSWR: 1.21 Max.
- Body Material: Brass with gold finish
- Center Contact: Beryllium Copper with gold plating
- Insulation Material: PTFE
- Operating Temperature Range: -55°C to +155°C
- Mounting Hole: Millimetres (Inches), detailed dimensions provided
- RoHS Compliant: Yes
Buy the Multicomp Pro MC000990 – Reliable RF Connector for Industrial Applications
Purchase the Multicomp Pro RF Jack Receptacle online today to experience dependable RF connections with high frequency performance, robust construction, and broad temperature resilience. Ideal for industrial, communication, and electronic applications, this PCB mount RF connector offers corrosion resistance with gold-plated brass and beryllium copper contacts. Its RoHS compliance guarantees environmentally safe operation, while easy PCB mounting simplifies installation. Trust this durable, high-performance RF connector to deliver consistent, reliable signals and help you achieve optimal system performance in demanding environments.
Order your Multicomp Pro Series MC000990 straight PCB mount RF jack today and ensure stable, high-frequency connections for your industrial and communication projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC000990?
You can click on the BUY or RFQ button to purchase MC000990 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000990?
You can download the MC000990 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC000990?
MULTICOMP-PRO
