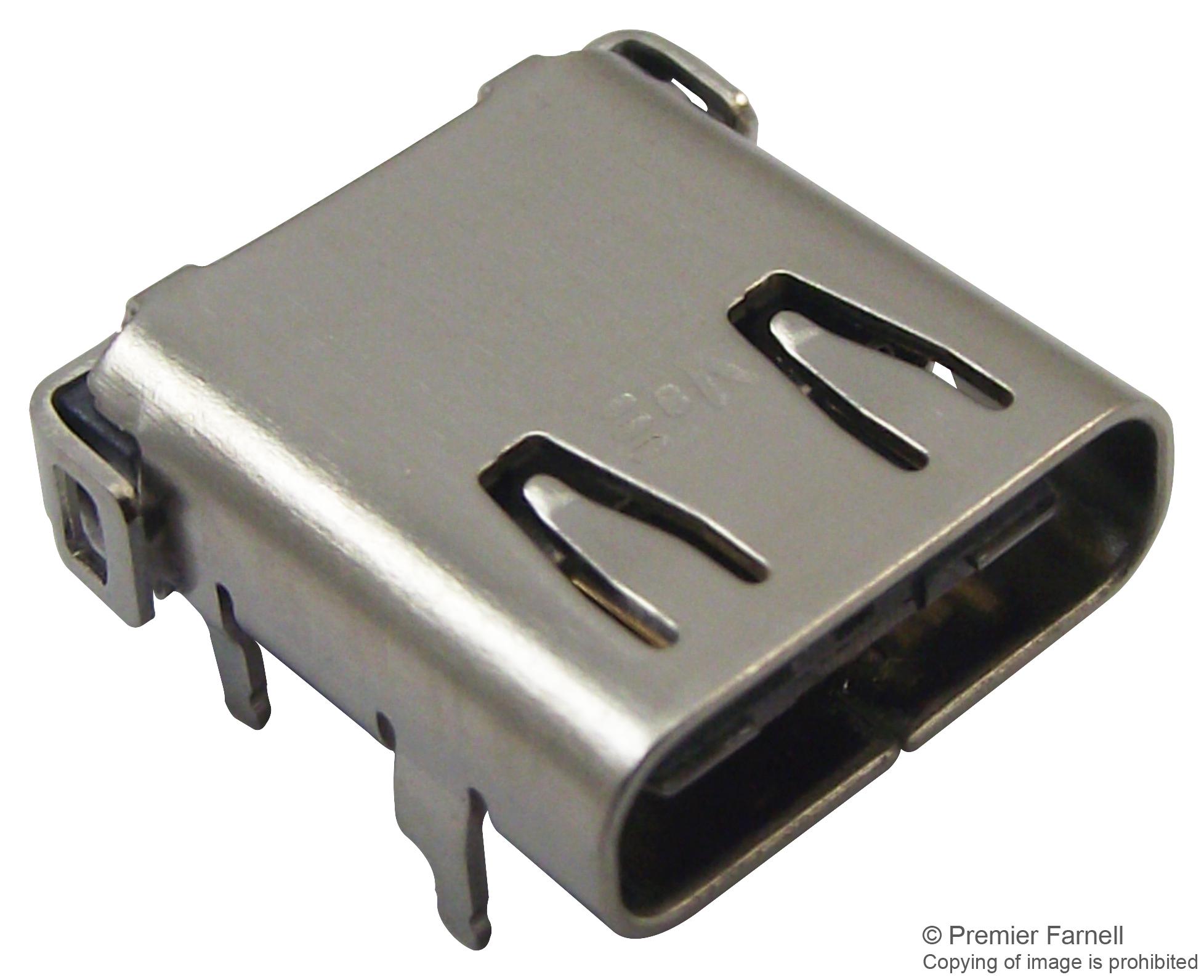

MULTICOMP PRO MC001002 USB Type-C Receptacle
This USB Type-C receptacle is designed for high-frequency applications with SMT and dip configurations, featuring a spring mechanism for secure connections. Made with durable thermoplastic and copper alloy contacts, it supports a maximum current of 5A for VBUS and 6.25A for GND, with withstand voltage up to 100V AC for 1 minute. Its compact design includes nickel-plated shells and gold-flash contact areas, operating efficiently within -25°C to +85°C. Suitable for various electronic devices, it ensures reliable performance through 10,000 mating cycles and meets RoHS compliance standards for environmental safety.
MULTICOMP PRO MC001002 USB Type-C Receptacle Specifications:
- Mechanical Insertion Force: 8N to 20N
- Withdrawal Force: 6N to 2N Min.
- Applied Current: VBUS 5A, GND 6.25A, VConn 1.25A, Other contacts 0.25A
- Withstanding Voltage: 100V AC for 1 minute
- Insulation Resistance: 100MΩ Min.
- Contact Resistance: Initial 40mΩ Max., After test 50mΩ Max.
- Shell Plating: Nickel
- Contact Plating: Au 1"
- Operation Temperature: -25°C to +85°C
- Shell Material: SUS
- Contact Material: Copper Alloy
- Housing Material: Thermoplastic UL94V-0
- Dimensions: Center Height 1.63mm, Dip Length 1.25mm
Buy the Buy Multicomp USB Type-C Receptacle Part Number MC001002 Online
Experience reliable connectivity with this high-frequency USB Type-C receptacle, designed for durability and easy assembly. Featuring robust nickel-plated shells, gold-plash contacts, and efficient thermal performance, it supports currents up to 5A and withstands voltage up to 100V AC. Suitable for compact electronic devices, it ensures stable performance over 10,000 mating cycles, meeting all environmental standards, including RoHS. Ideal for engineers and technicians seeking quality, longevity, and seamless integration in their electronic projects. Purchase online now for superior quality and hassle-free installation.
Get Multicomp Pro USB Type-C Receptacle MC001002 today—built for high-frequency performance and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001002?
You can click on the BUY or RFQ button to purchase MC001002 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001002?
You can download the MC001002 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001002?
MULTICOMP PRO
