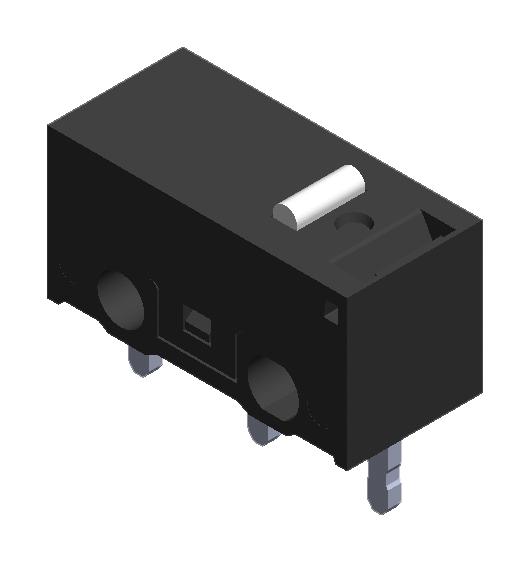

MULTICOMP PRO MP005555 Microswitch
This versatile through-hole snap-action microswitch features high durability and reliable performance for electronic equipment, household appliances, security systems, and communication devices. It offers a contact rating of 0.1A at 30V DC and 3A at 125V AC, with a long lifespan exceeding 1,000,000 cycles. The switch includes PCB terminals, various actuator options such as hinge, bent, pin plunger, and simulated roller lever, and operates reliably within a temperature range of -25°C to +75°C, ensuring consistent switching in diverse applications.
MULTICOMP PRO MP005555 Microswitch Specifications:
- Contact Rating: 0.1A at 30V DC, 3A at 125V AC
- Durability: >1,000,000 cycles
- Operating Temperature: -25°C to +75°C
- Contact Resistance: 100mΩ MAX.
- Insulation Resistance: 100 MΩ MIN.
- Dielectric Strength: AC 1500V 1 minute between current-carrying and ground metal parts
- Operating Force: varies from 26gf to 40gf (0.25N to 0.39N)
- Release Force: 2gf (0.02N) MIN.
- Overtravel: 0.20mm to 0.55mm depending on model
- Movement Differential: 0.20mm to 0.50mm
- Actuator Types: Hinge, Bent, Pin Plunger, Simulated Roller Lever
- Physical Dimensions: standard switch size for through-hole mounting
- Certifications: UL compliance for safety and quality
Buy the Multicomp series Microswitch: MP005555
Purchase the multicomp series MP005555 microswitch online today and enjoy dependable performance for your electronic devices, household appliances, and security systems. With high durability exceeding 1,000,000 cycles, multiple actuator options, and certified safety standards, this switch guarantees long-lasting reliability. Its compact design makes it easy to install in a variety of applications. Elevate your project with a proven, high-quality microswitch that offers seamless operation and consistent switching performance—order now and ensure your system’s reliability!
Order your multicomp series MP005555 through-hole snap-action microswitch today and ensure reliable performance in your electronic and household projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005555?
You can click on the BUY or RFQ button to purchase MP005555 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005555?
You can download the MP005555 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005555?
MULTICOMP PRO
