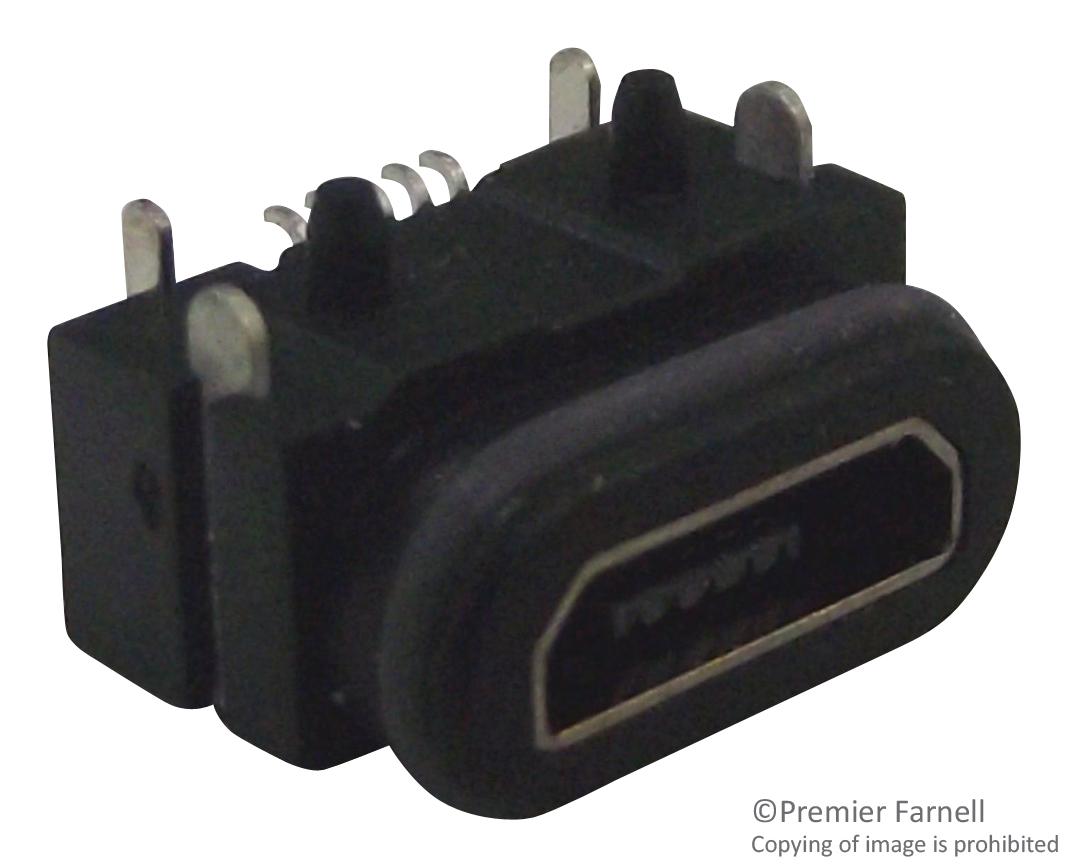

MULTICOMP PRO MC001006 Waterproof Micro USB Connector
This waterproof micro USB right-angle connector is rated IPX7 for waterproofness, providing protection against water immersion up to 1 meter for 30 minutes. It supports a current rating of 1.8A on PIN1 and 0.5A on PIN2/3/4. The connector features a maximum contact resistance of 30 milliohms (initial), a dielectric withstand voltage of 300V AC for one minute, and an insulation resistance of at least 100 megaohms measured with 500V DC. Suitable for computers, peripherals, and data devices, ensuring durability and reliable water resistance in demanding environments.
MULTICOMP PRO MC001006 Waterproof Micro USB Connector Specifications:
- Electrical Ratings: 1.8A PIN1, 0.5A PIN2/3/4
- Contact Resistance: 30mΩ max (initial)
- Dielectric Withstanding Voltage: 300V AC for one minute
- Insulation Resistance: 100MΩ min (measured by 500V DC)
- Waterproofness: IPX7 (1m water, 30 min)
- Mechanical: Insertion force 3.6 KGF max, withdrawal force 0.8 KGF, durability 10,000 cycles
- Materials: Housing LCP black, cover black, shell SUS 304 nickel, contacts brass with nickel plating
- Dimensions: 4.75 mm length, 2.75 mm width, 0.9 mm thickness
Buy the Waterproof Connector Series MicroUSB: MC001006
Order the waterproof micro USB connector MC001006 online today for reliable connection and superior water resistance in demanding environments. With IPX7 waterproof certification, it ensures protection against water immersion up to 1 meter for 30 minutes. Designed with a robust build, supporting 1.8A current, and crafted from high-quality materials such as LCP, SUS 304, and brass with nickel plating, this connector guarantees durability, high performance, and ease of installation for electronics, computer peripherals, and data devices. Buy now to ensure your devices stay protected and connected even in harsh conditions.
Get waterproof micro USB connector MC001006 today—built for rugged waterproof applications and long-lasting durability.
