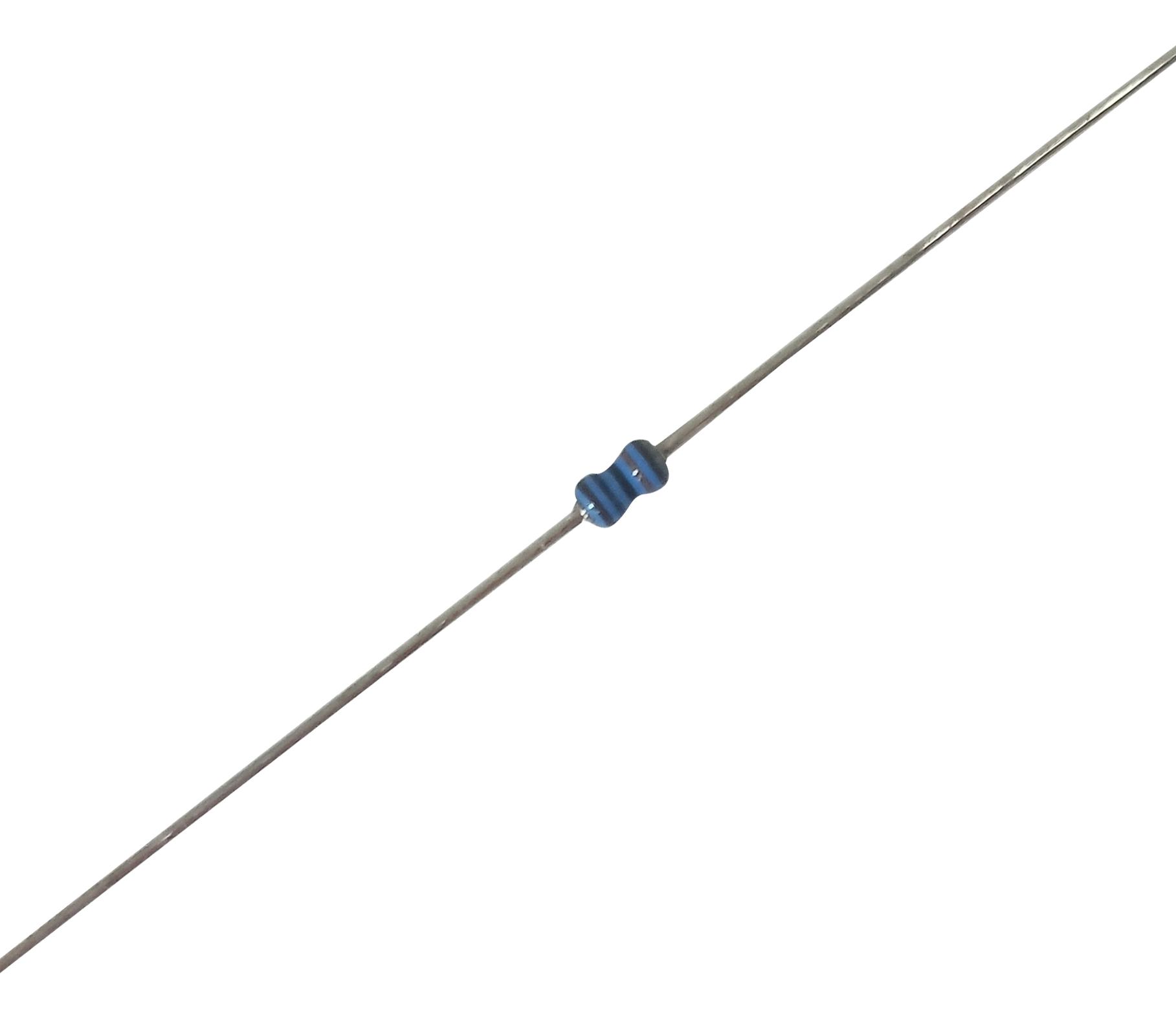

MULTICOMP PRO MP006779 Metal Film Resistors
Metal film fixed resistors with axial lead construction offer reliable performance for high-precision electronic circuits. They feature a resistance range from 12.20Ω to 1MΩ, a power rating of 1/8W, and a maximum working voltage of 200V. Constructed with metal film resistance elements, tin-plated steel end caps, and annealed copper leads, these resistors are flame-resistant, UL94V-0 compliant, and suitable for continuous high-temperature operation from -55°C to +155°C. They are ideal for use in electronic devices requiring stability, accuracy, and durability.
MULTICOMP PRO MP006779 Metal Film Resistors Specifications:
- Type: Metal Film
- Rated Power: 1/8W
- Max. Working Voltage: 200V or VPxR whichever lesser
- Max. Overload Voltage: 400V or 2.5VPxR whichever lesser
- Dielectric Withstanding Voltage: 200V
- Operating Temp. Range: -55°C to +155°C
- Resistance Range: 12Ω to 1MΩ
- Resistance Tolerance: ±2%
- Insulation Resistance: 10,000MΩ Min.
- Temperature Coefficient: ±50 PPM/°C Max.
- Material: Metal Film, Steel (Tin plated core), Copper wire
- Environmental: RoHS compliant, UL94V-0 flame resistant coating
- Construction: Resistance film, welded steel end caps, annealed copper leads
- Solderability: 95% coverage, temp. 245°C ±3°C
Buy the Brand 4002 – Reliable Metal Film Resistors for Industrial Applications
Enhance your electronic designs with high-precision metal film fixed resistors, offering excellent stability, low noise, and reliability over a wide temperature range. These 1/8W resistors feature resistance values from 12Ω to 1MΩ, with ±2% tolerance, suitable for demanding industrial and precision applications. RoHS compliant, UL94V-0 flame resistant coating, and constructed with durable materials, they ensure long-term performance and safety. Order online today to integrate premium quality resistors into your manufacturing or repair projects seamlessly.
Buy Brand 4002 axial metal film resistors now and experience unmatched reliability, thermal stability, and precision performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006779?
You can click on the BUY or RFQ button to purchase MP006779 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006779?
You can download the MP006779 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006779?
MULTICOMP PRO
