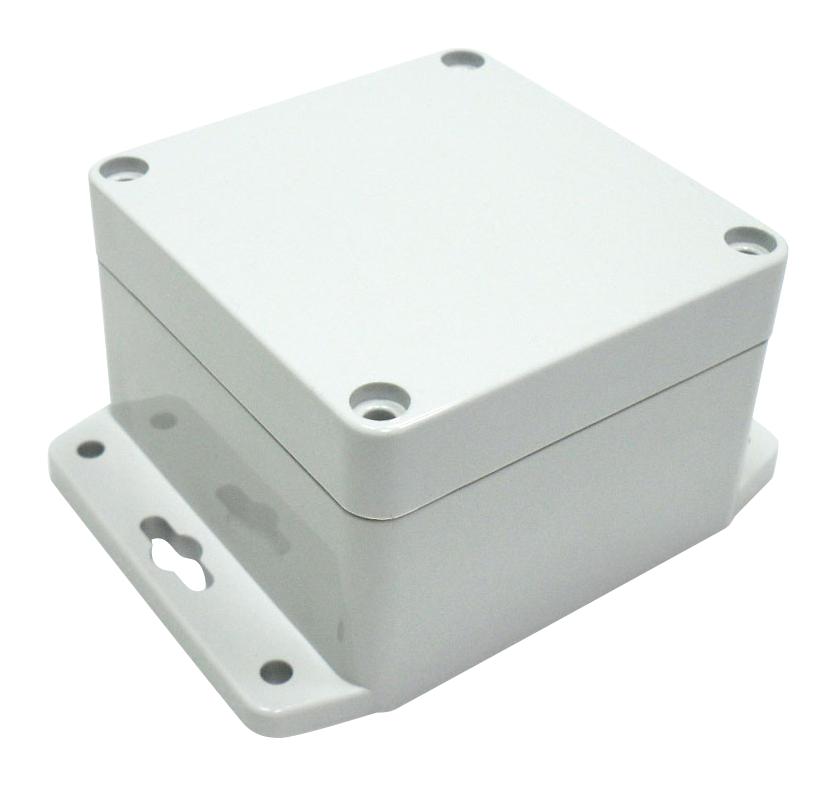

MULTICOMP PRO MC001061 Sealed Enclosure
Sealed polycarbonate and ABS enclosures with mounting flange designed for industrial, electrical, and electronic applications. Featuring IP65 dust and hoseproof protection, these enclosures have a tongue and groove sealing system with an EPDM gasket, external wall mounting holes, and lid fixing screws outside sealing areas. They include internal bosses for PCB fixing, vertical mounting slots, and are available in clear or light grey polycarbonate and dark grey or light grey ABS variants. Suitable for harsh environments, the enclosures operate efficiently from -40°C to 120°C depending on material, ensuring reliable protection for sensitive components in various industrial settings.
MULTICOMP PRO MC001061 Sealed Enclosure Specifications:
- Material: Polycarbonate (UL94-HB), ABS (UL94-HB)
- Operating Temperature: -40°C to 120°C (Polycarbonate), -20°C to 80°C (ABS)
- Protection Class: IP65 (Dust and hoseproof)
- Sealing System: Tongue and groove with EPDM gasket
- Mounting: Wall mounting holes, internal bosses for PCB fixing, vertical guide slots
- Available Colors: Clear, Light Grey (Polycarbonate), Dark Grey, Light Grey (ABS)
- External Dimensions: Various models, typically around 64x58x35mm to 222x146x85mm
- Fixing: M3X4mm self-tapping screws, M4x20 pan head screws, M6 pan head screws depending on model
- Design: External mounting holes outside sealing area for moisture protection
- Environmental Resistance: Corrosion and impact resistant, suitable for harsh conditions
Buy the Multicomp Series Sealed Enclosure IP65: MC001061
Purchase the multicomp Sealed Enclosure online today to ensure your electronic and industrial components are protected against dust, moisture, and harsh environmental factors. These IP65-rated enclosures are designed with a durable tongue and groove sealing system, featuring easy wall mounting with external holes and internal bosses for flexible PCB fixing. Available in clear and grey variants in polycarbonate and ABS, they are suitable for temperature ranges from -40°C to 120°C. Reliable, impact-resistant, and easy to install, these enclosures are ideal for maintaining the safety and integrity of sensitive electronics in demanding environments.
Order your multicomp Polycarbonate or ABS Enclosure today and give your industrial projects the dependable protection they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001061?
You can click on the BUY or RFQ button to purchase MC001061 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001061?
You can download the MC001061 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001061?
MULTICOMP PRO
