MULTICOMP PRO MC001064 Enclosure System

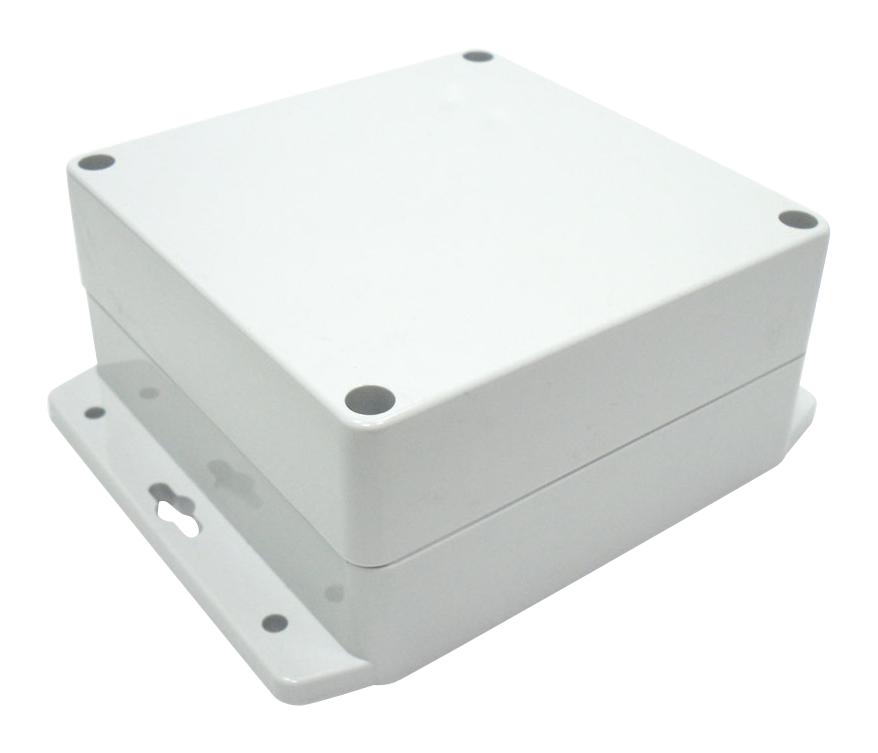

Sealed polycarbonate and ABS enclosures with mounting flange designed for industrial applications, offering excellent dust and water protection with IP65 rating. These enclosures feature a tongue and groove sealing system with EPDM gasket. Wall mounting is simplified with Bottom-mounted flanges compatible with pan head or machine screws, including M3X4mm self-tapping screws and M4 pan head machine screws. Suitable for electrical and electronic components, they withstand operating temperatures from -40°C to 120°C (polycarbonate) and -20°C to 80°C (ABS). Internal bosses and guide slots facilitate PCB mounting and terminal connections, making them versatile for industrial control systems and automation projects.
MULTICOMP PRO MC001064 Enclosure System Specifications:
- Material: Polycarbonate (UL94-HB), Operating Temperature: -40°C to 120°C
- Material: High Impact ABS (UL94-HB), Operating Temperature: -20°C to 80°C
- Ingress Protection: IP65 (Dust and Waterproof)
- Sealing System: Tongue and groove with EPDM gasket
- Wall Mounting: Flanges on bottom for easy screw mounting with pan head or machine screws
- Internal Bosses: For PCB fixing horizontally or terminal connection
- Guide Slots: For vertical PCB mounting
- Enclosure Dimensions: Vary per model; typical sizes include 90x35x35 mm to 222x146x90 mm
- Lids: Clear or Light Grey options
- Screw Compatibility: M3X4mm self-tapping screws, M4 pan head machine screws, M6 pan head screws
Buy the Multicomp Polycarbonate and ABS Enclosures – Reliable Sealed Enclosures for Industrial Applications
Enhance your control systems with reliable sealed enclosures designed for industrial environments. Made from durable polycarbonate or high-impact ABS, these IP65-rated enclosures provide excellent dust and water resistance, ensuring long-term protection of electronic components. With features like mounting flanges, internal bosses for PCB fixing, and easy screw compatibility, these enclosures simplify installation and maintenance. Choose from clear or light grey lids to suit your project needs. Order online today and guarantee your electronics are protected under demanding conditions with our high-quality enclosures.
Order your Multicomp Series MC001064 sealed enclosure today and equip your industrial projects with dependable protection and easy mounting solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001064?
You can click on the BUY or RFQ button to purchase MC001064 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001064?
You can download the MC001064 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001064?
MULTICOMP PRO
