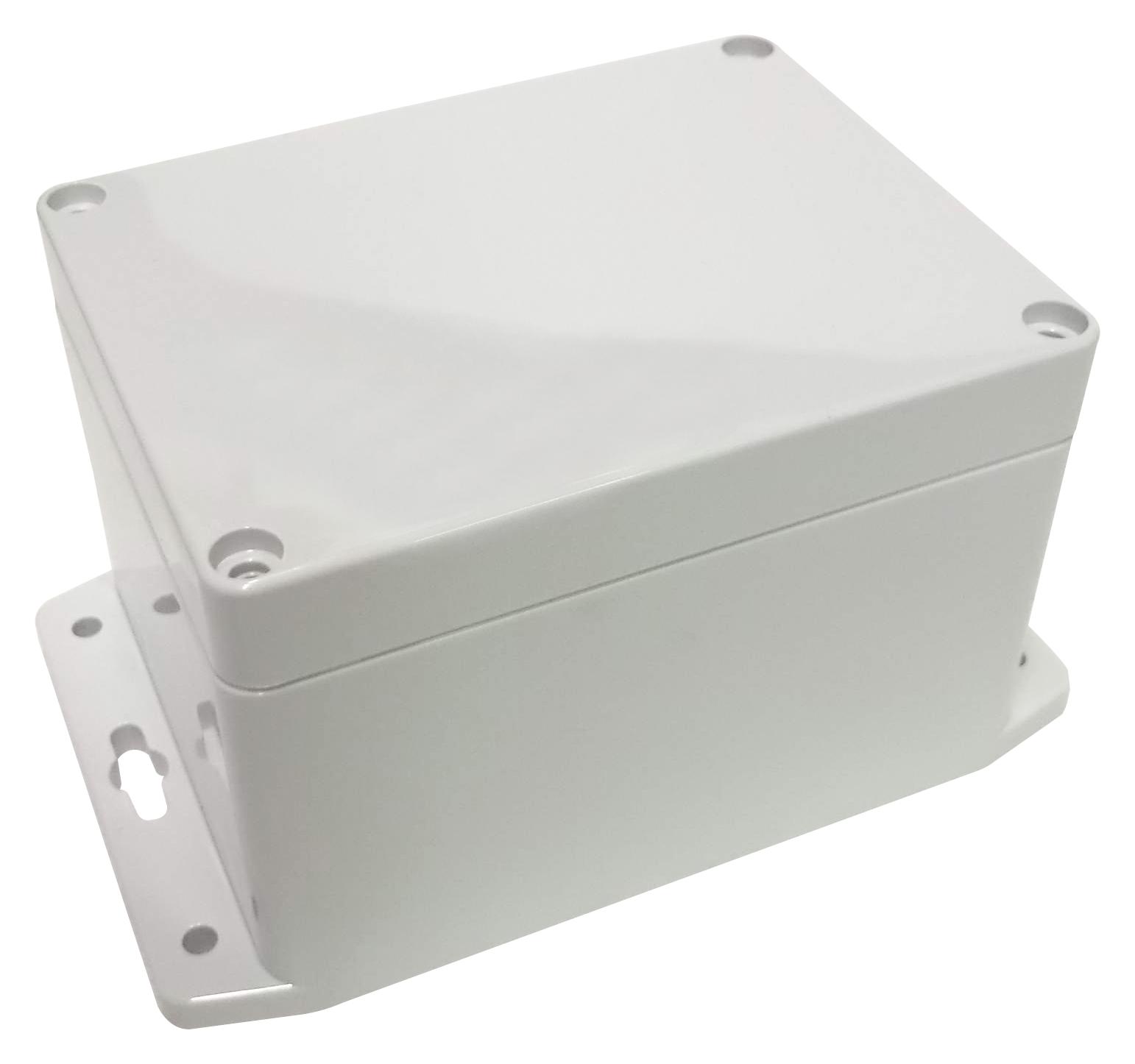

MULTICOMP-PRO MC001097 Sealed Enclosure
Sealed Polycarbonate and ABS enclosures with mounting flanges designed for industrial use. These enclosures feature IP65 protection, incorporating tongue and groove sealing with EPDM gaskets. Suitable for wall mounting, they offer internal guides for PCB mounting, and bosses for fixing internal components. Made from impact-resistant polycarbonate or ABS material, they operate within temperature ranges of -40°C to 120°C for polycarbonate and -20°C to 80°C for ABS. They are available in various sizes and colors, including clear, light gray, and dark gray, with compatible screw hole options for M3X4mm self-tapping screws and M4 pan head machine screws.
MULTICOMP-PRO MC001097 Sealed Enclosure Specifications:
- Material: Polycarbonate (UL94-HB), ABS (UL94-HB)
- Operating Temperature: -40°C to 120°C (Polycarbonate), -20°C to 80°C (ABS)
- Ingress Protection: IP65 (Dust and hoseproof)
- Sealing System: Tongue and groove with EPDM gasket
- Wall Mounting Holes: Outside the sealing area
- Internal Bosses: for PCB fixation with M3X4mm self-tapping screws
- Internal Guide Slots: for vertical PCB mounting
- Available Colors: Clear, Light Grey, Dark Grey
- Dimensions Vary: Sizes from approximately 52x50x35 mm to 222x146x90 mm
- Suitable Screws: M3X4mm self-tapping, M4 pan head machine screws
- Material Flammability: UL94-HB
- Temperature Range: -40°C to 120°C for Polycarbonate enclosures, -20°C to 80°C for ABS enclosures
Buy the Polycarbonate Enclosure – Reliable Sealed Enclosures for Industrial Applications
Purchase your multicomp PRO sealed enclosures online today for dependable moisture and dust protection in industrial environments. These durable cases are designed to safeguard electrical and electronic components with their IP65 rating, ensuring leak-proof sealing through tongue and groove systems with EPDM gaskets. Available in various sizes and colors, including clear, light gray, and dark gray, they feature internal bosses for PCB fixation and guide slots for vertical mounting. Easy to install with compatible screws such as M3X4mm self-tapping and M4 pan head machine screws, making them ideal for versatile industrial uses.
Order your multicomp PRO Polycarbonate or ABS enclosure today and add reliable, IP65-rated protection to your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001097?
You can click on the BUY or RFQ button to purchase MC001097 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001097?
You can download the MC001097 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001097?
MULTICOMP-PRO
