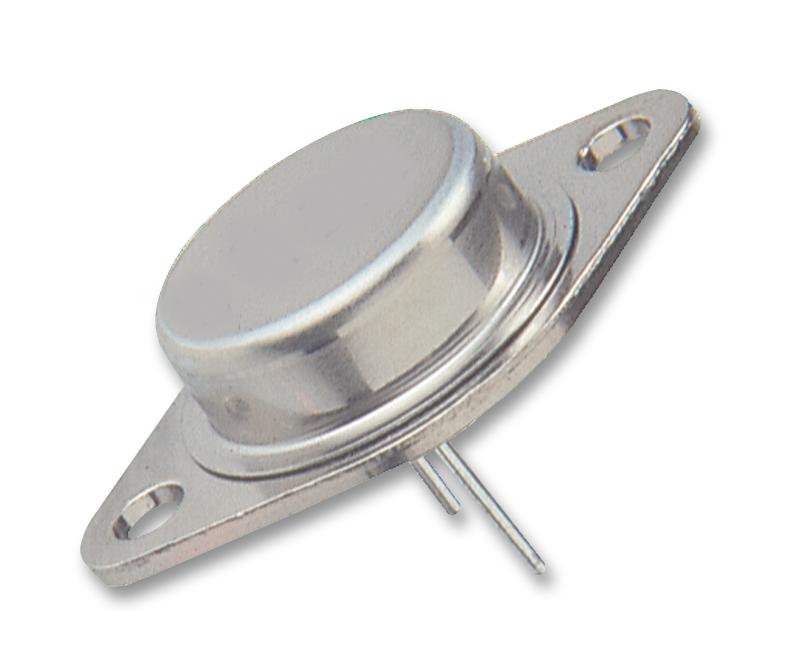

MULTICOMP PRO MJ2501 Power Transistor
The MJ2501 is a -80V silicon PNP complementary power transistor designed for use as output devices in general-purpose amplifier applications. It features high DC current gain, monolithic construction with built-in base-emitter shunt resistors. This product is suitable for industrial applications and is part of Multicomp Pro's rated lineup, which has a 4.6 out of 5-star rating. Customers should be aware of potential lead time extensions due to market demand, and note that the product is exempt from discounts.
MULTICOMP PRO MJ2501 Power Transistor Specifications:
- Collector-Emitter Voltage Vceo: 80V
- Emitter-Base Voltage VEBO: 5V
- Collector Current - Continuous Ic: 10A
- Peak Collector Current: 12A
- Power Dissipation at Tc = 25°C: 150W
- Total Power Dissipation Derate: 0.857 W/°C
- Operating and Storage Junction Temperature Range: -55°C to +200°C
- Thermal Resistance Junction to Case R@jc: 1.17°C/W
- Dimensions (Millimeters): A: 38.75-39.96, B: 19.28-22.23, Cc: 7.96-9.28, D: 11.18-12.19, E: 25.2-26.67, F: 0.92-1.09, G: 1.38-1.62, H: 29.9-30.4, I: 16.64-17.3, J: 3.88-4.36, K: 10.57-11.16
Buy the Buy Multicomp MJ2501 Part Number MJ2501 Online
Purchase the Multicomp MJ2501 online today and benefit from its high DC current gain, -80V operation, and monolithic design ideal for general-purpose amplifier output devices. This high-power transistor offers robust performance with a collector-emitter voltage of 80V and continuous collector current of 10A, ensuring durability and efficiency in industrial and electronic applications. With an excellent reputation and fast worldwide shipping, order now to enhance your electronics projects with this reliable power component, backed by competitive pricing and technical support.
Buy Multicomp MJ2501 now and experience unmatched reliability and high power performance for industrial amplifier applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MJ2501?
You can click on the BUY or RFQ button to purchase MJ2501 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MJ2501?
You can download the MJ2501 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MJ2501?
MULTICOMP PRO
