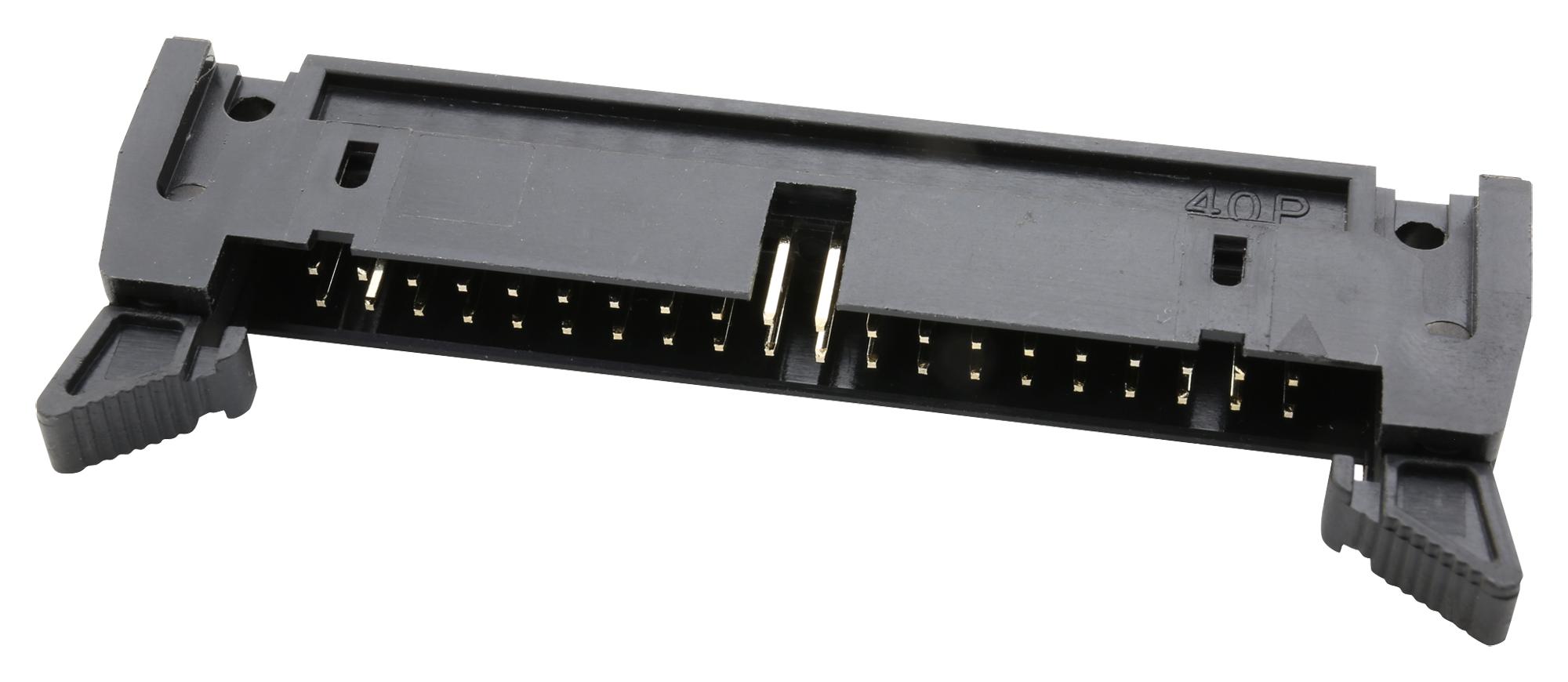

MULTICOMP PRO MC25440LLRADIP electronic header connector
This 2.54mm shrouded header with ejector is designed for reliable connection in electronic assemblies, featuring a double row, right angle, through hole configuration. It boasts an operating temperature range from -40°C to +105°C, with a current rating of 8A AC/DC and voltage rating of 250V. Constructed from UL94V-0 rated PBT plastic, it has gold-plated copper alloy contacts providing excellent conductivity. Available with short or long ejectors, these headers come in various pin counts up to 64 positions, ensuring secure, easy-to-mate connections for industrial and electronic applications.
MULTICOMP PRO MC25440LLRADIP electronic header connector Specifications:
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: PBT (UL94V-0)
- Contact Material: Copper Alloy
- Plating: Gold Plated
- Pin Spacing: 2.54mm
- Type: Double Row, Right Angle, Through Hole
- Configurations: Various pin counts (10, 14, 16, 20, 26, 34, 40, 50, 60, 64)
- Dimensions A and B vary with pin count, from approximately 10.16mm to 78.74mm in length
Buy the Buy multicomp Series MC25440LLRADIP Part Number MC25440LLRADIP Online
Get your multicomp Series MC25440LLRADIP 2.54mm shrouded header with ejector online today. This high-quality industrial connector features double row, right angle, through hole design, gold-plated contacts, and adjustable pin counts. Perfect for assembling reliable electronic systems, it operates from -40°C to +105°C, handles 8A current, and is rated for 250V. Enjoy fast shipping, competitive prices, and a seamless purchase experience for your manufacturing or repair needs.
Order your multicomp Series MC25440LLRADIP 2.54mm shrouded header today and ensure secure, reliable connections for your electronic projects.
