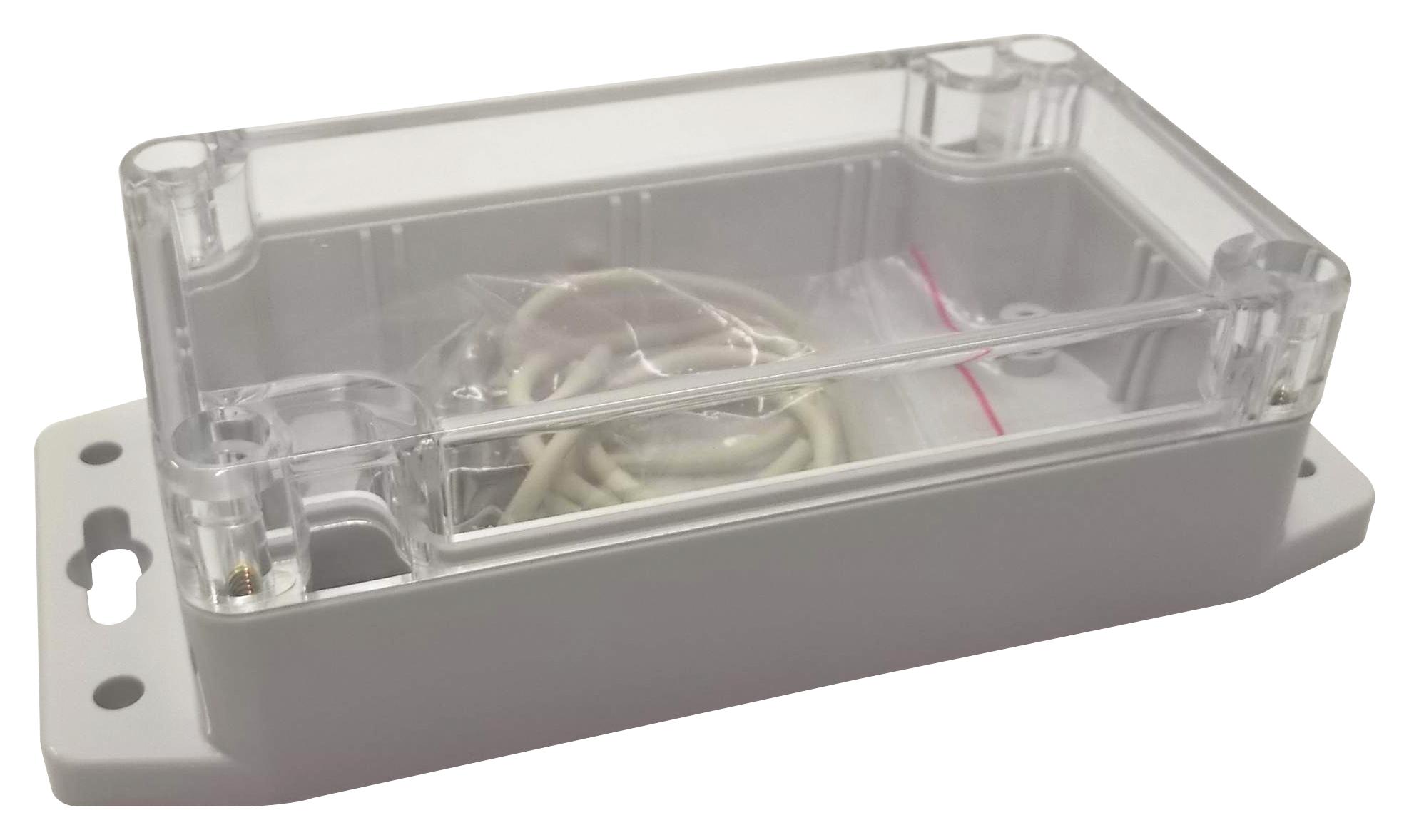

MULTICOMP PRO MC001104 Sealed Enclosure
Sealed polycarbonate and ABS enclosures with mounting flange designed for industrial applications. These enclosures feature a tongue and groove sealing system with EPDM gasket, IP65 dust and hose protection, and external mounting holes to prevent moisture ingress. Available in clear or light grey polycarbonate and dark grey impact-resistant ABS, they support horizontal and vertical PCB mounting with internal guides and boss fixing points. The enclosures are suitable for various environments, with operating temperature ranges from -40°C to 120°C for polycarbonate and -20°C to 80°C for ABS, ensuring durability and reliable protection for electronic components.
MULTICOMP PRO MC001104 Sealed Enclosure Specifications:
- Material: Polycarbonate (UL94-HB) or ABS (UL94-HB)
- Operating Temperature: -40°C to 120°C (Polycarbonate), -20°C to 80°C (ABS)
- Protection Rating: IP65 (Dust and hoseproof)
- Design: Tongue and groove sealing with EPDM gasket
- Mounting: External mounting holes, bosses for PCB fixing
- Lids: Clear or light grey (Polycarbonate), dark grey (ABS)
- Dimensions vary by model, e.g., 90 x 35 x 35 mm to 222 x 146 x 90 mm
- Mounting Flange: Bottom of base, compatible with pan head machine screws
- Internal Features: Guide slots for vertical PCB mounting, boss fixing for PCBs and terminals
Buy the Buy Multicomp Sealed Enclosure Part Number MC001104 Reliable PCB Protection
Purchase your high-quality sealed enclosure from Multicomp Pro today and ensure maximum protection for your electronic components. Designed for industrial applications, these enclosures feature IP65 dust and hoseproof ratings, tongue and groove sealing with EPDM gasket, and compatible mounting options. Available in polycarbonate and ABS with clear or light grey finishes, they support horizontal and vertical PCB mounting with internal guides. Their robust construction withstands temperatures from -40°C to 120°C for polycarbonate and -20°C to 80°C for ABS, making them ideal for challenging environments.
Order your Multicomp Series MC001104 high-impact ABS enclosure today and give your electronics the durable protection they need in demanding environments.
