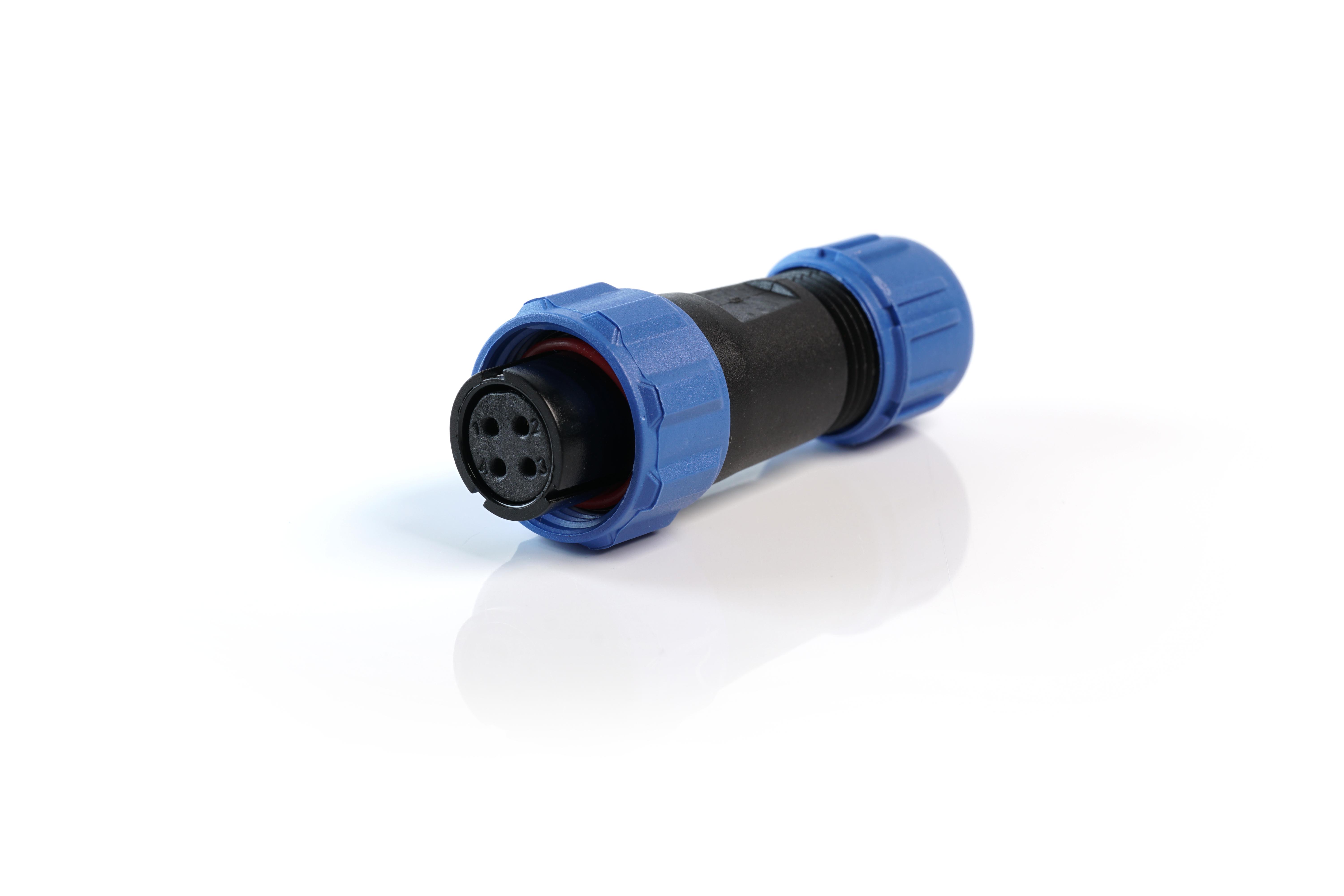

MULTICOMP-PRO MP002517 Circular Connector
The MP-T13 IP68 series connectors are durable and weather-resistant, designed for reliable outdoor and indoor use. Featuring threaded couplings and a compact shell, these connectors offer IP68 sealing for dust and water protection. They come in various configurations, including panel, cable, and inline mountings, catering to diverse installation needs. Rated for up to 13mm panel cut-outs, with solder termination and available in 2, 3, 4, 5, and 7 pole options, they are ideal for industrial automation, security systems, medical devices, and test and measurement equipment. An IP68-rated dust cap enhances protection against environmental elements.
MULTICOMP-PRO MP002517 Circular Connector Specifications:
- Material and Specifications Compliant
- Coupling: Threaded
- Shell Material: PC, PPS insert, Brass contact with gold plating
- Shell and Insert Material: Reming Nat Nut, Back Shell, Compressing Nut, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- Ingress Protection Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Rated Current: 13A / 5A / 5A
- Rated Voltage: 250V / 250V / 200V / 180V / 125V
- Contact Resistance: 2.5mΩ / 2.5mΩ / 5mΩ / 5mΩ / 5mΩ
- Number of Contacts: 2, 3, 4, 5, 7
- Cable Outer Diameter Range: 4mm to 8mm
- Dimensions: Fit 13mm panel cut-outs, various sizes for different configurations
- Applications include automation, process control, medical, security, and industrial environments
Buy the Buy Multicomp IP68 Circular Connector Part Number MP002517 Online
Enhance your connection reliability with the durable MP-T13 IP68 circular connector. Perfect for outdoor and indoor applications, these connectors feature threaded couplings, weather sealing, and a compact shell design, suitable for various configurations including panel, cable, and inline mountings. Available in multiple pole options, rated for 13mm panel cut-outs, with solder termination for secure wiring. Ideal for automation, security, medical devices, and industrial use, providing high ingress protection and long-term performance. Order online now for fast, secure delivery.
Get Multicomp IP68 circular connector MP002517 today—designed for outdoor durability, industrial automation, and long-lasting reliable connections.
