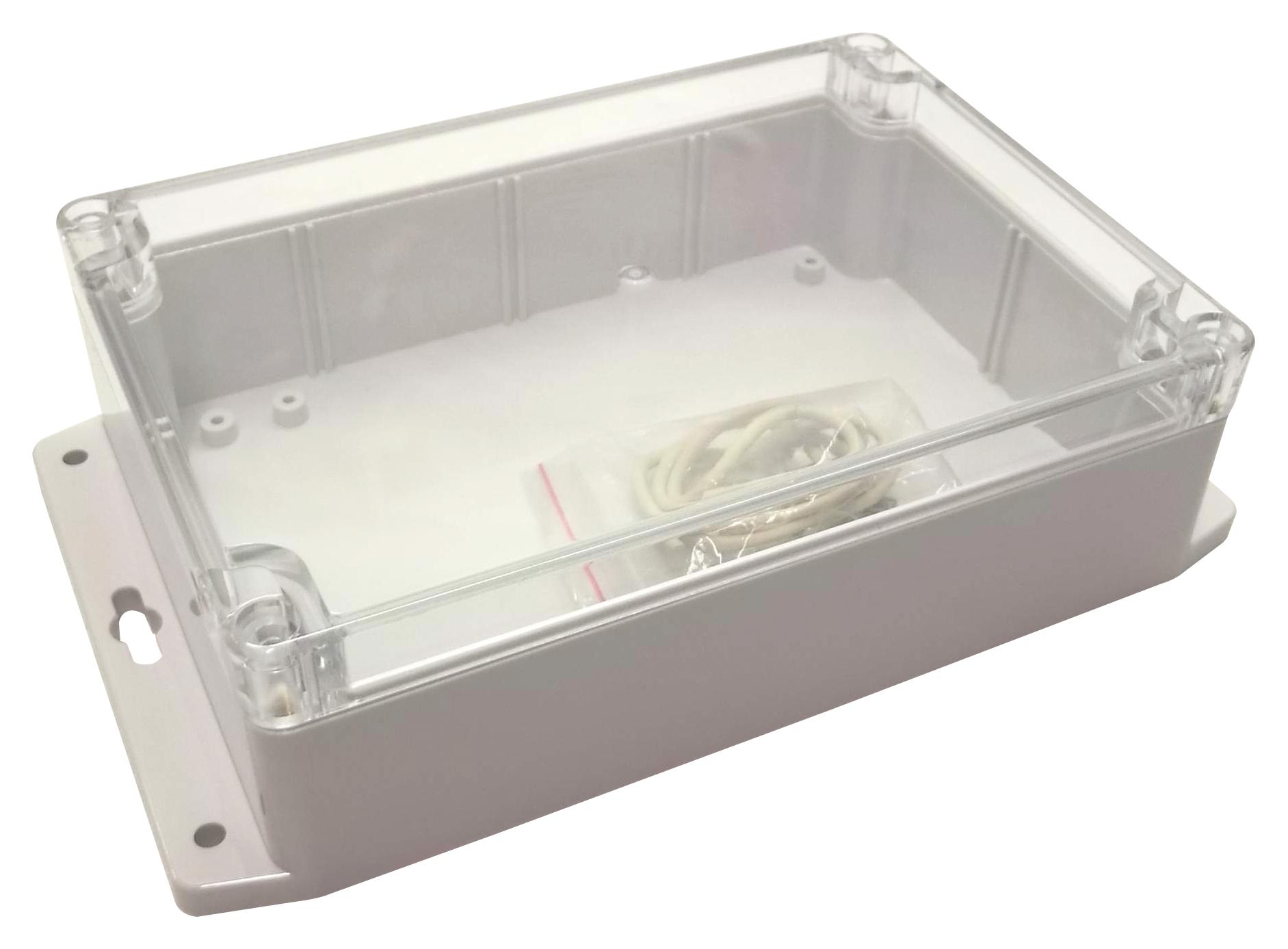

MULTICOMP PRO MC001108 Sealed Enclosure
Polycarbonate and ABS enclosures with mounting flanges designed for industrial protective applications. Featuring sealed designs with tongue and groove systems, these enclosures are dust and hoseproof (IP65). Polycarbonate variants withstand temperatures from -40°C to 120°C, while ABS variants operate from -20°C to 80°C. They include external mounting holes compatible with M3, M4, and M6 self-tapping or machine screws. Available in clear, light grey, and dark grey, these enclosures are ideal for electronic and control systems requiring robust, sealed housing with easy wall mounting and internal PCB fixation options.
MULTICOMP PRO MC001108 Sealed Enclosure Specifications:
- Material: Polycarbonate (UL94-HB) or ABS (UL94-HB)
- Operating Temperature: -40°C to 120°C (Polycarbonate), -20°C to 80°C (ABS)
- Sealing System: Tongue and groove with EPDM gasket
- Protection Level: IP65 (dust and hoseproof)
- Mounting Holes: External, compatible with M3, M4, M6 self-tapping or machine screws
- Internal Bosses: Allow fixing PCBs horizontally or Connecting terminals with M3X4mm screws
- Wall Mounting: Flange designed on the base for easy screw mounting
- Available Colors: Clear, Light Grey, Dark Grey
- Dimensions: Ranging from 52x50x35mm to 222x146x90mm depending on model
Buy the Multicomp Series Enclosure: Sealed Polycarbonate and ABS housings for electronics MC001108
Buy the reliable Multicomp Pro Sealed Enclosure MC001108 online today. Crafted from high-impact polycarbonate or ABS, these IP65-rated housings provide excellent dust and moisture protection for electronic components. Features include tongue and groove sealing, external mounting holes compatible with M3, M4, and M6 screws, and internal bosses for PCB fixation. Available in clear, light grey, and dark grey, these enclosures ensure durability and ease of installation for a wide range of industrial, automation, and control applications, making them an essential part of your electronics toolkit.
Get Multicomp Pro enclosure MC001108 today—built for durability, sealing, and easy wall mounting in your electronic project or control system.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001108?
You can click on the BUY or RFQ button to purchase MC001108 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001108?
You can download the MC001108 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001108?
MULTICOMP PRO
