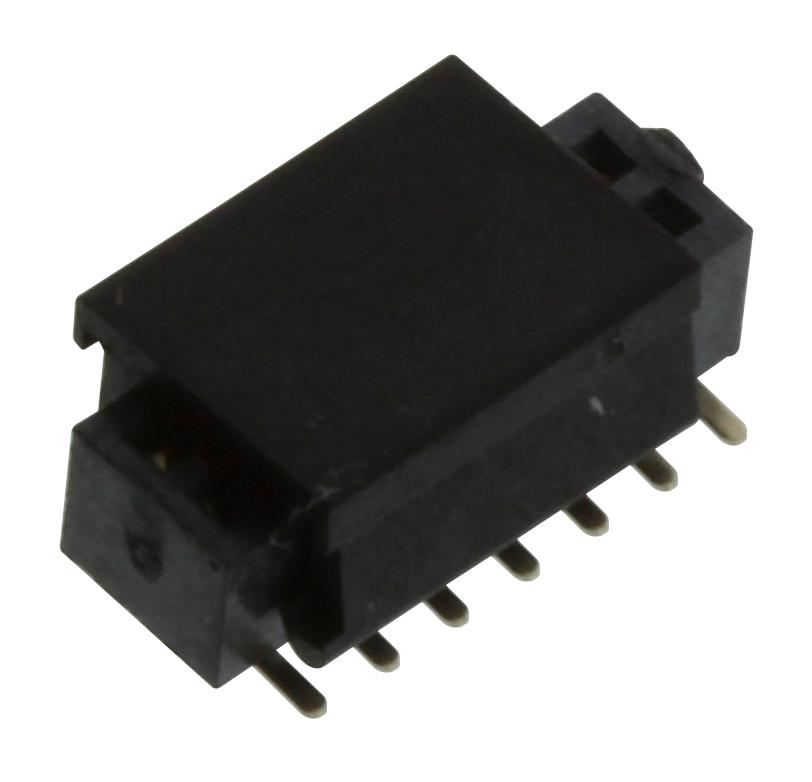

MULTICOMP-PRO MCSVS1D14G PCB Socket
This PCB socket with cap is designed for surface-mount device applications, featuring a double row, vertical orientation, and 1mm pitch compatibility. Constructed from high-temperature nylon with gold-plated phosphor bronze contacts, it ensures reliable electrical connections and durability in industrial environments. Its RoHS compliance makes it suitable for environmentally conscious manufacturing. The socket supports up to 20 positions, has a maximum current rating of 1A AC/DC, and a voltage rating of 100V AC/DC. It operates in temperatures from -40°C to +105°C, making it ideal for various electronic assembly and PCB interface needs.
MULTICOMP-PRO MCSVS1D14G PCB Socket Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 100V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 5000MΩ Min.
- Dielectric Withstanding Voltage: 500V AC
- Operating Temperature Range: -40°C to +105°C
- Material: High temp. plastic (Nylon 6T UL94V-0)
- Color: Black
- Contact Material: Phosphor Bronze
- Plating: Gold Plated
- Dimensions: Millimetres, detailed diagram available
- Type: Double row, vertical, SMD, 1mm pitch, 20 POS
Buy the Multicomp Pro MC-SVS1-D14-G – Reliable PCB Socket for Industrial Applications
Purchase the Multicomp Pro MC-SVS1-D14-G PCB socket online today. Designed with a double row vertical SMD configuration, this 1mm pitch socket ensures reliable connections, durability, and RoHS compliance. Ideal for industrial electronics, it features high-temp nylon insulator, gold-plated phosphor bronze contacts, and supports up to 20 positions. Its operating temperature range from -40°C to +105°C makes it versatile for various environments. Buy online now to enhance your PCB assembly with confidence and quality.
Get Multicomp Pro MC-SVS1-D14-G today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCSVS1D14G?
You can click on the BUY or RFQ button to purchase MCSVS1D14G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSVS1D14G?
You can download the MCSVS1D14G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCSVS1D14G?
MULTICOMP-PRO
