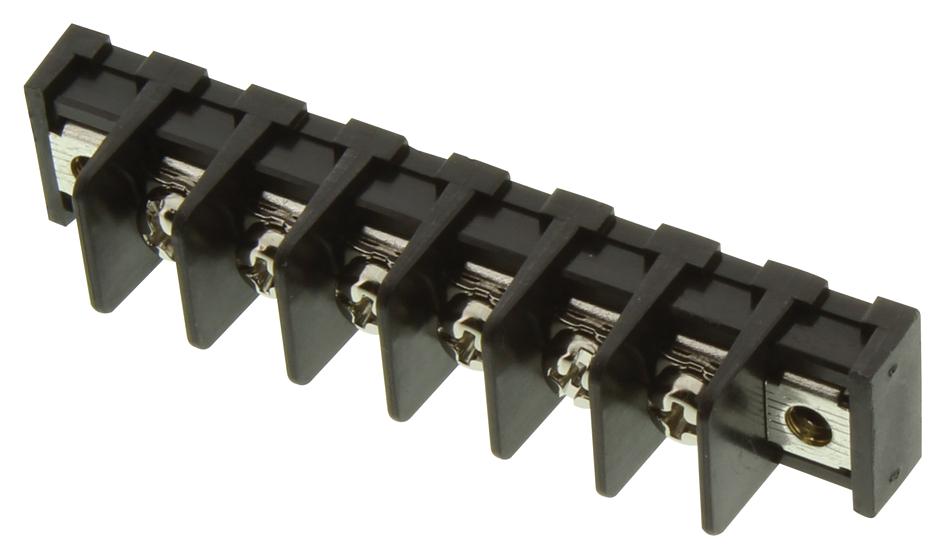

MULTICOMP PRO MC001354 Terminal Block
This terminal block is a versatile and reliable connection component designed for electrical applications. With a current rating of 20Amp at 300V and insulation withstand voltage of AC2000V min, it ensures safety and durability. Suitable for wire ranges from 114 AWG to 22 AWG with a strip length up to 9mm, it features a robust PBT insulating body, brass tin-plated terminals, and steel nickel-plated screws. Operable within -40°C to +120°C, it offers high insulation resistance over 2,000MQ DC500V. Available in multiple pole configurations, this terminal block is ideal for compact, high-performance electrical connections.
MULTICOMP PRO MC001354 Terminal Block Specifications:
- Current Rating: 20Amp at 300V
- Insulation withstand voltage: AC2000V min
- Insulation Resistance: >2,000MQ DC500V
- Operation Temperature: -40°C to +120°C
- Wire Range: 114 AWG to 22 AWG
- Wire Strip Length: up to 9mm
- Screw Torque: 12lb-inch
- Body Material: PBT (UL94V-0)
- Terminal Material: Brass Tin Plate
- Screw Material: Steel Ni Plate
- Dimensions: Vary by model, with lengths from 40.5mm to 135.5mm and widths from 9.5mm to 104.5mm
Buy the Multicomp Series Terminal Block: MC001354
Purchase the Multicomp Series terminal block online today to enjoy reliable electrical connection solutions suitable for a wide range of industrial and automation applications. This product offers a high current rating of 20Amp at 300V, with excellent insulation properties and a wide operating temperature range. Its robust construction, featuring UL94V-0 rated PBT body, brass tin-plated terminals, and steel screw fittings, guarantees durability and safety. Available in various pole configurations, this terminal block is ideal for compact electrical systems that demand precision and reliability.
Order your Multicomp Series MC001354 terminal block today and ensure secure, high-performance electrical connections in your projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001354?
You can click on the BUY or RFQ button to purchase MC001354 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001354?
You can download the MC001354 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001354?
MULTICOMP PRO
