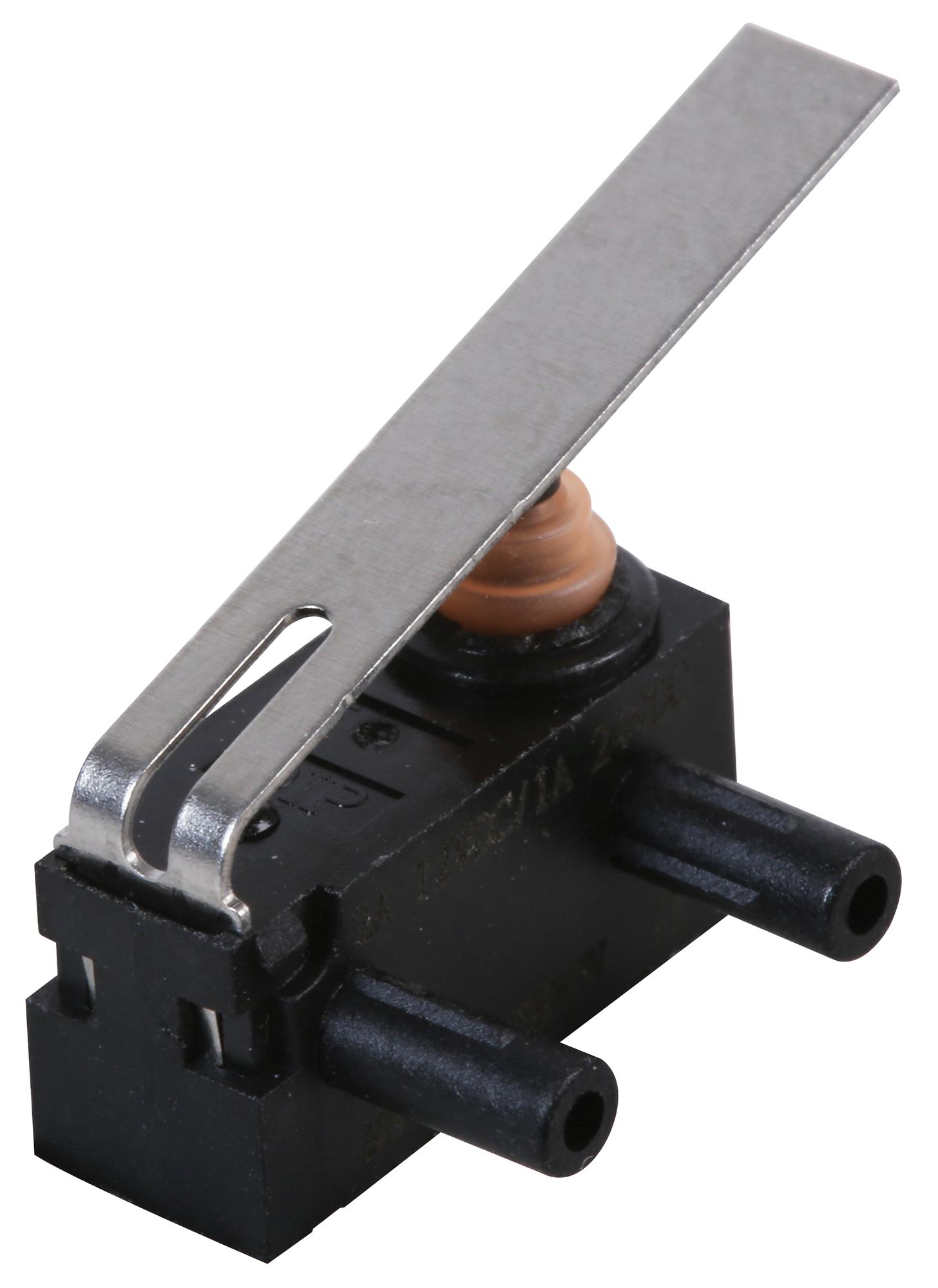

MULTICOMP PRO MP006218 Microswitch
The MP006218 is a high-reliability snap action microswitch featuring a long hinge lever and solder lug terminals. Designed for industrial automation, automotive controls, and household appliances, it offers rated voltages up to 12V DC with a 2A resistive load, and features robust construction with a contact resistance of 150mΩ max. The switch has an operating force of 122gf and a release force of 5gf, with a total travel of 6mm. Sealed IP67, it withstands temperatures from -40°C to +85°C, ensuring durability and consistent performance in demanding environments.
MULTICOMP PRO MP006218 Microswitch Specifications:
- Rated Voltage: 12V DC
- Resistive Load: 2A
- Operating Force: 122gf (1.2N)
- Release Force: 5gf (0.05N)
- Overtravel: 2.5mm
- Total Travel: 6mm
- Temperature Range: -40°C to +85°C
- Sealed IP67
- Contact Resistance: 150mΩ Max.
- Durability: Mechanical 1,000,000 cycles Min., Electrical 100,000 cycles Min.
- Insulation Resistance: 100MΩ Min. (at 500V DC)
- Dielectric Strength: 600V AC (same polarity), 1500V AC (ground and non-current parts)
Buy the Buy Multicomp Pro Microswitch Part Number MP006218 Online
Order the Multicomp Pro microswitch MP006218 online today for reliable performance in automation, automotive, and household appliances. This sealed IP67 switch offers a 12V DC rating with 2A capacity, robust construction, and high durability, making it ideal for demanding environments. Its operating force of 122gf and total travel of 6mm ensures quick response and long service life. Perfect for applications requiring precision, stability, and quality, it is your ideal choice for industrial and consumer devices.
Get Multicomp Pro MP006218 today—designed for industrial precision, automotive reliability, and long-lasting durability.
