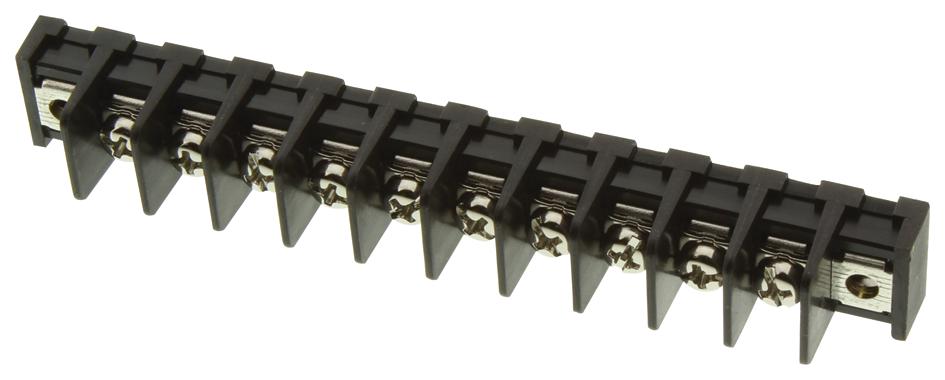

MULTICOMP PRO MC001356 Terminal Blocks
Terminal blocks are essential electrical components used to connect and organize wiring in various electrical circuits. Made from high-quality insulating PBT with UL94V-0 flame rating and featuring brass terminals with tin plating, these blocks support current ratings up to 20Amp at 300V. They withstand insulation voltages of AC2000V minimum and operate reliably within a temperature range of -40°C to +120°C. Designed for wire ranges from 22 to 14 AWG with a stripping length of up to 9mm, they are secured with steel screws tightened to 12lb-inch. Their dimensions vary based on the number of poles, offering flexible application options for industrial and automation projects.
MULTICOMP PRO MC001356 Terminal Blocks Specifications:
- Current Rating: 20Amp
- Voltage: 300V
- Insulation Voltage: AC2000V min
- Insulation Resistance: >2,000MQ at DC500V
- Operation Temperature: -40°C to +120°C
- Wire Range: 14 AWG to 22 AWG
- Wire Strip Length: up to 9mm
- Screw Torque: 12 lb-inch
- Material: Insulating PBT (UL94V-0), Brass with Tin Plating, Steel with Nickel Plating
- Dimensions: Varies with number of poles, e.g., 97.5mm x 66.5mm for 8 poles
- Poles: 2, 3, 4, 5, 6, 8, 10, 12
Buy the Multicomp Series Terminal Blocks: MC001356
Enhance your electrical setups with high-quality terminal blocks designed for secure wiring and reliable performance. Featuring insulation withstands of AC2000V, current ratings of up to 20Amp at 300V, and operating temperatures from -40°C to +120°C, these terminal blocks suit a wide range of industrial applications. Constructed with UL94V-0 rated PBT insulators, brass terminals with tin plating, and steel screws, they ensure safety and durability. Available in multiple pole configurations, these components simplify wiring organization and enhance system reliability. Purchase online today for fast delivery and expert support.
Order your Multicomp Series Terminal Block MC001356 today and give your electrical projects the dependable quality they deserve with reliable connections and safety.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001356?
You can click on the BUY or RFQ button to purchase MC001356 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001356?
You can download the MC001356 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001356?
MULTICOMP PRO
