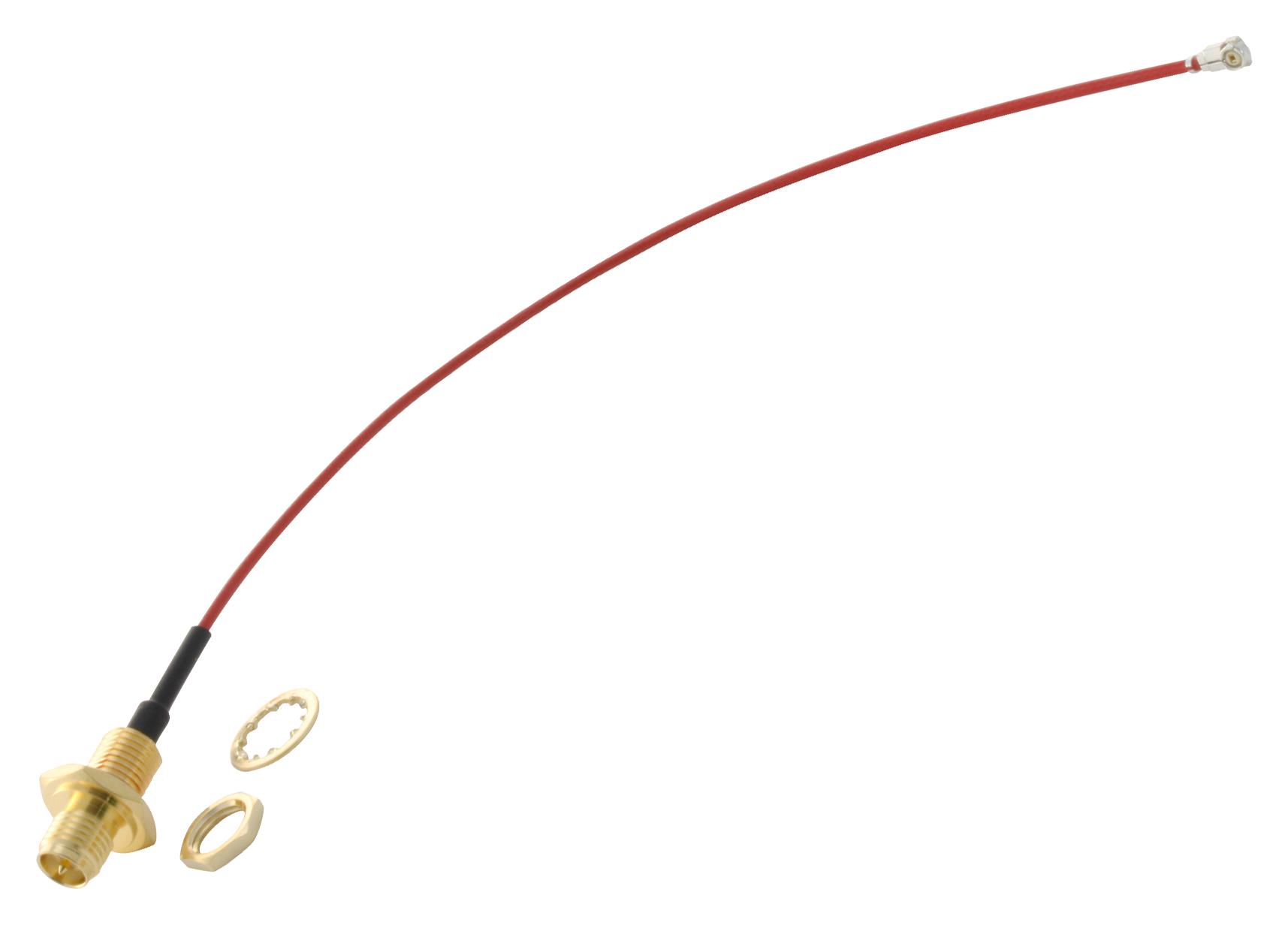

MULTICOMP-PRO MC001497 RPSMA Bulkhead Jack
The IP67 RPSMA Bulkhead Jack - UFL from Multicomp Pro is a high-performance RF connector designed for reliable outdoor and indoor applications. It features a frequency range up to 6 GHz, impedance of 50 ohms, and a durable IP67 waterproof seal to prevent dust and water ingress. The connector supports a working voltage of 60 Vrms and dielectric withstanding voltage of 200 Vrms. Compatible with 1.37 mm cables, it includes a crimp connector, halogen-free shell, and heat shrink tubing for secure installation and long-term stability in wireless communication and RF systems.
MULTICOMP-PRO MC001497 RPSMA Bulkhead Jack Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 6 GHz
- Working Voltage: 60 Vrms maximum
- Dielectric Withstanding Voltage: 200 Vrms
- Insulator Resistance: 500 MΩ minimum
- VSWR: 1.65:1 maximum
- Insertion Loss: -1.4 dB maximum
- Sealing: IP67 rated waterproof and dustproof
- Connector Type: RP-SMA bulkhead jack
- Cable Compatibility: 1.37 mm diameter cable
- Dimensions: Mounting hole diameter approximately 14 mm (216.4 mm length)
- Material: Metal shell with O-ring seal
- RoHS compliant
Buy the Multicomp Series RPSMA IP67 Bulkhead Jack: MC001497
Get your RPSMA Bulkhead Jack for high-frequency wireless and RF applications today. This IP67-rated connector guarantees waterproof performance, excellent impedance stability, and durable construction for outdoor and rugged environments. Designed for reliable connections up to 6 GHz, it features a compact bulkhead mount, a corrosion-resistant metal shell, and compatible 1.37 mm cables for easy installation. Perfect for outdoor antennas, wireless systems, and RF equipment, order online now and enhance your communication projects with top-quality connectivity components.
Order your Multicomp Series RPSMA IP67 Bulkhead Jack MC001497 today and ensure reliable waterproof RF connections for outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001497?
You can click on the BUY or RFQ button to purchase MC001497 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001497?
You can download the MC001497 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001497?
MULTICOMP-PRO
