MULTICOMP-PRO MC001499 RF Connector

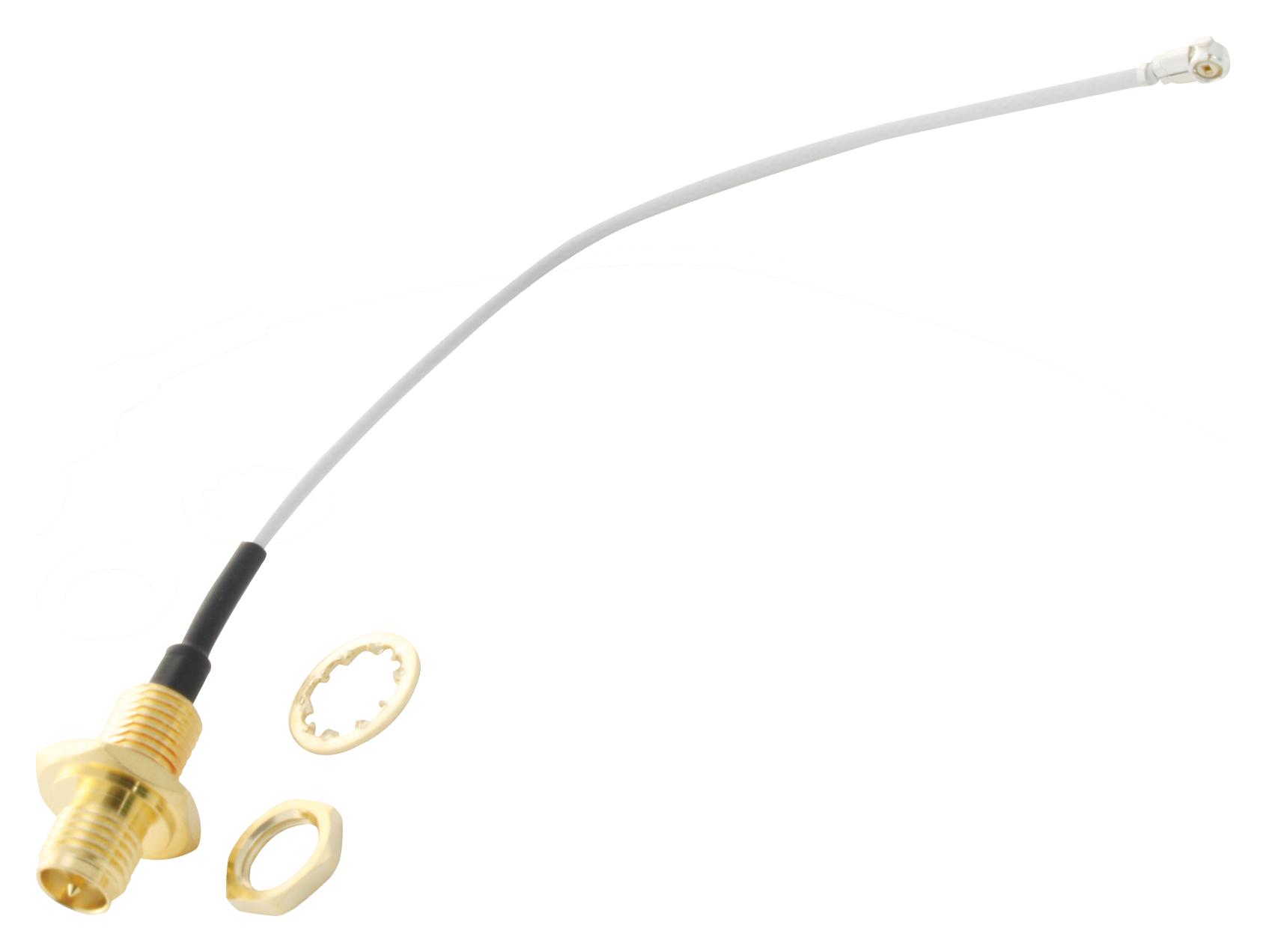

The IP67 RPSMA Bulkhead Jack with UFL connector is a high-quality, weather-resistant RF connector suitable for outdoor and rugged applications. It features a 50Ω impedance, operates across a frequency range up to 6 GHz, and supports a maximum working voltage of 60 Vrms. The connector offers low insertion loss of -1.2 dB and a VSWR of 1.65:1. Designed with durability and ease of installation in mind, it includes a halogen-free shell, crimp contact, and black heat shrink tube, making it ideal for RF, wireless, and communication systems requiring reliable performance in harsh environments.
MULTICOMP-PRO MC001499 RF Connector Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 6 GHz
- Working Voltage: 60 Vrms Max.
- Dielectric Withstanding Voltage: 200 Vrms Max.
- Insulator Resistance: 500 MΩ Min.
- Insertion Loss: -1.2 dB Max.
- VSWR: 1.65:1 Max.
- RoHS Compliant
- Material: Halogen-free shell, black heat shrink tube
- Connector Type: RPSMA bulkhead jack with UFL interface
- Cable: 1.37mm white cable
- Dimensions: Suitable mounting hole diameter of 12.5 mm
- Temperature Range: Not specified
- Certifications: IP67, RoHS
Buy the Multicomp RPSMA – Reliable RF Connectors for Industrial Applications
Enhance your RF systems with the durable and reliable IP67 RPSMA bulkhead jack with UFL, designed for outdoor use and high-performance connectivity. This connector offers a 50Ω impedance, operates up to 6 GHz, and features low insertion loss, ensuring minimal signal degradation. Its weatherproof design and easy installation make it perfect for wireless communication, antenna systems, and outdoor RF applications requiring secure, high-quality performance. Purchase online today to keep your projects connected, safe, and ready for any environment.
Order your Multicomp Pro series MC001499 RPSMA bulkhead jack today and ensure your wireless projects perform reliably in harsh outdoor environments.
