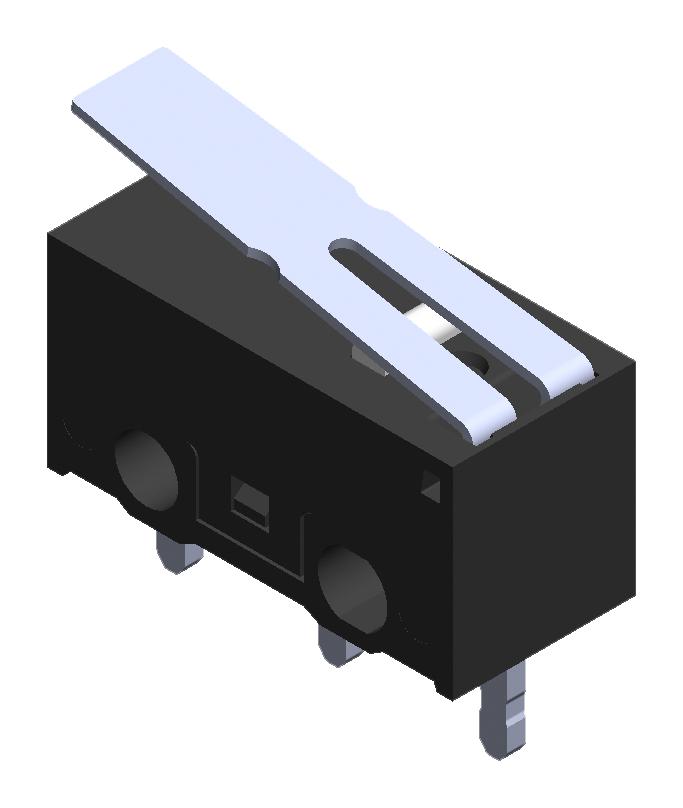

MULTICOMP PRO MP005549 Microswitch
The through hole snap action microswitches are highly reliable, compact, and designed for industrial and household applications. Featuring mechanical durability of over 1 million cycles and electrical durability of at least 8,000 cycles, these switches operate within a temperature range from -25°C to +75°C. They have a contact rating of 3A at 125V AC and 0.1A at 30V DC, making them suitable for various electronic, security, communication, projector, mouse, and appliance controls. Equipped with multiple actuator options including hinge, bent, pin plunger, and simulated roller levers, they meet UL and RoHS standards for safety and environmental compliance.
MULTICOMP PRO MP005549 Microswitch Specifications:
- Contact Rating: 3A at 125V AC, 0.1A at 30V DC
- Durability: Mechanical over 1,000,000 cycles, Electrical over 8,000 cycles
- Contact Resistance: 100mΩ MAX
- Insulation Resistance: 100MQ MIN
- Dielectric Strength: AC 1500V for 1 minute between current-carrying parts and ground, AC 1500V between terminals
- Operating Temperature: -25°C to +75°C
- Actuator Options: Hinge, bent, pin plunger, simulated roller lever
- Standards: UL Listed, RoHS compliant
- Physical Dimensions: varies with actuator type, typical height around 6.9mm to 11.8mm
- Physical Configuration: Through hole mounting, snap action
Buy the Farnell MP005549 – Reliable Microswitch for Industrial Applications
Purchase Farnell Microswitch MP005549 online today for dependable operation in industrial, security, communication, and household electronic equipment. Featuring multiple actuator choices including hinge, bent, pin plunger, and simulated roller levers, these compact switches ensure long life, high reliability, and safety compliance. Rated at 3A at 125V AC and 0.1A at 30V DC, they meet UL and RoHS standards. Suitable for circuit control, automation systems, and safety devices, they deliver exceptional performance, durability, and easy integration for your projects.
Get Farnell MP005549 today—built for precision, long-lasting durability, and versatile actuator options for industrial and household use.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005549?
You can click on the BUY or RFQ button to purchase MP005549 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005549?
You can download the MP005549 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005549?
MULTICOMP PRO
