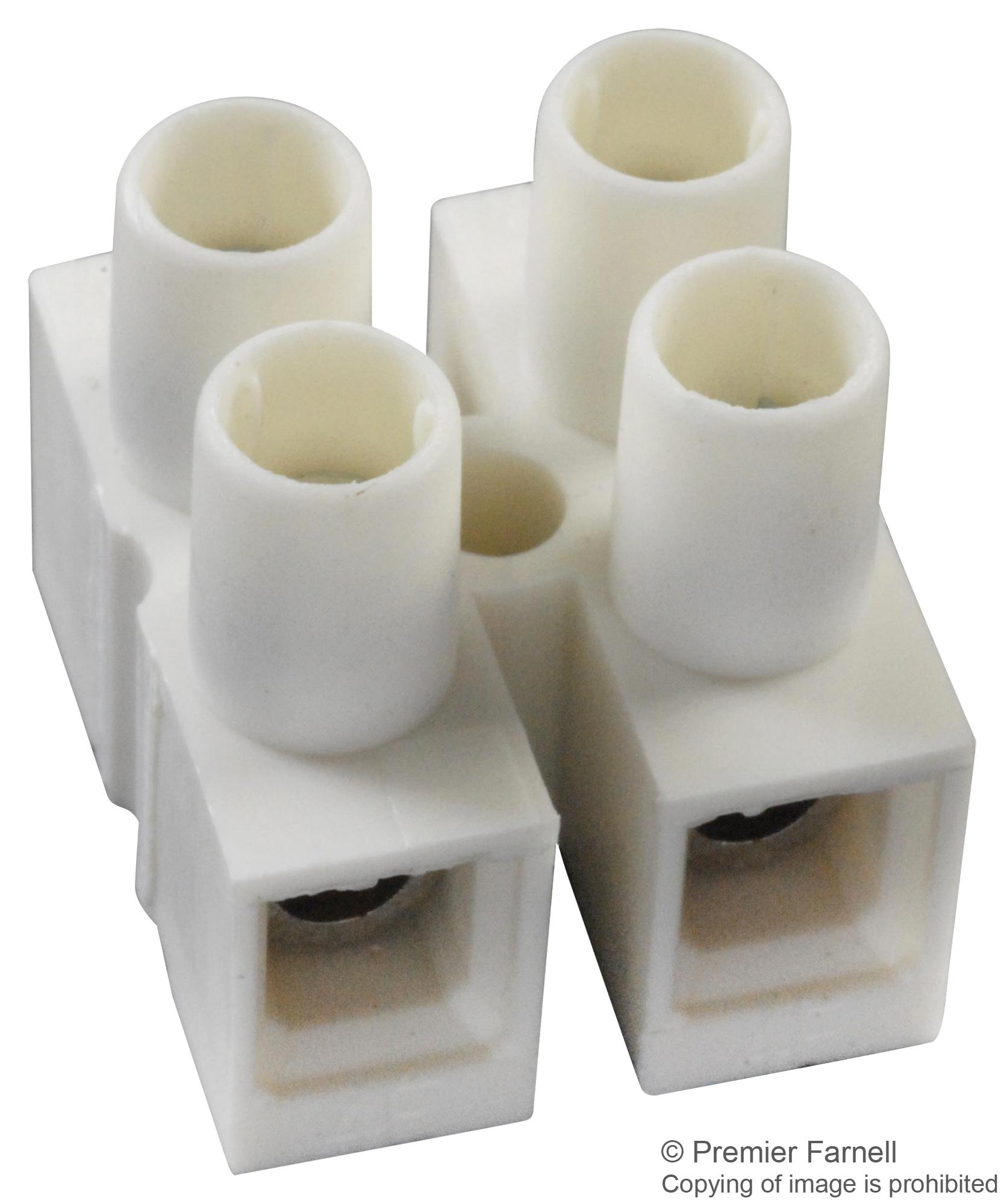

MULTICOMP-PRO MC001819 Industrial terminal block
The MC001819 from Multicomp Pro is a dual-row, type H terminal block with an 8.2mm pitch and four poles, suitable for wire sizes from 12 AWG to 22 AWG. It is rated for 20A current and 600V voltage, with a continuous operating temperature up to 105°C and an operating range from -30°C to +85°C. The terminal features an insulation withstand voltage of at least 2000VAC and an insulation resistance over 2000 MΩ at 500VDC. Made with white PA66 (UL94-V2) insulation, zinc-plated steel screws, and nickel-plated brass cage clamps, ideal for industrial wiring and automation systems.
MULTICOMP-PRO MC001819 Industrial terminal block Specifications:
- Current Rating: 20A
- Voltage Rating: 600V
- Wire Range: 12 AWG to 22 AWG
- Stripped Length: 4.5mm to 5.5mm
- Operation Temperature: -30°C to +85°C
- Max Operating Temperature: 105°C
- Insulation Withstands Voltage: ≥2000VAC
- Insulation Resistance: >2000 MΩ at 500VDC
- Insulation Material: PA66 (UL94-V2)
- Screw Material: Steel Zinc Plated
- Cage Clamp Material: Brass Ni Plated
- Dimensions: 14mm (A), 8.2mm (B), Length varies with model
- Compliance: RoHS
Buy the Multicomp 20A– Reliable Terminal Block for Industrial Applications
Purchase the durable and versatile industrial terminal block online today. Designed for wiring applications requiring 20A and 600V, this terminal block features an 8.2mm pitch, robust PA66 insulation, zinc-plated steel screws, and nickel-plated brass clamps. Its operating temperature range is -30°C to +85°C, with an insulation withstand voltage of at least 2000VAC and resistance exceeding 2000 MΩ at 500VDC. Suitable for automation and control wiring, this terminal block offers high reliability and safety for industrial environments.
Order your Multicomp Pro Series MC001819 terminal block today and ensure reliable, safe wiring connections for all your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001819?
You can click on the BUY or RFQ button to purchase MC001819 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001819?
You can download the MC001819 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001819?
MULTICOMP-PRO
