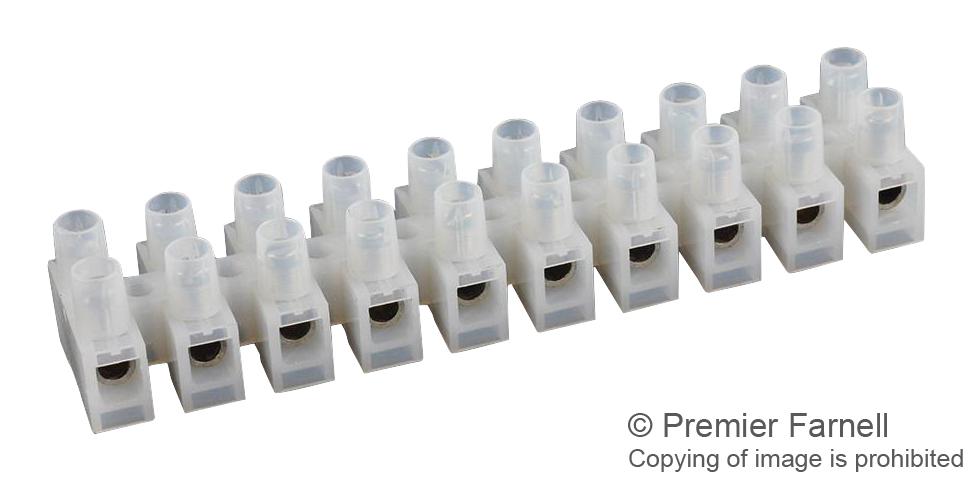

MULTICOMP-PRO MC001826 Dual-row Terminal Block
The MC001826 from Multicomp Pro is a dual-row, H-type terminal block with a 10mm pitch and 20 poles. It is designed for wire sizes ranging from 12AWG to 22AWG. The terminal block features a current rating of 30A and a voltage rating of 600V. Its maximum continuous operating temperature is 105°C, with an operational temperature range from -30°C to +105°C. Made of white PA66 (UL94-V0), it ensures high insulation resistance exceeding 2000 MΩ at 500VDC. Steel zinc-plated screws provide secure electrical connections for industrial wiring systems.
MULTICOMP-PRO MC001826 Dual-row Terminal Block Specifications:
- Current Rating: 30A
- Wire Range: 12AWG to 22AWG
- Voltage Rating: 600V
- Maximum Operating Temperature: 105°C
- Operational Temperature Range: -30°C to +105°C
- Insulation Withstand Voltage: 2000VAC min
- Insulation Resistance: >2,000MΩ at 500VDC
- Material: PA66 (UL94-V0) insulating body
- Screws: Steel with Zinc Plating
- Dimensions: Pitch 10mm, Pole count 20, length approximately 97mm
Buy the Buy Multicomp Terminal Block Part Number MC001826 Online
Purchase the Multicomp MC001826 dual-row terminal block online to ensure reliable electrical connections in industrial applications. Designed with a 10mm pitch and 20 poles, it offers a current rating of 30A and voltage capacity of 600V. Suitable for wire ranges from 12AWG to 22AWG, it operates efficiently within a temperature range of -30°C to +105°C. Made of durable white PA66 with zinc-plated steel screws, it guarantees high insulation resistance and safe operation, ideal for control panels and wiring systems.
Get Multicomp MC001826 today—built for industrial wiring and long-lasting performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001826?
You can click on the BUY or RFQ button to purchase MC001826 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001826?
You can download the MC001826 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001826?
MULTICOMP-PRO
