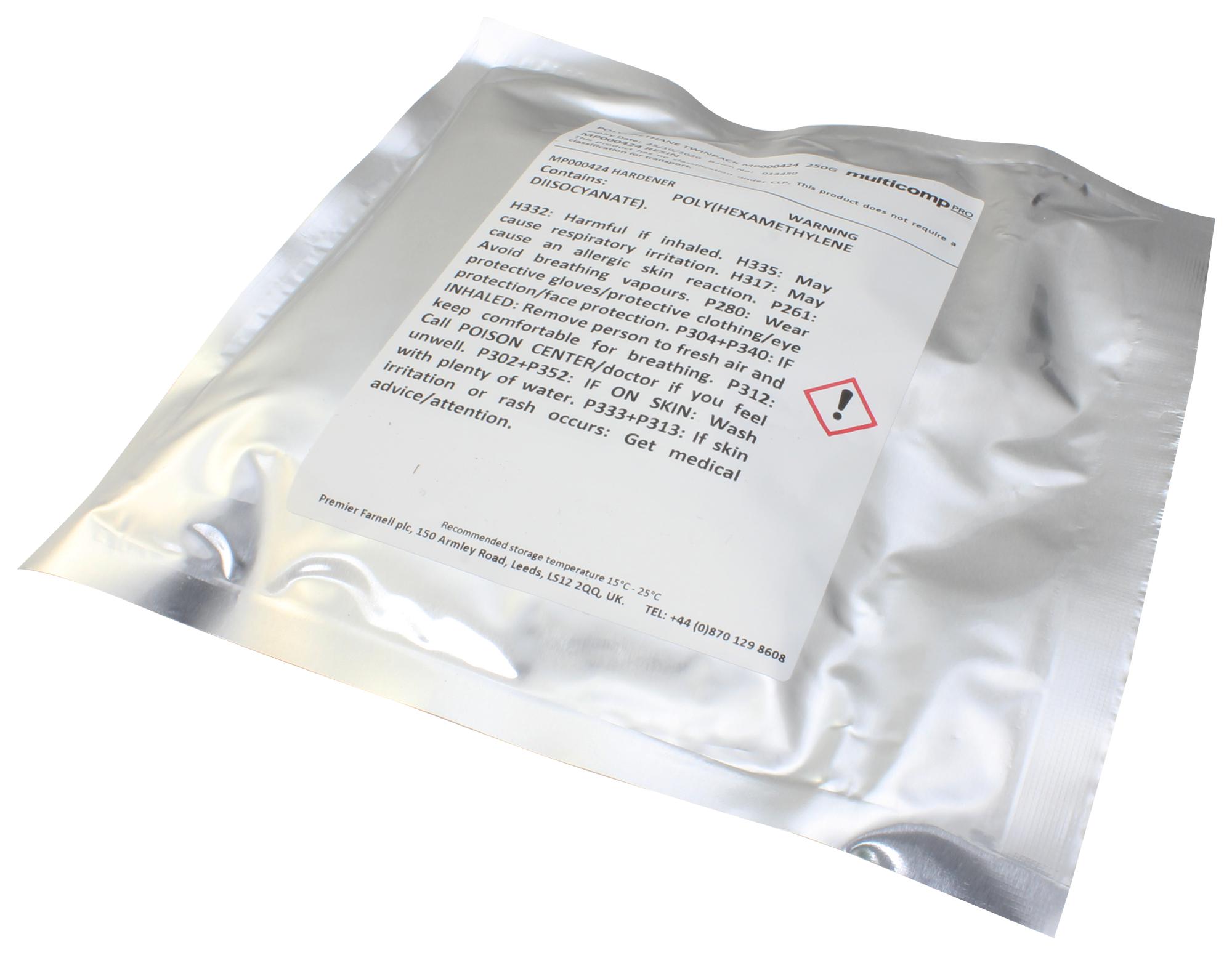

MULTICOMP PRO MP000432 Polyurethane Resin
The multicomp-Pro polyurethane composite is a low viscosity, fast-curing resin designed for potting, molding, and casting applications. It features high electrical insulating properties, does not contain halogens or heavy metals, and is RoHS compliant. This black twinpack resin system offers excellent mechanical and thermal characteristics, including 80 Shore D hardness, tensile strength of 40 MPa, and thermal conductivity of 0.8 W/m.K. Suitable for encapsulating electronics, it operates within -40 to +140°C, with a cure schedule involving RT, 40°C, and 60°C conditions for optimal performance.
MULTICOMP PRO MP000432 Polyurethane Resin Specifications:
- Peak Exotherm: 104°C
- Shrinkage: 0.5%
- Water absorption (24hrs @ 23°C): 0.12%
- Water absorption (168hrs @ 23°C): 0.37%
- Hardness: 80 Shore D
- Tensile Strength: 40 MPa
- Compressive Strength: 110 MPa
- Thermal Conductivity: 0.8 W/m.K
- Operating Temperature Range: -40°C to +140°C
- Short Term Exposure Limit: 180°C
- Volume Resistivity: 1.6 x 10^12 ohm.cm
- Surface Resistivity: 1.6 x 10^13 ohm
- Electric Strength: 19 kV/mm
- Dielectric Constant: 4.2 @ 100Hz
- Tg: -20°C
- Color: Black
- Specific Gravity: 1.56
- Viscosity @ 25°C: 8000 mPas
- Mix ratio by weight: 3.83:1
- Mix ratio by volume: 3.0:1
- Cure Schedule: RT 3 min, 16 hours at 150g, with options for faster curing at 40°C or 60°C
Buy the Buy Multicomp Polyurethane Composite Part Number MP000432 Online
Purchase the Multicomp Polyurethane Resin MP000432 online today to ensure your projects benefit from exceptional electrical insulation, quick curing, and durable mechanical properties. Its versatile formulation makes it ideal for potting, molding, and casting in electronics and engineering applications. With RoHS compliance and excellent chemical resistance, it offers reliable performance under demanding conditions. Order now to experience convenient online purchasing, fast delivery, and professional support to complete your encapsulation and molding tasks efficiently, without the need for physical store visits.
Order your Multicomp Polyurethane Composite MP000432 today and benefit from fast curing, superior insulation, and high mechanical strength for your encapsulation projects.
