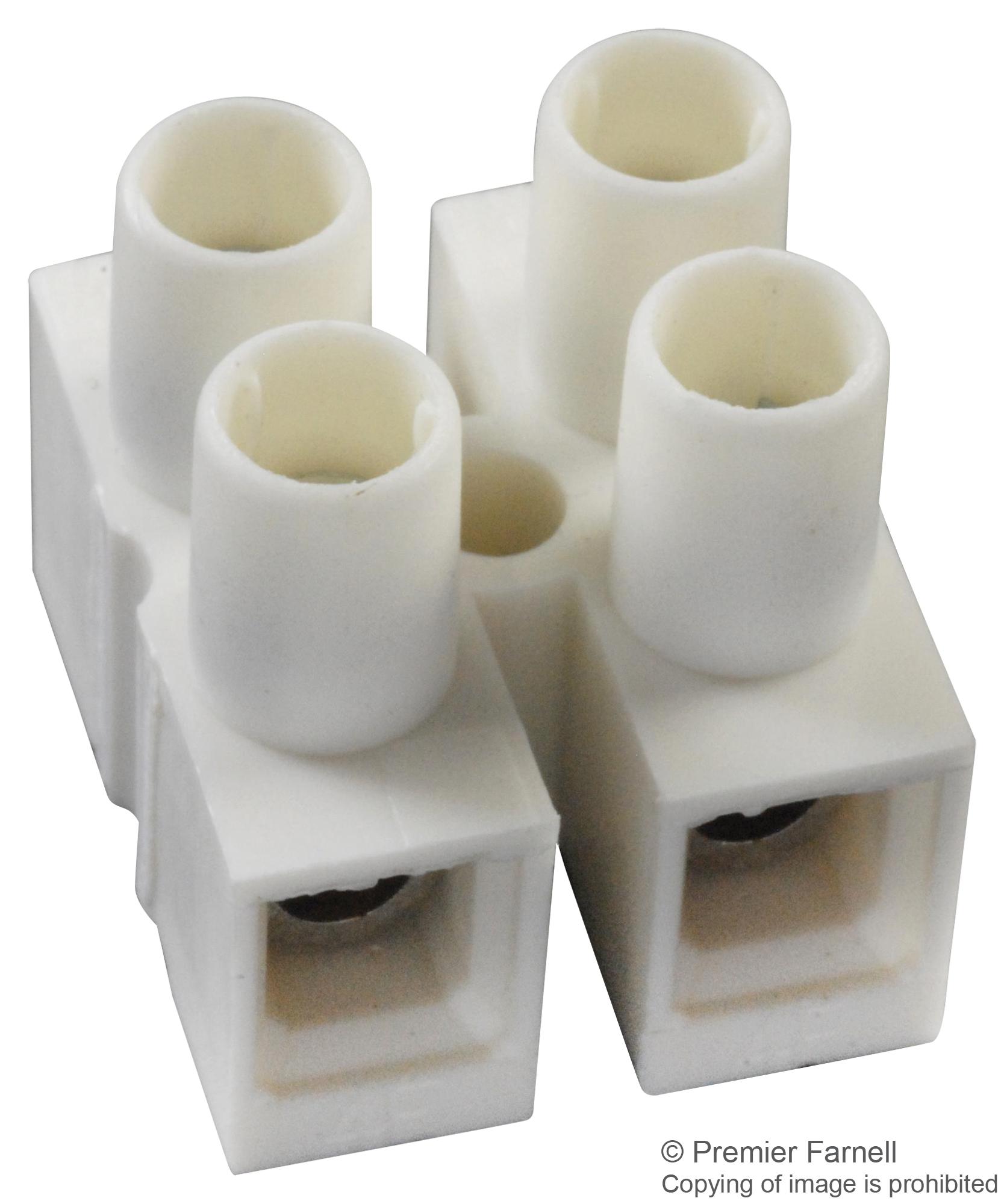

MULTICOMP PRO MC001827 Dual-Row Terminal Block
The MC001827 from Multicomp Pro is an H-type dual-row terminal block with a 10mm pitch and four poles. It is designed for wire sizes ranging from 10AWG to 22AWG and features a white PA66 (UL94-V2) insulation. The terminal block has a current rating of 30A and a voltage rating of 600V. The stripped wire length should be between 5.5mm and 6.5mm. It can operate continuously at temperatures up to 85°C, with an temperature range from -30°C to +85°C. The insulation withstand voltage is at least 2000VAC, and the insulation resistance exceeds 2000MΩ at 500VDC. Components include zinc-plated steel screws and brass cage clamps with nickel plating. Suitable for industrial applications, this product is rated 4.6 out of 5 stars by users and includes a 12-month limited warranty.
MULTICOMP PRO MC001827 Dual-Row Terminal Block Specifications:
- Current Rating: 30A
- Voltage Rating: 600V
- Wire Range: 10 AWG to 22 AWG
- Stripped Length: 5.5mm to 6.5mm
- Operating Temperature: -30°C to +85°C
- Maximum Continuous Temp: 85°C
- Insulation Withstands Voltage: AC2000V min
- Insulation Resistance: >2,000MΩ at DC500V
- Material: PA66 (UL94-V2) for insulating body, Zinc-plated steel screws, Brass cage clamps with nickel plating
- Dimensions: 16.5mm tall, 10mm wide (part MC001827)
Buy the Multicomp Series Dual-Row Terminal Block: MC001827
Order the Multicomp MC001827 dual-row terminal block online today and benefit from high current capacity, excellent insulation properties, and a robust design suitable for industrial wiring. With a current rating of 30A and voltage rating of 600V, this terminal block ensures secure connections for various electrical applications. Its compatibility with wire sizes from 10AWG to 22AWG makes it versatile, while the wire stripping length of 5.5mm to 6.5mm allows easy installation. Invest now for dependable, efficient electrical connections in your projects.
Buy Multicomp MC001827 now and experience unmatched reliability and industrial-grade performance for wiring projects.
