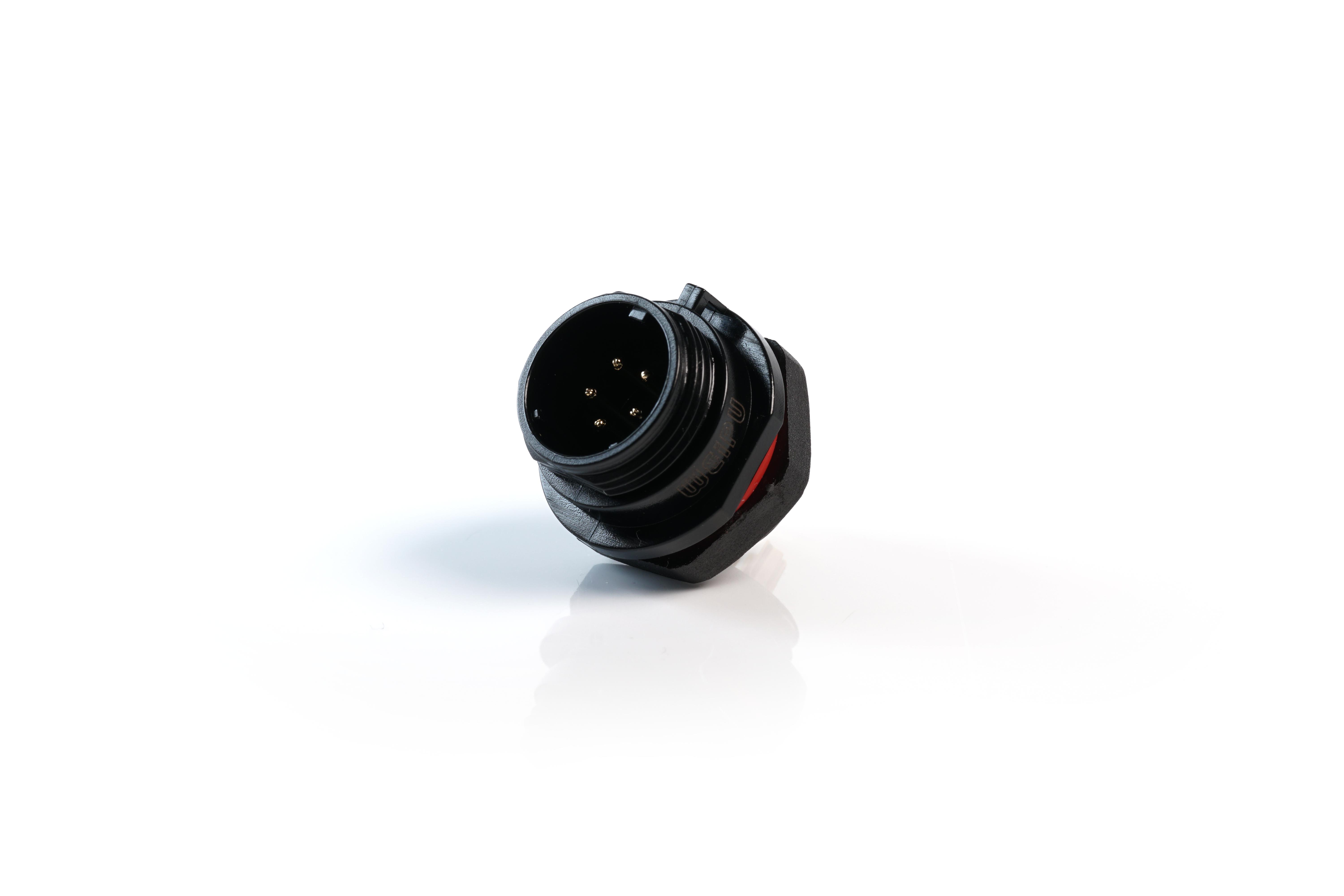

MULTICOMP-PRO MP002538 Industrial Connector
The MP-T13 IP68 series features rugged, weatherproof connectors with threaded couplings, designed for indoor and outdoor use. Available in panel mount, cable mount, and inline configurations, these connectors support various pole options from 2 to 7 contacts. Constructed with durable materials, they have a maximum operating temperature of 85°C, IP68 water and dust resistance, and solder termination for reliable connections. Suitability spans automation, industrial processes, security systems, and medical devices, providing secure, corrosion-resistant connections in harsh environments.
MULTICOMP-PRO MP002538 Industrial Connector Specifications:
- Shell Material: PC with V-0 fire resistance
- Contact Material: Brass with gold plating
- Termination: Solder
- Ingress Protection: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Rated Current: 13A (2P), 5A (3P, 4P, 5P, 7P)
- Rated Voltage: 250V (2P), 200V (4P), 180V (5P), 125V (7P)
- Contact Diameter: 1.6mm (2P), 1mm (3P, 4P, 5P, 7P)
- Cable Diameter Range: 4mm to 8mm
- Mating Cycles: 500
- Maximum Temperature: 85°C
- Dimensions: Compatible with 13mm panel cutout
- Connector Types: Panel mount, cable mount, inline cable mount
- Additional Accessories: Dust caps available
Buy the MultiComp IP68 Connector – Reliable Industrial Connectors for Automation
Discover the durable and reliable MultiComp IP68 industrial connectors, designed for seamless installation in harsh environments. Suitable for automation, security systems, medical devices, and more, these connectors feature threaded coupling for secure mating, solder termination for robust connections, and a waterproof IP68 rating to withstand dust and water exposure. Available in multiple configurations, including panel, cable, and inline mount options, with pole options from 2 to 7 contacts. Ensure reliable performance in demanding industrial and outdoor applications by ordering online today.
Order your MultiComp IP68 connector series today and ensure your projects have the dependable, water-resistant connectivity they require.
