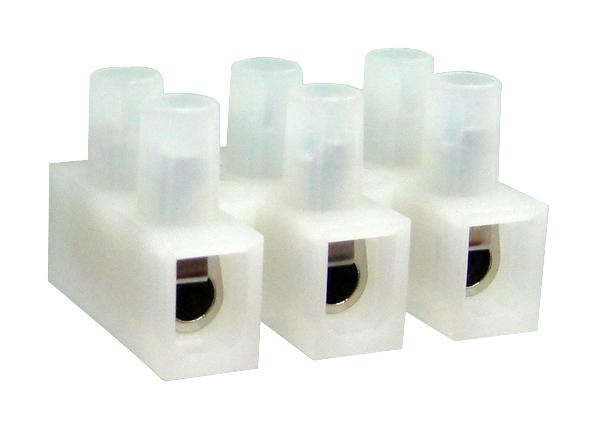

MULTICOMP-PRO MC001828 H Type Dual-Pole Terminal Block
The MC001828 from Multicomp Pro is a dual-row, H-type terminal block with a 10mm pitch and 6 poles. It supports wire sizes from 10 AWG to 22 AWG and has a current rating of 30A with a maximum voltage of 600V. The terminal accepts stripped wire lengths between 5.5mm and 6.5mm and can operate in temperatures from -30°C to +85°C. It has a minimum insulation withstand voltage of 2000VAC and offers an insulation resistance of over 2000 megaohms at 500VDC. The insulation is made of white PA66 (UL94-V2). The screw is steel with a zinc plating, and the cage clamp is brass with a nickel plating. Suitable for industrial applications, this product is rated highly by customers and comes with a 12-month limited warranty.
MULTICOMP-PRO MC001828 H Type Dual-Pole Terminal Block Specifications:
- Current Rating: 30A
- Voltage Rating: 600V
- Wire Range: 10 AWG to 22 AWG
- Stripped Length: 5.5mm to 6.5mm
- Maximum Operating Temperature: 85°C
- Operation Temperature Range: -30°C to +85°C
- Insulation Withstands Voltage: AC2000V min
- Insulation Resistance: >2,000 MΩ at DC500V
- Insulation Material: PA66 (UL94-V2)
- Screw Material: Steel Zinc Plate
- Cage Clamp Material: Brass Ni Plate
- Pitch: 10mm
- Poles: 6
- Product Dimensions: 26.5mm (B) x 20mm (A)
Buy the Multicomp 2001828 – Reliable Industrial Terminal Block for Electrical Connections
Enhance your electrical assemblies with the Multicomp Pro H Type Dual-Pole Terminal Block, supporting 30A and 600V for industrial control panels. With a 10mm pitch, it securely connects wires ranging from 10 to 22 AWG and withstands temperatures from -30°C to +85°C. Its robust insulation resists AC2000V, ensuring safety and durability. The zinc-plated steel screw and brass cage clamp provide excellent conductivity and mechanical strength. Ideal for automation, manufacturing, and electrical distribution, this terminal block is essential for reliable and secure wiring in demanding industrial environments, with a 12-month warranty for peace of mind.
Buy Multicomp 2001828 now and experience unmatched reliability and performance for industrial wiring and control systems.
