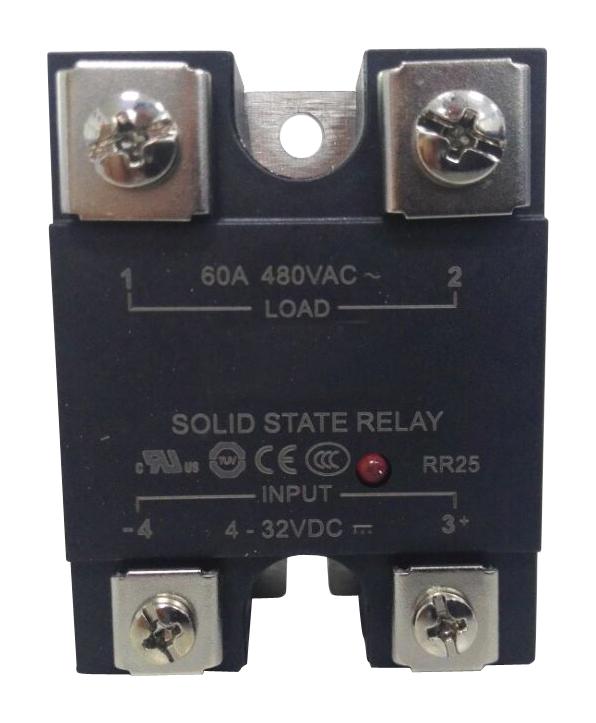

MULTICOMP-PRO MC002317 Solid State Relay
This panel mount solid state relay is designed for single-phase AC loads, suitable for resistive, inductive, or capacitive loads with load voltages up to 600V AC. It features zero crossing or random-on operation, load currents from 10A to 125A, and control voltages of 4-32V DC or 90-280V AC. The relay includes built-in MOV or TVS options for transient suppression, a dielectric strength of 24,000V ACrms, LED indicators, and robust insulation and voltage ratings, making it ideal for industrial automation, HVAC, and machinery controls.
MULTICOMP-PRO MC002317 Solid State Relay Specifications:
- Load Current: 10A to 125A
- Load Voltage Range: 240V AC to 600V AC
- Control Voltage: 4-32V DC or 90-280V AC
- Dielectric Strength: 24,000V ACrms
- Surge Current: Up to 1250A at 10ms
- Maximum Off-state Leakage Current: 5mA at rated voltage
- Transient Overvoltage: 600V AC to 1600V pk
- Operating Temperature Range: -30°C to +80°C
- Weight: 96g (standard version), options up to 180g
- Protection Features: Built-in MOV or TVS options
- Input/Output Isolation: 2500Vrms
- Dimensions: W=9.5mm, Output Max W=12mm, Max Torque 1.5N-m
Buy the Multicomp Pro Series Solid State Relay MC002317
Discover the durability and efficiency of the Multicomp Pro solid state relay, designed for single-phase AC loads up to 600V. Ideal for automation, HVAC, and machinery, it features zero crossing or random-on operation, high surge current capacity, built-in transient suppression, and robust insulation. Its compact design ensures easy installation, with control voltages from 4-32V DC or 90-280V AC. Reliable and high-performance, this relay is perfect for enhancing your industrial control systems. Purchase online today for fast, secure delivery and exceptional quality.
Order your Multicomp Pro series 600V AC solid state relay today and ensure dependable, efficient control in your industrial automation projects.
