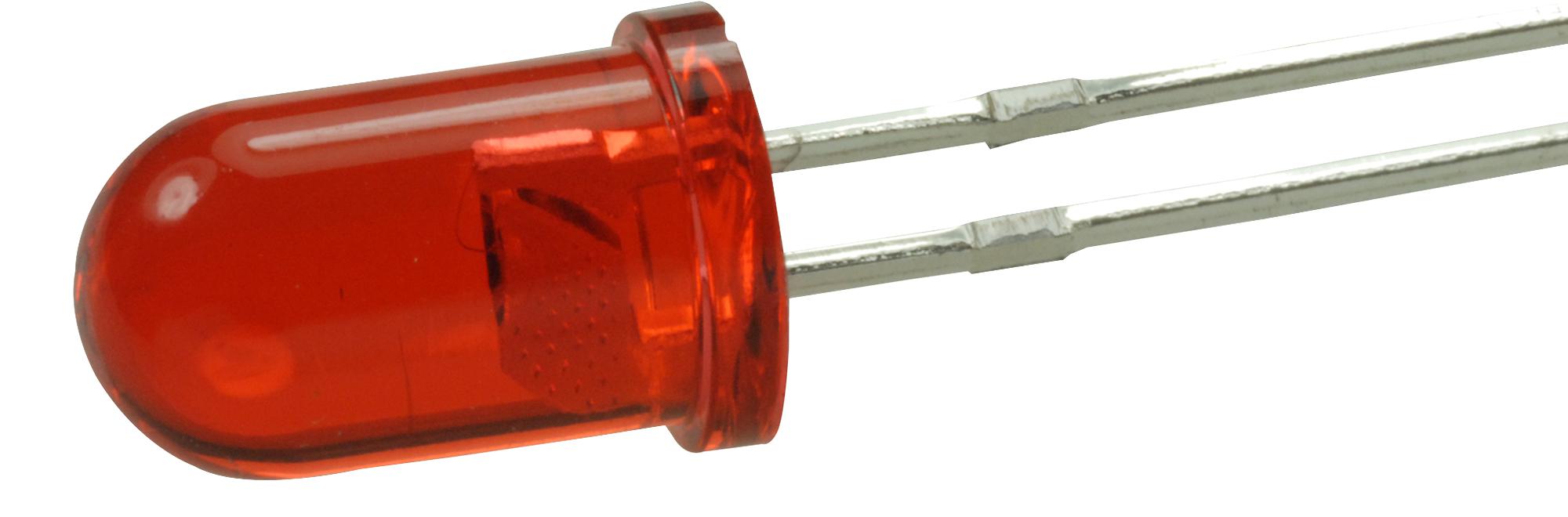

MULTICOMP-PRO MCL053PT Red LED
The MCL053PT from Multicomp Pro is a reliable 5mm red LED constructed from GaP material, emitting at a peak wavelength of 697 nm with a 16° viewing angle. Its red transparent lens enhances visibility for industrial, portable, and electronic applications. Operating within -40°C to 85°C ambient temperature, it supports a maximum forward current of 50mA with a typical luminous intensity of 10mcd, a forward voltage of 2.1V at 20mA, and a spectral line half-width of 90nm. This RoHS-compliant LED features a lead soldering temperature of 260°C for 5 seconds, ensuring durability and consistent optical performance.
MULTICOMP-PRO MCL053PT Red LED Specifications:
- Dice material: GaP
- Emitted colour: Red
- Peak wavelength: 697 nm
- Viewing angle: 16°
- Luminous intensity: 10 mcd
- Forward voltage: 2.1 V at 20 mA
- Power dissipation: 45 mW
- Reverse voltage: 5 V
- Reverse current: 10 µA
- Operating temperature: -40°C to 85°C
- Storage temperature: -40°C to 100°C
- Lead soldering temperature: 260°C for 5 seconds
- Spectral line half-width: 90 nm
- RoHS compliant
Buy the Multicomp Pro MCL053PT – Reliable Red LED for Industrial Applications
Enhance your electronics with the high-quality Multicomp Pro red LED. Built from durable GaP material, it features a 697 nm wavelength, 16° viewing angle, and supports reliable performance across a wide temperature range. Perfect for industrial, portable, and consumer applications, this RoHS-compliant LED ensures consistent brightness with a luminous intensity of 10mcd and a forward voltage of 2.1V at 20mA. Soldering is simple with a maximum temperature of 260°C for 5 seconds, making installation efficient and dependable.
Buy Multicomp Pro MCL053PT now and experience unmatched reliability and bright red illumination for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL053PT?
You can click on the BUY or RFQ button to purchase MCL053PT from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL053PT?
You can download the MCL053PT datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL053PT?
MULTICOMP-PRO
