MULTICOMP-PRO MC001917 SMA RF Connector

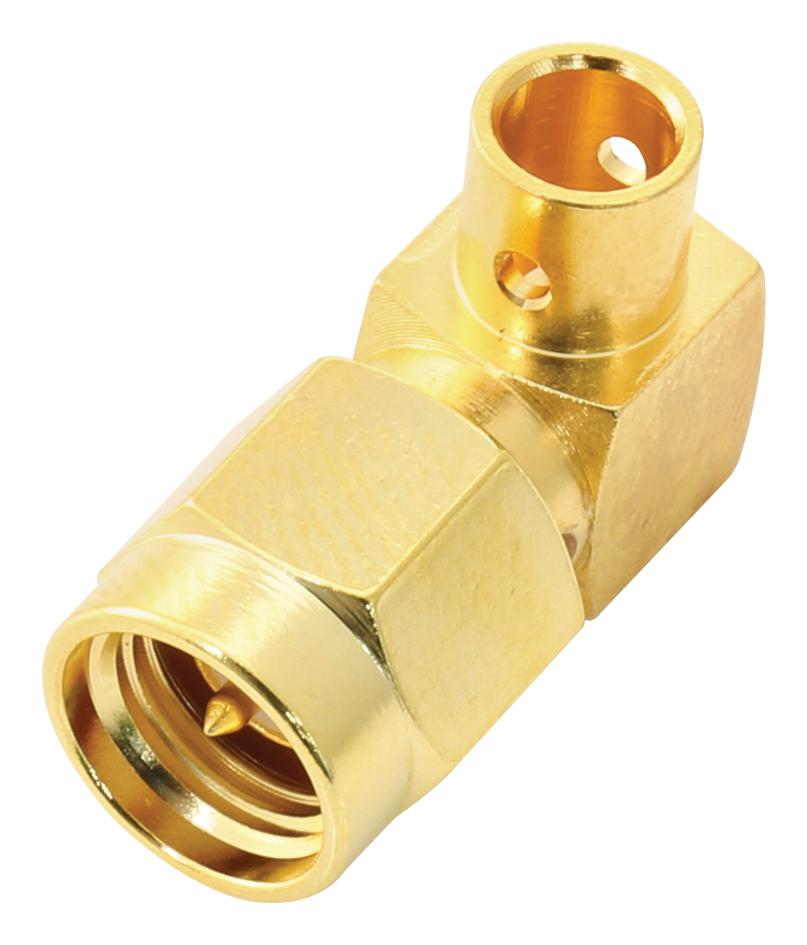

The SMA RF/Coaxial Connector multicomperc is a high-frequency, right-angle plug designed for reliable signal transmission in industrial and communication applications. Made with high-quality brass and gold plating, it features a PTFE insulator for excellent dielectric performance. Operating from DC up to 12.4 GHz, it provides minimal insertion loss of 0.0100 dB at specified frequencies, ensuring optimal RF performance. The connector supports up to 35 Veff maximum voltage rating and features precise dimensions for seamless integration into RF systems, ideal for robust and efficient signal connectivity.
MULTICOMP-PRO MC001917 SMA RF Connector Specifications:
- Impedance: 50 Ohms
- Frequency Range: DC to 12.4 GHz
- VSWR: 1 + 0.0100 x F (GHz)
- Insertion Loss: 0.05 dB at specified frequencies
- RF Leakage: Not specified
- Voltage Rating: 35 Veff Max
- Dielectric Withstanding Voltage: 50 Veff Min
- Insulation Resistance: 100 MΩ Min
- Materials: Brass for body and centre contact, PTFE insulator
- Plating: Gold for all contact surfaces and body
- Dimensions: Refer to diagram in datasheet for detailed measurements
Buy the Multicomperc SMA RF/Coaxial Connector – Reliable High-Frequency Connector for Industrial Applications
Enhance your RF and communication systems with the SMA RF/Coaxial Connector. This right-angle, gold-plated brass connector offers excellent durability, low insertion loss, and high-frequency performance up to 12.4 GHz. Perfect for industrial, telecom, and test equipment applications, it ensures stable, low-loss signal transmission in demanding environments. Easy to install with precise dimensions, it supports a maximum voltage of 35 Veff and features a PTFE insulator for optimal dielectric stability. Improve your system reliability with this high-quality connector today.
Buy Multicomperc SMA RF/Coaxial Connector now and experience unmatched reliability, excellent RF performance up to 12.4 GHz, with durable gold-plated brass construction ideal for industrial and communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001917?
You can click on the BUY or RFQ button to purchase MC001917 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001917?
You can download the MC001917 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001917?
MULTICOMP-PRO
