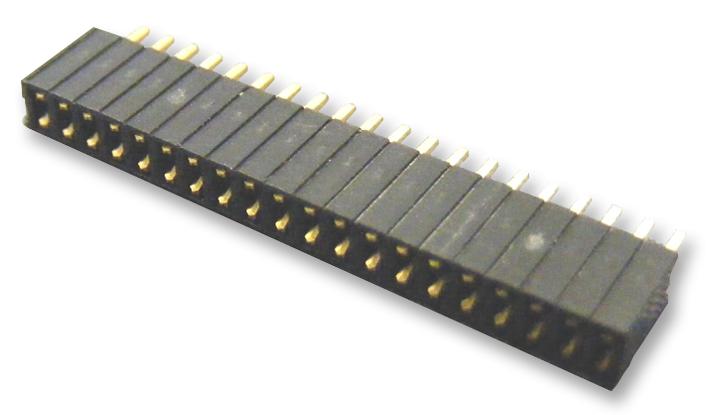

MULTICOMP PRO 2206SA2546 PCB Receptacle 1 Row
The MULTICOMP PRO 2206SA-25-46 is a through-hole mount PCB receptacle, ideal for applications requiring a robust and reliable connection. Constructed with a high-temperature plastic insulator and gold-plated brass contacts, this receptacle offers excellent electrical performance and durability. It is suitable for a wide range of electronic devices and industrial applications where secure and dependable connectivity is essential.
MULTICOMP PRO 2206SA2546 PCB Receptacle 1 Row Specifications:
- Current Rating: 1A AC / DC
- Voltage Rating: 50V AC / DC
- Max. Contact Resistance: 20mΩ
- Min. Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator: High temperature plastic
- Insulator Colour: Black
- Contact: Brass Plated
- Plating: Gold plated
- A Dimension: 31.75mm
- B Dimension: 25.4mm
