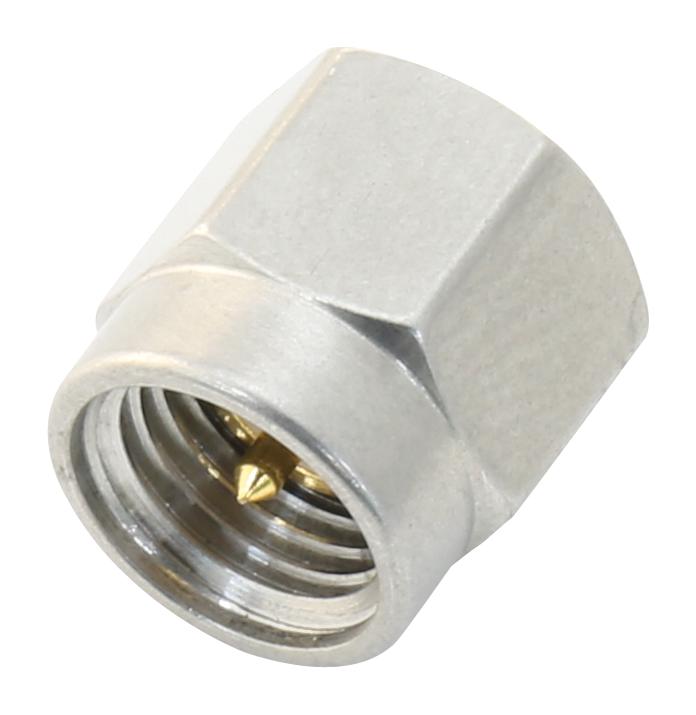

MULTICOMP PRO MC001918 SMA Coaxial Connector
This SMA RF/Coaxial Connector is a durable, high-frequency straight plug with a stainless steel body designed for reliable connections in RF and coaxial applications. It operates efficiently from DC to 18 GHz, offering low VSWR and power handling of up to 100W, making it ideal for communication, test, and measurement systems. The connector features a gold-plated brass center contact for excellent conductivity, a PTFE insulator for stable performance, and a passivated steel body for durability. Its compact dimensions ensure easy installation in tight spaces, delivering consistent performance at high frequencies.
MULTICOMP PRO MC001918 SMA Coaxial Connector Specifications:
- Impedance: 50 Ω
- Frequency Range: DC to 18 GHz
- VSWR: 1.1 at DC-8GHz, 1.15 at 8-12.4GHz, 1.2 at 12.4-18GHz
- DC Resistance: Low, specific values not provided
- Peak Power: 100 W at 25°C for 1 second
- Average Power: 1 W at 25°C (free air cooled)
- Centre Contact Material: Brass, Gold-plated
- Body Material: Steel, Passivated
- Insulator Material: PTFE
- Gasket Material: Rubber
- Nut Material: Steel, Gold-plated
- Dimensions: Millimetres, specific dimensions vary
- Connector Type: Straight plug
- Connector Series: SMA
- Frequency Bands: DC-8 GHz, 8-12.4 GHz, 12.4-18 GHz
- Power Handling: 100 W
Buy the Multicomp Series SMA Coaxial Connector: MC001918
Enhance your RF and microwave systems with the high-quality SMA coaxial connector designed for frequencies up to 18 GHz. Featuring a durable stainless steel body, gold-plated brass contacts, and PTFE insulators, this connector ensures excellent signal integrity and low VSWR. Perfect for communications, testing, and measurement applications, it handles up to 100 W power. Easy to install and built for reliability, purchase the SMA coaxial connector online today to improve your system performance with confidence and efficiency.
Order your Multicomp Series SMA Coaxial Connector MC001918 today and ensure reliable high-frequency connections for your RF and microwave projects.
