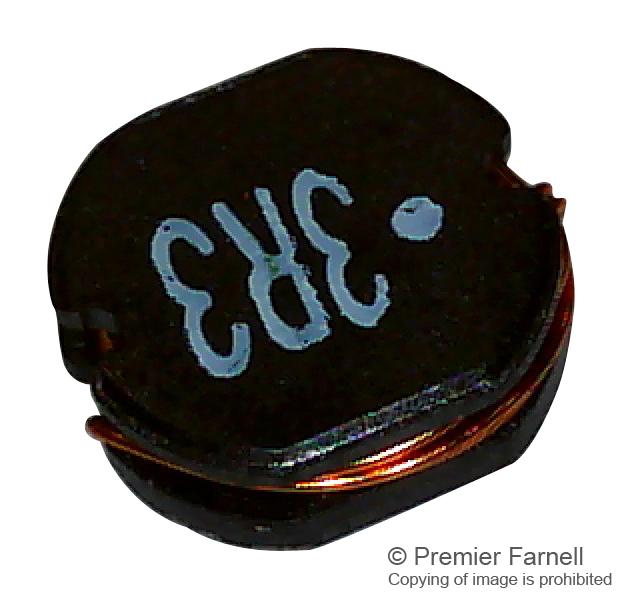

MULTICOMP PRO MCSD105100MU Power Inductor
This high-performance surface-mount inductor features a 10H inductance with ±20% tolerance, designed for use in power supplies and filtering applications. Constructed with ferrite core material, it offers a maximum DC resistance of 0.060Ω and a rated current of 2.6A. With compact dimensions of 10.2mm width, 5.4mm length, and 9mm depth, it operates within a temperature range of -55°C to +130°C. Suitable for electronic circuits requiring stable inductance at high frequencies, it ensures durability and efficiency in various industrial and consumer electronics.
MULTICOMP PRO MCSD105100MU Power Inductor Specifications:
- Inductance: 10H ±20%
- Inductance Tolerance: 120%
- DC Resistance Max: 0.060Ω
- DC Current Rating: 2.6A
- Core Material: Ferrite
- External Dimensions: Length 5.4mm, Width 10.2mm, Depth 9mm
- Pins: 2, Lead Spacing: 3.5mm
- Resonant Frequency: 100kHz
- Series: MCSD105
- Operating Temperature: -55°C to +130°C
- RoHS Compliant
- SMD Case Style
- Material: Sn99.3%/Cu0.7% solder, wire @0.45mm
- No. of Pins: 2
- External Height: 5.4mm
Buy the Buy Multicomp inductor Part Number MCSD105100MU Online
Purchase the Multicomp Power Inductor MCSD105100MU today from our online store. This compact SMD component features 10H inductance with a 2.6A current rating, ideal for power supplies and filtering applications. Its ferrite core ensures high stability and minimal resistance, with RoHS compliance for environmentally friendly use. The inductor operates across a wide temperature range of -55°C to +130°C, offering durability and consistent performance. Perfect for industrial, commercial, and consumer electronic projects requiring reliable inductance and high-frequency stability.
Get Multicomp inductor MCSD105100MU today—designed for high efficiency and reliable power filtering in electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSD105100MU?
You can click on the BUY or RFQ button to purchase MCSD105100MU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSD105100MU?
You can download the MCSD105100MU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSD105100MU?
MULTICOMP PRO
