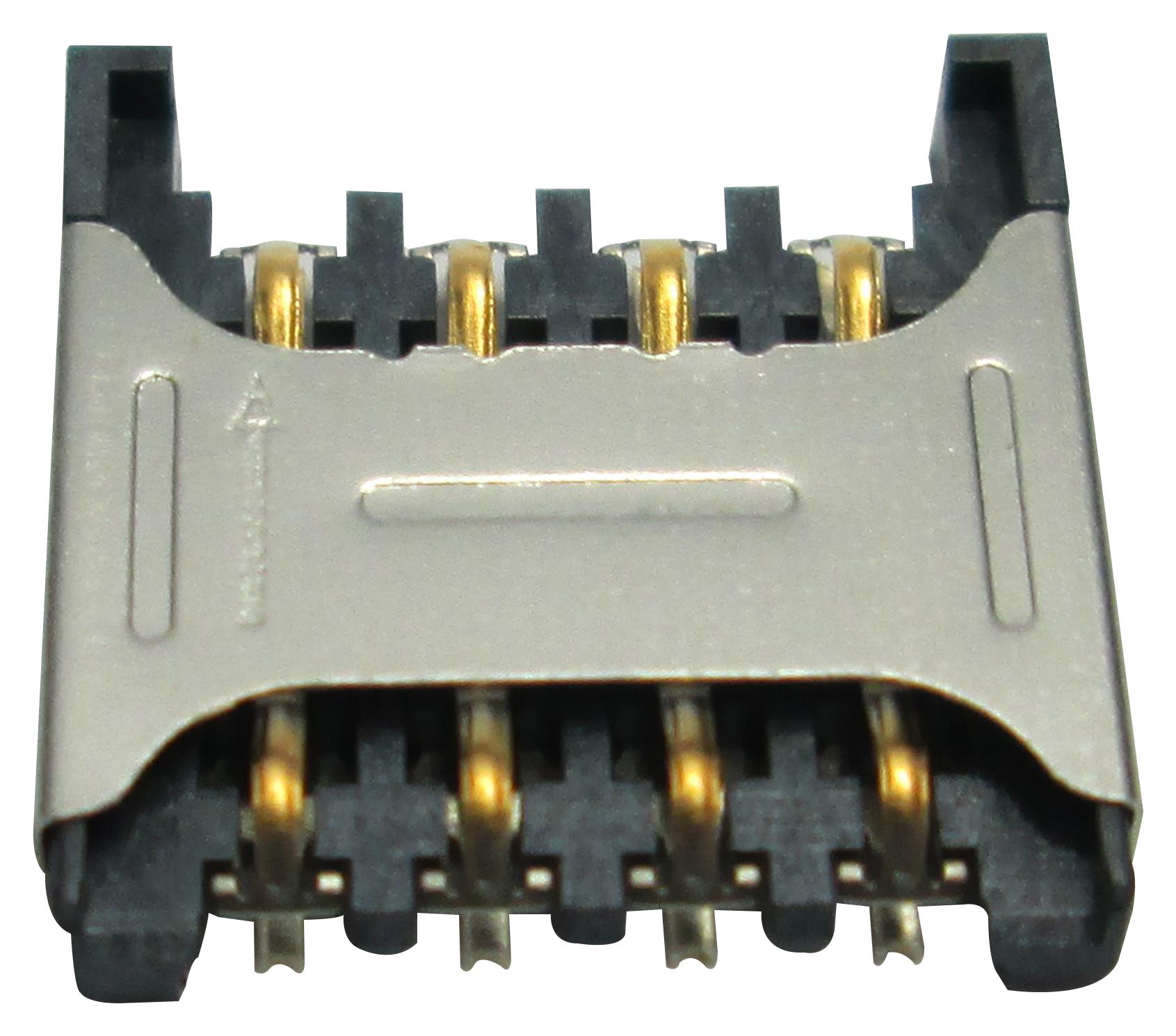

MULTICOMP PRO MC002012 SIM Card Connector
This SIM card connector is designed for reliable mobile device applications, supporting 0.5A current rating and operating within -25°C to +85°C temperature range. Made from high-temperature plastic with phosphor bronze contacts, gold-plated for superior corrosion resistance. It features a compact SMT form factor, 8-pin configuration, and is RoHS compliant. Rated for 500V AC insulation withstand for one minute and with very low contact resistance (30mΩ max), ensuring safe, durable, and efficient connectivity in compact electronic devices.
MULTICOMP PRO MC002012 SIM Card Connector Specifications:
- Current Rating: 0.5 Amp
- Dielectric Withstanding Voltage: 500V AC for 1 minute
- Contact Resistance: 30mΩ max
- Insulation Resistance: 1000MΩ min at DC 500V
- Operation Temperature: -25°C to +85°C
- Housing Material: High-temperature plastic, black
- Terminal Material: Phosphor bronze, gold-plated
- Shell Material: Stainless steel, gold-plated in SMT area
- Number of Pins: 8
- RoHS Compliant
- Dimensions: approximately 7.46mm x 7.62mm
- Mounting Type: Surface Mount (SMT)
Buy the Buy multicomp SIM Card Connector Part Number MC002012 Online
Enhance your electronic device with this reliable SIM card connector, supporting high-temperature operation and providing durable, corrosion-resistant connection. Compact design makes it suitable for space-constrained applications, ensuring stable data transfer. Easy to mount with high-quality materials ensuring longevity. Ideal for mobile devices, IoT gadgets, and communication equipment, this connector is RoHS compliant, rated for 0.5A current, and withstands voltage up to 500V AC for one minute. Buy online today for dependable performance.
Buy multicomp SIM Card Connector MC002012 now and experience reliable mobile connectivity with high durability and compact design.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002012?
You can click on the BUY or RFQ button to purchase MC002012 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002012?
You can download the MC002012 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002012?
MULTICOMP PRO
