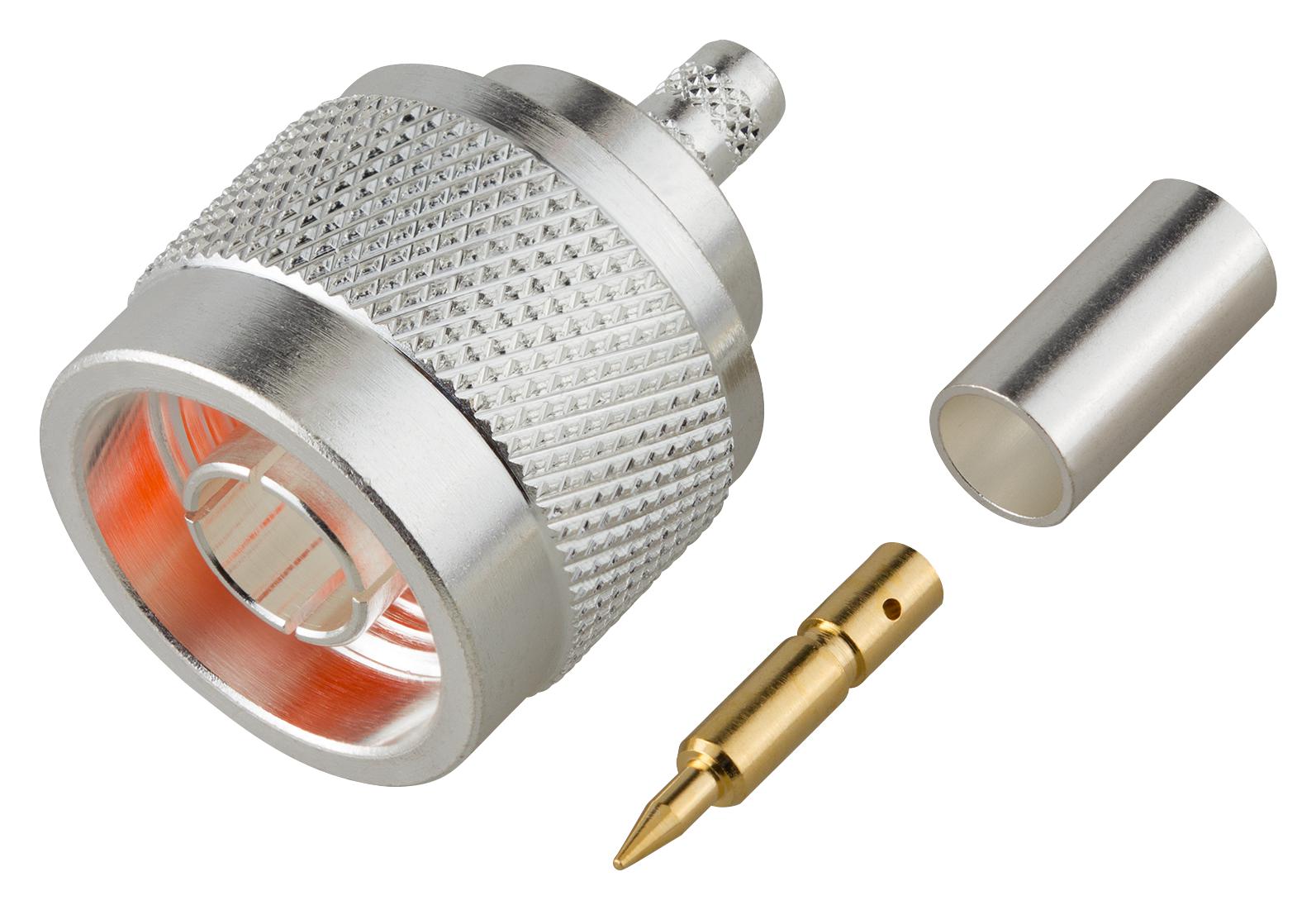

MULTICOMP PRO MC002026 N Male Crimp Connector
This is a high-quality N Male Crimp connector designed for RG-58 and similar coaxial cables, offering excellent electrical performance in professional applications. It features a brass shell with a silver finish, PTFE insulator, and a grounding brass ring, ensuring durability and reliable connection. Operating within temperature ranges from -65°C to +165°C and handling work voltage up to 1kVrms, this connector maintains low insertion loss of 0.06dB GHz and impedance of 50Ω. Suitable for RF, telecommunications, and industrial equipment, it guarantees RoHS compliance and long-lasting performance.
MULTICOMP PRO MC002026 N Male Crimp Connector Specifications:
- Impedance: 50Ω
- Frequency Range: 10-11 GHz
- VSWR: 1.3 Max. @ 9 GHz
- Insertion Loss: 0.06dB Max. x f(GHz)
- Working Voltage: 1kVrms @ sea level
- Operating Temperature: -65°C to +165°C
- Insulation Resistance: 5kΩ min.
- Shell Material: Brass, Silver finish
- Body Material: Brass, Silver finish
- Insulator Material: PTFE
- Ground Ring Material: Brass, Silver finish
- Pin Material: Brass, Gold-plated
- Ferrule Material: Brass, Silver finish
- Dimensions: Shell diameter approximately 0.80 inches (20 mm), pin length 3 inches (76 mm)
- Connector Type: N Male Crimp
- Compatible Cables: RG-58, RG-58A, RG-58C, RG-141, RG-141A, Belden 8240, 8259, 8262, 9201, 9203, 9310, 9311, Comm/Scope 0268
Buy the Buy Premier Farell N Male Crimp Part Number MC002026 Online
Enhance your RF and coaxial cable connections with this high-grade N Male Crimp connector designed for RG-58 and similar cables. Made from durable brass with a silver finish, it ensures long-lasting performance and reliable signal transmission. Designed with a PTFE insulator and a brass ground ring, it supports frequency ranges up to 11 GHz and maintains low VSWR and insertion loss for optimal efficiency. Easy to install and RoHS compliant, this connector is ideal for telecommunications and industrial applications, offering excellent electrical characteristics. Purchase online today for dependable connectivity.
Buy Premier Farell MC002026 N Male Crimp connector now and experience unmatched reliability and performance for professional RF connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002026?
You can click on the BUY or RFQ button to purchase MC002026 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002026?
You can download the MC002026 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002026?
MULTICOMP PRO
