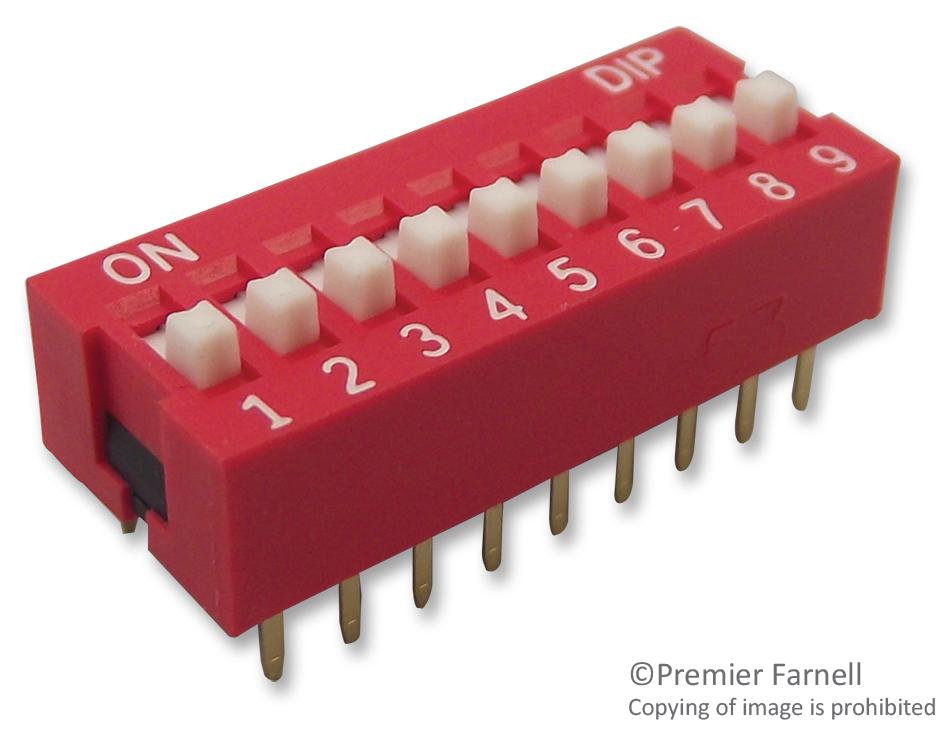

MULTICOMP-PRO MCNDS09V slide type dip switch
This multifunctional slide type DIP switch features a 9-position, SPST-NO configuration with a raised red actuator, designed for industrial controls, computer peripherals, and diverse function controls. Constructed from high-quality thermoplastic PBT UL 94V-0, it ensures durability and safety under various operating conditions. The switch features gold-plated copper contacts, brass terminals, and a black PA66 base for enhanced performance. It supports a current rating of 100mA at 50V DC for non-switching and 25mA at 24V DC for switching, with a contact resistance of max 50mΩ and insulation resistance of min 100MΩ. Operating temperature ranges from -40°C to +85°C.
MULTICOMP-PRO MCNDS09V slide type dip switch Specifications:
- Material: Thermoplastic PBT UL 94V-0
- Contact Material: Copper Alloy, Gold Plated
- Terminal Material: Brass, Gold Plated
- Base Material: Thermoplastic PA66 UL 94V-0
- Current Rating: Non-Switching 100mA, 50V DC; Switching 25mA, 24V DC
- Contact Resistance: Max 50mΩ
- Insulation Resistance: Min 100MΩ
- Dielectric Strength: 500V AC/1 minute
- Operating Force: Max 1000gf
- Travel: 2mm
- Operating Temperature: -40°C to +85°C
- Soldering Temperature: Max 350°C for Max 5 seconds
- Vibration Resistance: 10-55-10 Hz, 1 min/cycle for 2 hours in each of three directions
- Shock Resistance: 50G, 11+1ms for 6 sides, 3 cycles
- Durability: 2000 cycles
- Shelf Life: 6 months
Buy the Multicomp Series Slide Type DIP Switch: MCNDS-09V
Order the Multicomp MCNDS-09V slide type DIP switch online today to enjoy fast delivery, competitive pricing, and the high quality performance you need for your industrial control and electronic projects. This 9-position, SPST-NO switch with a red actuator is designed to provide reliable switching performance, easy manual operation, and excellent durability. Its robust thermoplastic housing and gold-plated contacts ensure long-lasting service. Perfect for computer peripherals, control panels, and automation systems, this switch offers a dependable solution for various technical applications. Secure yours online now for quick access to this essential component.
Buy Multicomp MCNDS-09V now and experience unmatched reliability and performance with durable construction and versatile industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCNDS09V?
You can click on the BUY or RFQ button to purchase MCNDS09V from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDS09V?
You can download the MCNDS09V datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCNDS09V?
MULTICOMP-PRO
