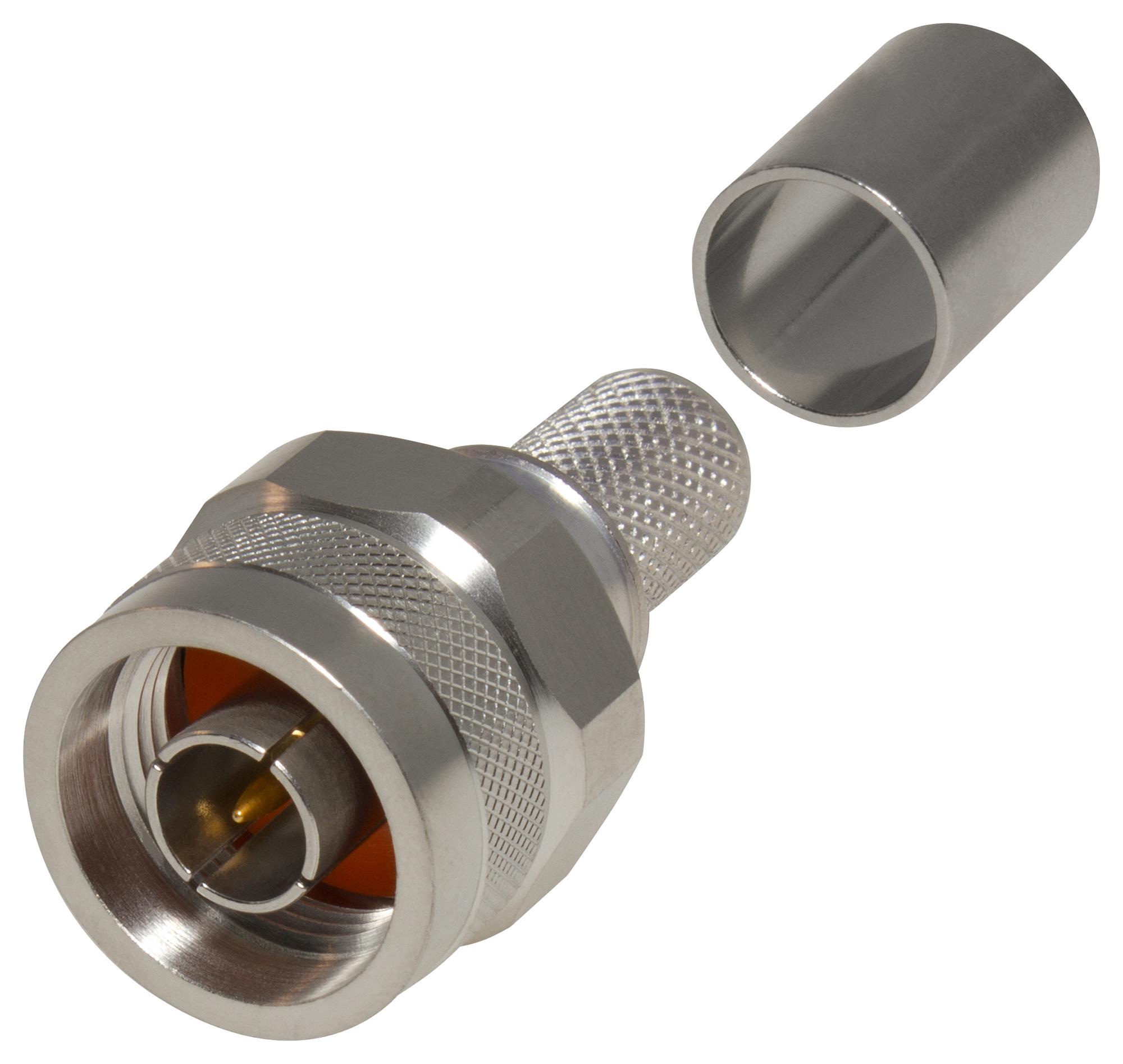

MULTICOMP-PRO MC002029 RF N Male Crimp Connector
This high-quality N Male Crimp Hex Nut connector from Multicomp is designed for RF applications with excellent impedance matching of 2500 and a frequency range of 10-11 GHz. It features robust brass construction with a white bronze finish, PTFE insulators for durability, and is compatible with popular cables like LMR-400, Belden 8214, and 9913. The connector supports a maximum working voltage of 1k Vrms at sea level, with minimal insertion loss of 0.06 dB. Suitable for various RF systems requiring reliable, RoHS-compliant connectors.
MULTICOMP-PRO MC002029 RF N Male Crimp Connector Specifications:
- Impedance: 2500
- Frequency Range: 10-11 GHz
- Vswr: <1.10:1 up to 3 GHz, <1.2:1 from 3 GHz through 8 GHz
- Working Voltage: 1k Vrms Max. at Sea Level
- Insulation Resistance: 5kMQ Min.
- Temperature Range: 1-65°C to +165°C
- Insertion Loss: 0.06 dB Max. at specified frequency
- Material - Body: Brass with White Bronze Finish
- Pin Material: Phosphor Bronze, Gold Finish
- Insulators: PTFE
- Grounding Ring: Brass White Bronze
- Retaining Ring: Brass White Bronze
- Ferrule: Brass
- Supports cables like LMR-400, Commscope CNT-400, Belden 8214 & 9913
- Dimensions: No. 1 Body: Brass, No. 2 Pin: Phos. Bronze, No. 3 & 4 Insulators: PTFE
Buy the Multicomp Series RF Connector: MC002029
Purchase your Multicomp RF N Male Crimp Hex Nut connector online today and enjoy fast, secure delivery. Designed for high-frequency RF applications, it features durable brass construction, PTFE insulators, and supports cable types like LMR-400 and Belden 9913. With a frequency range of 10-11 GHz, impedance of 2500, and minimal insertion loss, this connector is perfect for professional RF systems. Get reliable, RoHS-compliant performance and confidence in your connections by ordering now online.
Order your Multicomp Series RF N Male Crimp Hex Nut connector today and ensure reliable high-frequency connections for your RF projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002029?
You can click on the BUY or RFQ button to purchase MC002029 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002029?
You can download the MC002029 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002029?
MULTICOMP-PRO
