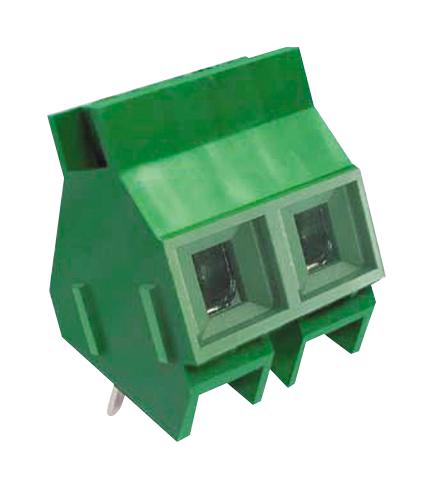

MULTICOMP PRO MC002069 PCB Terminal Block
The PCB terminal block by Multicomp Pro features modular design with a 9.52mm pitch, suitable for PCB mounting and industrial automation. It supports a maximum load current of 25A and operates within a temperature range of -40°C to +105°C. Constructed with PA66 housing and steel, Ni-plated cage clamps, it offers reliable electrical contact with brass, tin-plated contacts. The terminal accommodates wire sizes from 10AWG to 24AWG, with a wire strip length of 8mm. Equipped with M3.0 zinc-plated steel screw threads, it ensures secure connections in various electrical applications.
MULTICOMP PRO MC002069 PCB Terminal Block Specifications:
- Connection in accordance with standard EN-VDE
- Nominal Current IN: 25Amp
- Maximum load current: 125A
- Insulating Material: PA66
- Dimensions: 9.52mm pitch, 8mm wire strip length, PCB hole diameter 1.7mm
- Poles: 2 or 3
- Housing Material: PA66
- Cage Clamp: Steel, Ni Plated
- Contact: Brass, Tin Plated
- Screw Thread: M3.0, Steel, Zinc Plated
- Wire Size: 10AWG to 24AWG
- Tightening Torque: Not specified
- Operating Temperature: -40°C to +105°C
Buy the Buy Multicomp Pro PCB Terminal Block Part Number MC002069 Online
Discover the high-quality manufacturing and reliable performance of the Multicomp Pro PCB terminal block. Designed with a 9.52mm pitch, it supports up to 25A current and accommodates wire sizes from 10 to 24 AWG. Crafted from durable PA66 with steel and brass contacts, it provides secure, long-lasting connections in industrial applications. Easy to install with M3.0 zinc-plated steel screws, this terminal ensures stable electrical contact within a temperature range of -40°C to +105°C. Buy online now for quick delivery and dependable performance.
Order your Multicomp Pro series MC002069 PCB terminal block today and ensure reliable, secure electrical connections for your PCB assembly projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002069?
You can click on the BUY or RFQ button to purchase MC002069 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002069?
You can download the MC002069 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002069?
MULTICOMP PRO
