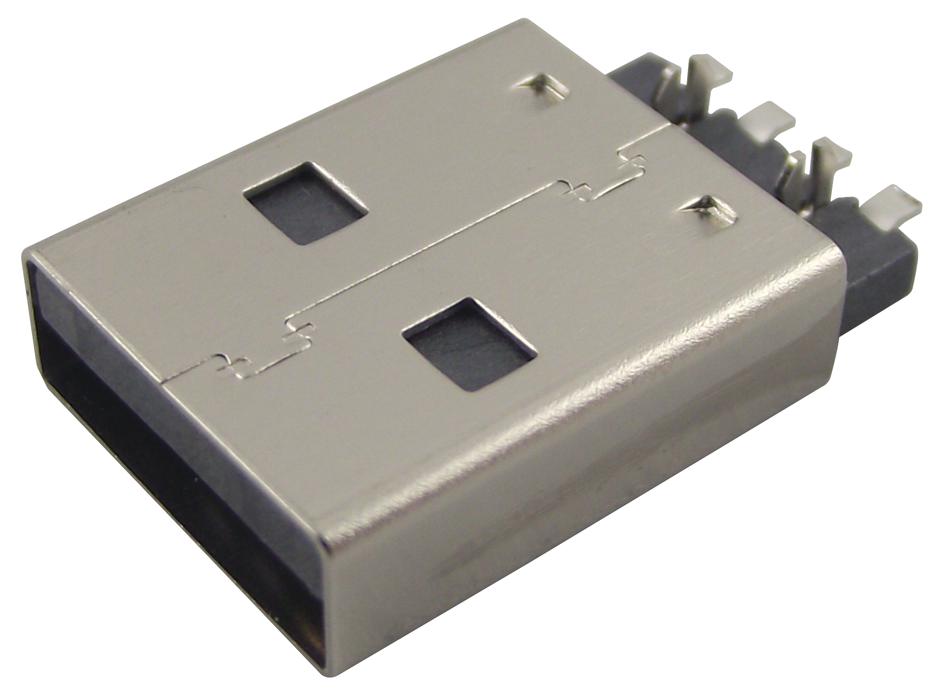

MULTICOMP PRO MC32604 USB Connector
The MC32604 is a right angle USB Type-A connector with gold-plated brass contacts, supporting USB 2.0 specifications. It features a high-temperature LCP insulator, is designed with 4 positions, and is suitable for surface mounting applications. The connector offers a maximum contact resistance of 20 milliohms and a minimum insulation resistance of 1000 megaohms, ensuring reliable electrical performance. Its durable build makes it ideal for computers and peripheral devices, providing high-quality, secure connectivity in various electronic systems.
MULTICOMP PRO MC32604 USB Connector Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 30V AC/DC
- Max. Contact Resistance: 20mΩ
- Min. Insulation Resistance: 1000MO
- Withstanding Voltage: 750V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: High-temperature plastic (LCP, UL94V-0), Brass
- Insulator Colour: Black
- Contact Plating: Gold on contact area, tin plated on solder tails, nickel plating
- Insertion Force Rating: 1 to 2kg/pe
- Withdrawal Force Rating: 2.0 kg/pe
- RoHS Compliant: Yes
- Connector Type: USB Type A, 4 ways, surface mount, right angle
- PCB Thickness: 1.2mm
- Dimensions: Millimetres, specific details in datasheet
- Part Number: MC32604
Buy the Multicomp MC32604 – Reliable USB Connector for Industrial Applications
Order the Multicomp MC32604 USB Type-A connector online today for a highly reliable, durable, and easy-to-install solution. Designed with a right angle surface mount configuration, this connector supports USB 2.0 standards, ensuring swift data transfer and stable connections. Crafted with gold-plated brass contacts and a high-temperature LCP insulator, it delivers excellent electrical performance in diverse environments. Whether used in computers, peripherals, or industrial systems, this connector offers preciseness, robustness, and compliance with RoHS standards, making it an essential component for professional electronic assemblies.
Buy Multicomp MC32604 now and experience unmatched reliability and high-performance USB connectivity for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32604?
You can click on the BUY or RFQ button to purchase MC32604 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32604?
You can download the MC32604 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32604?
MULTICOMP PRO
