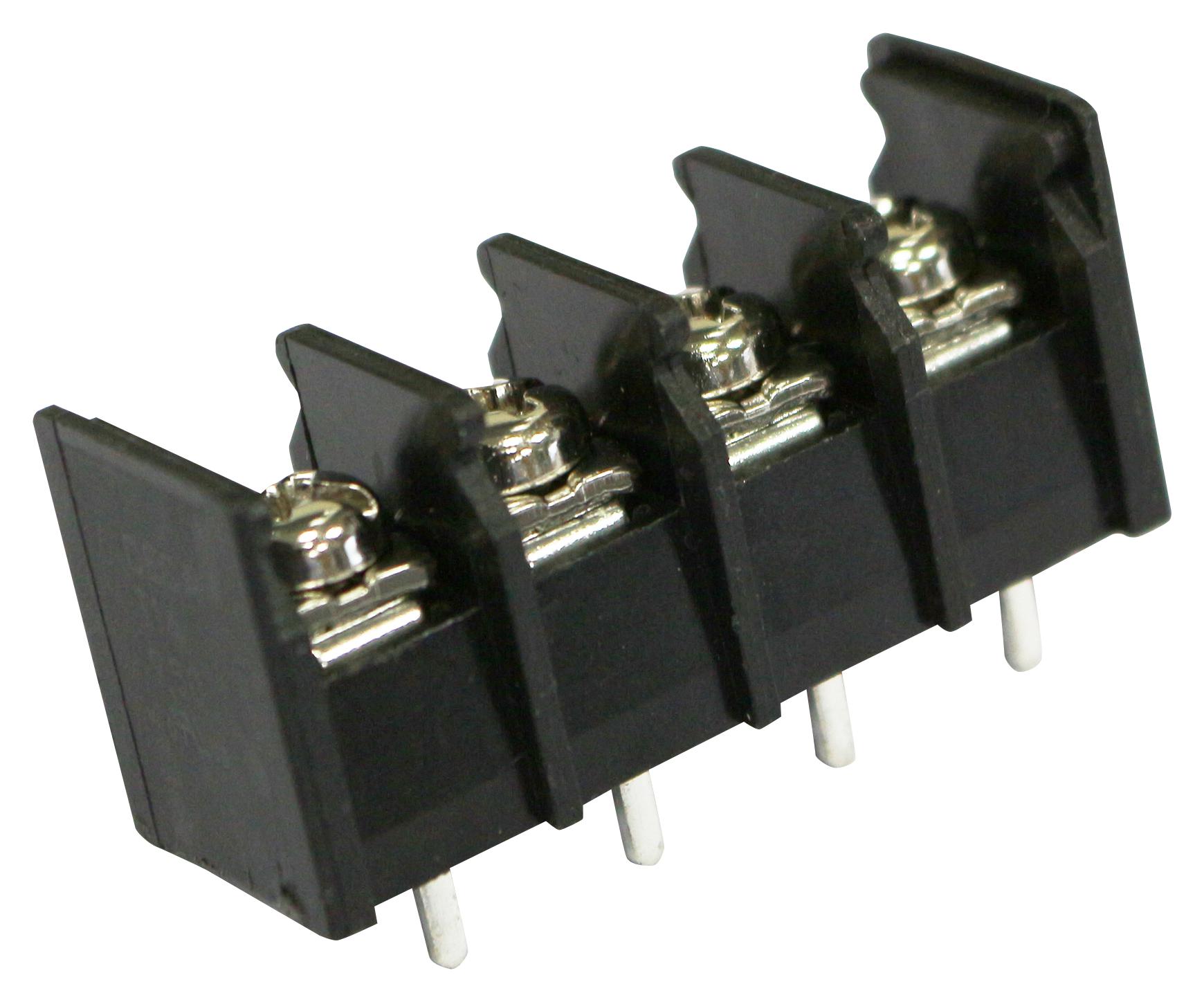

MULTICOMP PRO MC002078 Barrier Terminal Block
High-quality barrier terminal block with a 9.5mm pitch, suitable for professional and hobbyist electronic projects. Rated for 20A at 300V, it features a durable PBT insulating body with UL94V-0 flame rating, tin-plated brass terminals, and steel screws. Designed to withstand temperatures from -40°C to +120°C, it ensures reliable electrical connections. The product includes a cover and offers easy wire insertion for 12-22 AWG wire ranges. Its compact size and RoHS compliance make it ideal for various industrial and electronic applications requiring robust terminal connections.
MULTICOMP PRO MC002078 Barrier Terminal Block Specifications:
- Current Rating: 20 Amp AC300V
- Insulation withstands Volt: AC2000V min.
- Insulation Resistance: >2000MQ DC 500V
- Operation Temperature: -40°C to +120°C
- Wire Range: 12AWG to 22AWG
- Screw Torque: 12lb-inch
- Material: PBT (UL94V-0) insulative body, Brass tin plated terminals, Steel nickel plated screws
- Dimensions: Pitch 9.5mm, Poles 2, 3, 5, 7, 9 (length varies from 22mm to 88.5mm based on poles)
Buy the Multicomp Series Barrier Terminal Block: MC002078
Enhance your electronic projects with the reliable and durable barrier terminal block. This 9.5mm pitch connector rated for 20A/300V features a high-quality insulative PBT body, tin-plated brass terminals, and easy wire insertion for 12-22 AWG wires. Its robust construction withstands temperatures from -40°C to +120°C, making it ideal for industrial applications. The included cover ensures secure connections and safety. Easily order online and secure a dependable solution for your electrical connection needs with this versatile, RoHS-compliant terminal block.
Buy Multicomp barrier terminal block MC002078 now and experience unmatched reliability and performance for your electrical connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002078?
You can click on the BUY or RFQ button to purchase MC002078 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002078?
You can download the MC002078 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002078?
MULTICOMP PRO
