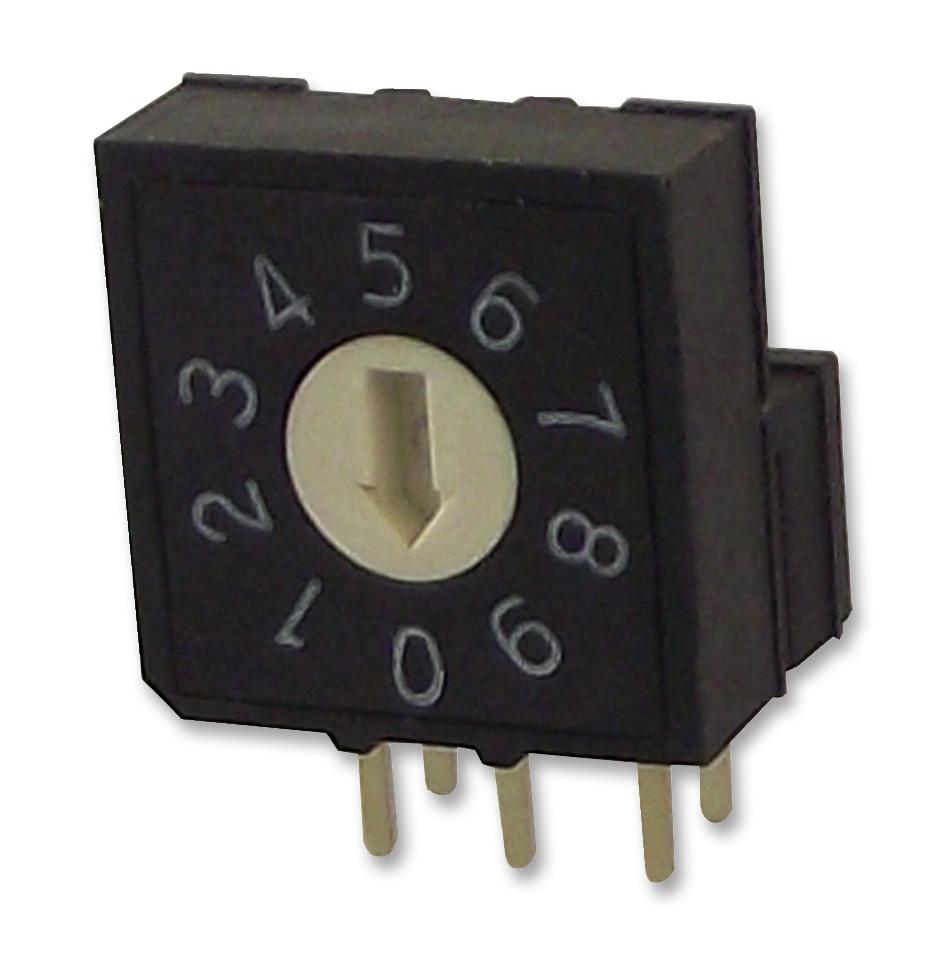

MULTICOMP PRO MCRV4AF10RVB Rotary Switch
The rotary switch series offers high durability with up to 20,000 switching cycles, suitable for industrial control applications. Crafted from UL94V-0 thermoplastic, these switches feature gold-plated contacts for reliable electrical connection, and are RoHS compliant. Available in various configurations including different pole and throw arrangements, these switches are rated for 100mA at 50V DC non-switching and 24V DC switching, with an operating temperature range from -25°C to +80°C. They are designed for easy hand or wave soldering, ensuring versatile installation options in electronic assemblies.
MULTICOMP PRO MCRV4AF10RVB Rotary Switch Specifications:
- Material: UL94V-0 High-temp thermoplastic
- Mechanical Life: 20,000 steps
- Operating Force: Max 200gf-cm
- Contact Material: Alloy Copper with Gold Plated over Nickel
- Electrical Life: 20,000 cycles
- Non-Switching Rating: 100mA, 50V DC
- Switching Rating: 24V DC, 25mA
- Contact Resistance: Max 100mΩ (initial), 200mΩ (final after test)
- Insulation Resistance: Min 100MQ at 250V DC
- Voltage Proof: 250V AC for 1 min
- Operating Temperature: -25°C to +80°C
- Storage Temperature: -40°C to +85°C
- RoHS Compliant
- Soldering: Hand, wave, or reflow with specified temperature limits
- Dimension tolerance: ±0.2mm
Buy the Buy Elementt4 Rotary Switch Part Number MCRV4AF10RVB Online
Experience the durability and reliability of the Elementt4 Rotary Switch MCRV4AF10RVB, engineered for industrial control and electronic projects. This switch offers up to 20,000 cycles, gold-plated contacts for minimal contact resistance, and a robust thermoplastic body. Its RoHS compliance ensures environmentally safe operation, while various soldering options provide installation flexibility. With a wide temperature range and high electrical ratings, it is ideal for demanding applications. Purchase online now to ensure precise, long-lasting control in your automation or control systems.
Get Elementt4 rotary switch MCRV4AF10RVB today—designed for reliable control and long-lasting operation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCRV4AF10RVB?
You can click on the BUY or RFQ button to purchase MCRV4AF10RVB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCRV4AF10RVB?
You can download the MCRV4AF10RVB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCRV4AF10RVB?
MULTICOMP PRO
