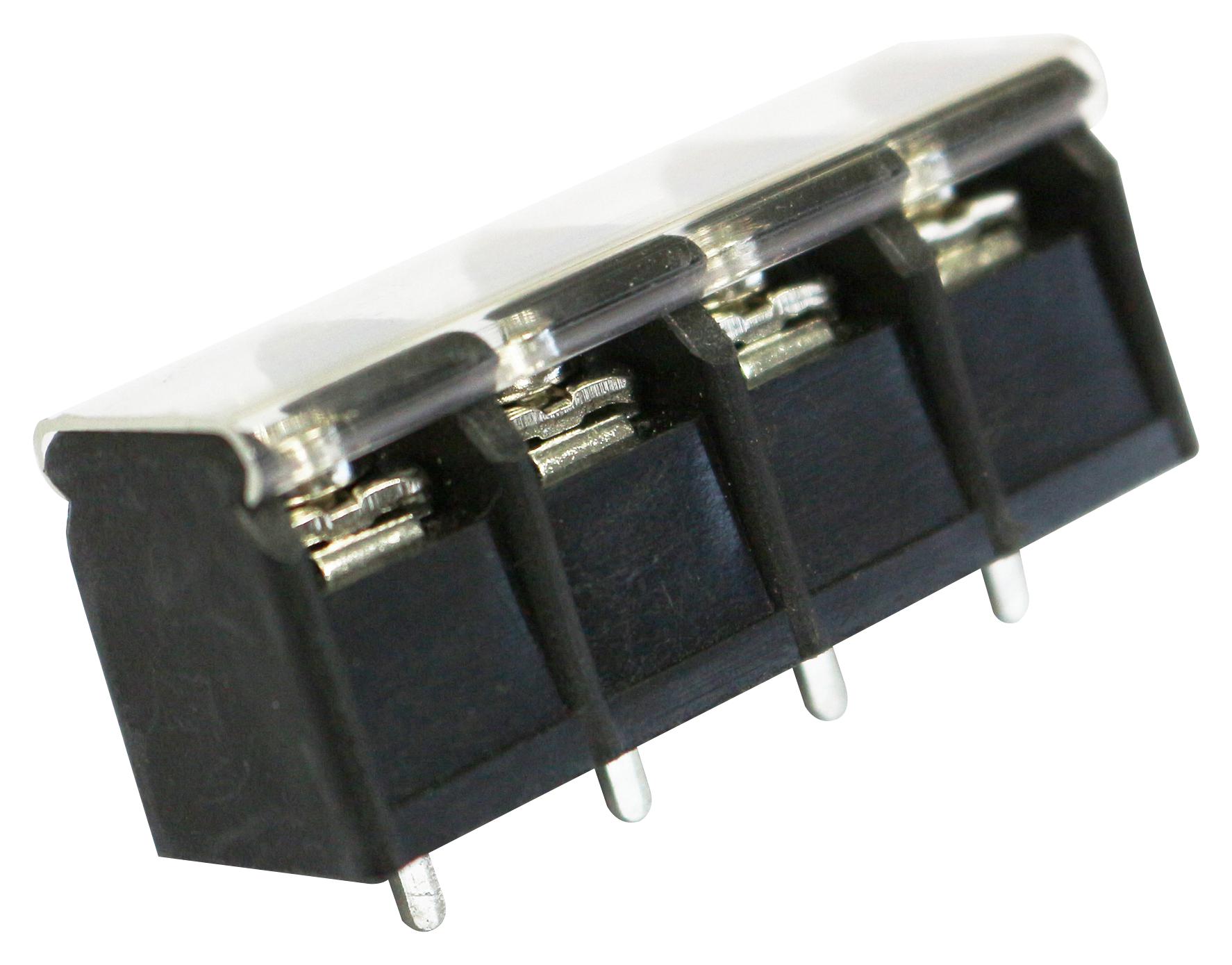

MULTICOMP PRO MC002084 Barrier Terminal Block
This barrier terminal block is designed for reliable wiring applications with 10mm pitch and 20A current rating. Made with a durable PBT insulating body and tin-plated brass terminals, it ensures secure connections at AC300V voltage. The terminal block features steel screws with Ni plating for longevity and a PVC cover for safety. With a operating temperature range of -40°C to +120°C, it supports wire ranges from 14AWG to 22AWG. The product is RoHS compliant, offering optimal performance in industrial wiring and control systems.
MULTICOMP PRO MC002084 Barrier Terminal Block Specifications:
- Current Rating: 20A
- Insulation withstands Volt: AC300V
- Insulation Resistance: >2000MQ
- Operation Temperature: -40°C to +120°C
- Wire Range: 14AWG to 22AWG
- Screw Torque: 16lb-inch
- Pitch: 10mm
- Material: PBT (UL94V-0) black insulator, brass tin-plated terminals, steel Ni-plated screws, PVC cover
- Poles: 2, 3, 5, 7, 9
- Dimensions: Length varies with pole number, approximately 21.8mm to 91.8mm
- RoHS Compliant
- Voltage Rating: AC300V
- Operating Temperature Range: -40°C to +120°C
Buy the Multicomp Series Barrier Terminal Block: MC002084
Order the Multicomp MC002084 barrier terminal block online today for dependable wiring connections in industrial and control systems. Featuring a 10mm pitch, 20A current rating, and a robust PBT insulating body, this terminal block ensures safety and durability. Equipped with tin-plated brass terminals and steel screws, it offers excellent electrical conductivity and longevity. The PVC cover adds additional protection, supporting operation within -40°C to +120°C. Easy to install, RoHS compliant, and suitable for wire ranges from 14AWG to 22AWG, making it an ideal choice for professional wiring applications.
Buy Multicomp MC002084 now and experience reliable, industrial-grade wiring solutions with durable construction and secure connections.
